Omron 150 mA Fixed Cable Bar code reader, 30 V dc
- RS Stock No.:
- 176-9337
- Mfr. Part No.:
- 7411-2102-1005
- Brand:
- Microscan
Stock information currently inaccessible
- RS Stock No.:
- 176-9337
- Mfr. Part No.:
- 7411-2102-1005
- Brand:
- Microscan
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microscan | |
| Device Type | Barcode Reader | |
| Connection Type | Cable | |
| Optical Technology | LED | |
| Reading Distance | 102mm | |
| Maximum Current | 150 mA | |
| Maximum DC Voltage | 30V | |
| Reader Style | Fixed | |
| Supply Voltage | 30 V dc | |
| Length | 38mm | |
| Width | 44.5mm | |
| Maximum Operating Temperature | +45°C | |
| Depth | 25.4mm | |
| Minimum Operating Temperature | 0°C | |
| Dimensions | 38 x 44.5 x 25.4 mm | |
| Select all | ||
|---|---|---|
Brand Microscan | ||
Device Type Barcode Reader | ||
Connection Type Cable | ||
Optical Technology LED | ||
Reading Distance 102mm | ||
Maximum Current 150 mA | ||
Maximum DC Voltage 30V | ||
Reader Style Fixed | ||
Supply Voltage 30 V dc | ||
Length 38mm | ||
Width 44.5mm | ||
Maximum Operating Temperature +45°C | ||
Depth 25.4mm | ||
Minimum Operating Temperature 0°C | ||
Dimensions 38 x 44.5 x 25.4 mm | ||

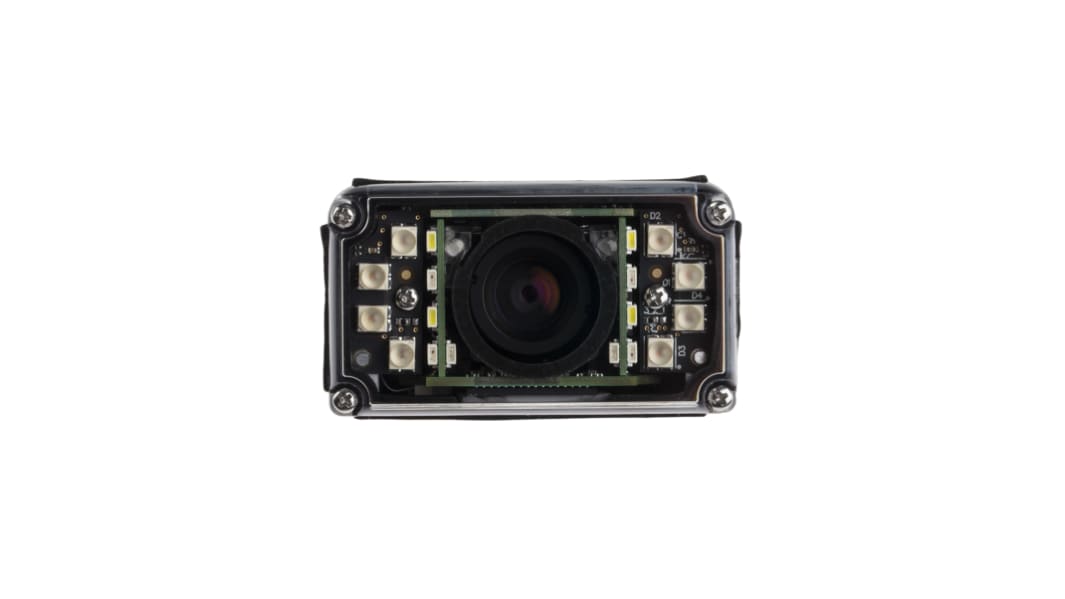

Microscan Bar code reader
The Microscan 150mA 30VDC bar code reader is a rugged and ultra-compact size device. The ID-40 has best-in-class decoding for 1D/2D or DPM codes and is a complete package for solving barcode reading challenges under any condition. This sets a benchmark as the ultimate compact imager in the industry.
Features and Benefits
• Compact in dimension 25mmx45mmx45mm
• Ethernet/IP, Ethernet TCP/IP, PROFINET I/O and RS 232 communication
• High-speed Ethernet serial
• Integrated targeting and read/pass indicators
• M12 12-pin power and M12 8-pin Ethernet connector
• Operating temperature ranges between 0°C and 45°C
• Optional liquid lens autofocus
• Reading distance 102mm
• TRIG, PASS, FAIL, MODE, LINK and PWR LEDs indicators on case
• Ultra-small form factor
• WebLink browser-based setup interface
• X-Mode advanced decoding algorithms
• Ethernet/IP, Ethernet TCP/IP, PROFINET I/O and RS 232 communication
• High-speed Ethernet serial
• Integrated targeting and read/pass indicators
• M12 12-pin power and M12 8-pin Ethernet connector
• Operating temperature ranges between 0°C and 45°C
• Optional liquid lens autofocus
• Reading distance 102mm
• TRIG, PASS, FAIL, MODE, LINK and PWR LEDs indicators on case
• Ultra-small form factor
• WebLink browser-based setup interface
• X-Mode advanced decoding algorithms
Applications
• Aerospace
• Automotive
• Electronics
• Life sciences
• Packaging
• Automotive
• Electronics
• Life sciences
• Packaging
Certifications
• CE certified
• EN 55022:2010
• FCC
• IP65 rated
• IP67 rated
• QMS
• UL listed
• EN 55022:2010
• FCC
• IP65 rated
• IP67 rated
• QMS
• UL listed
