MPN

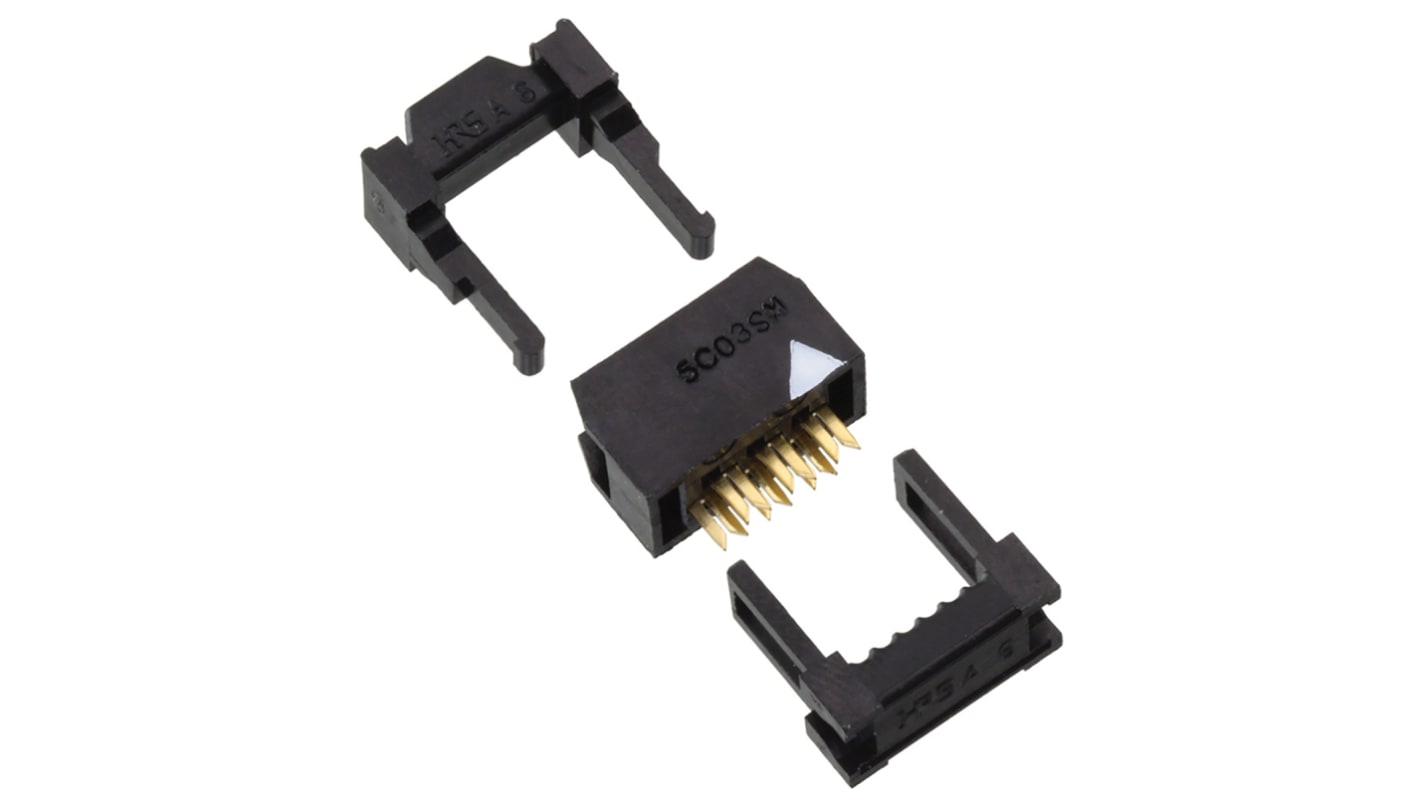

Hirose 6-Way IDC Connector Socket for Cable Mount, 2-Row

Name: Hirose 6-Way IDC Connector Socket for Cable Mount, 2-Row
Brand: Hirose
SKU: 896-0783
Price: 6.06 GBP
Availability: InStock

Bulk discount available

Subtotal (1 unit)*

£5.05

(exc. VAT)

£6.06

(inc. VAT)

Stock information currently inaccessible - Please check back later

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Hirose
	Number of Contacts	6
	Number of Rows	2
	Gender	Female
	Pitch	2.54mm
	Mounting Type	Cable Mount
	Body Orientation	Straight
	Termination Method	IDC
	Current Rating	1A
	Contact Plating	Gold
	Series	HIF3B
	Minimum Operating Temperature	-55.0°C
	Maximum Operating Temperature	85.0°C
	Voltage Rating	200.0 V ac
	Housing Material	PBT
	Contact Material	Beryllium Copper

	Select all
	Brand Hirose
	Number of Contacts 6
	Number of Rows 2
	Gender Female
	Pitch 2.54mm
	Mounting Type Cable Mount
	Body Orientation Straight
	Termination Method IDC
	Current Rating 1A
	Contact Plating Gold
	Series HIF3B
	Minimum Operating Temperature -55.0°C
	Maximum Operating Temperature 85.0°C
	Voltage Rating 200.0 V ac
	Housing Material PBT
	Contact Material Beryllium Copper
