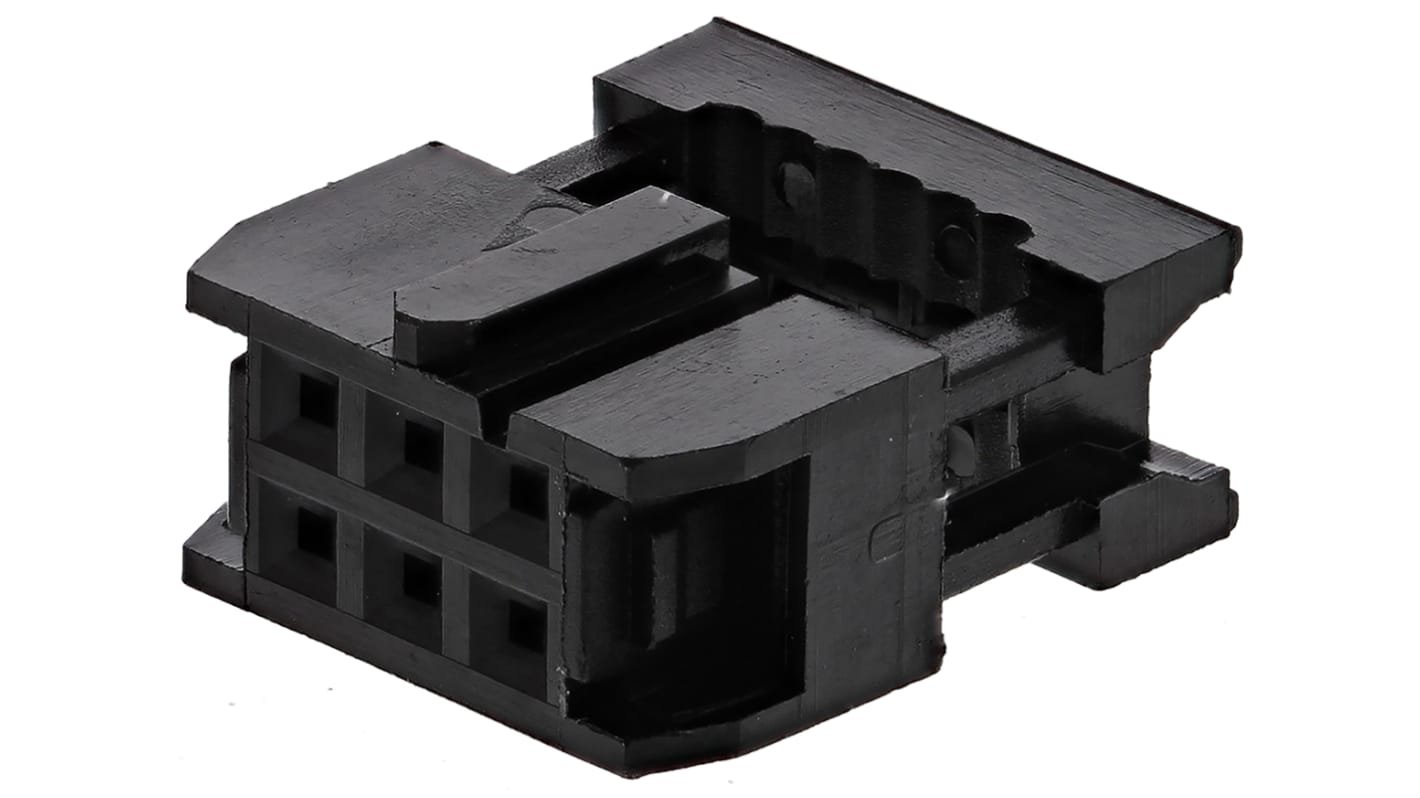

Amphenol ICC 6-Way IDC Connector Socket for Cable Mount, 2-Row
- RS Stock No.:
- 832-3613
- Mfr. Part No.:
- T812106A100CEU
- Brand:
- Amphenol ICC
Available to back order for despatch 25/04/2024
Added
Price Each
£1.27
(exc. VAT)
£1.52
(inc. VAT)
| Units | Per unit |
| 1 - 49 | £1.27 |
| 50 - 99 | £0.37 |
| 100 - 499 | £0.27 |
| 500 - 999 | £0.24 |
| 1000 + | £0.20 |
- RS Stock No.:
- 832-3613
- Mfr. Part No.:
- T812106A100CEU
- Brand:
- Amphenol ICC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Amphenol T812 Series 2.54mm IDC Ribbon Cable Socket Connector
T812 series IDC ribbon cable socket connectors with a 2.54mm pitch and 1.27mm lead pitch. These wire to board T812 2.54mm IDC ribbon cable connectors are made from black UL 94V-0 PBT, have gold flash plated IDC receptacle contacts and are available with or without a strain relief.
Part numbers T812-1-XX-XX-00-CEU - without strain relief
Part numbers T812-1-XX-XX-01-CEU - with strain relief
Part numbers T812-1-XX-XX-00-CEU - without strain relief
Part numbers T812-1-XX-XX-01-CEU - with strain relief
2.54mm Amphenol T812 Range
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 6 |
| Number of Rows | 2 |
| Gender | Female |
| Pitch | 2.54mm |
| Mounting Type | Cable Mount |
| Body Orientation | Straight |
| Termination Method | IDC |
| Current Rating | 3A |
| Contact Plating | Gold |
| Series | T812 |
| Minimum Operating Temperature | -40.0°C |
| Maximum Operating Temperature | 105.0°C |
| Voltage Rating | 250.0 V ac |
| Housing Material | PBT |
| Contact Material | Brass |
