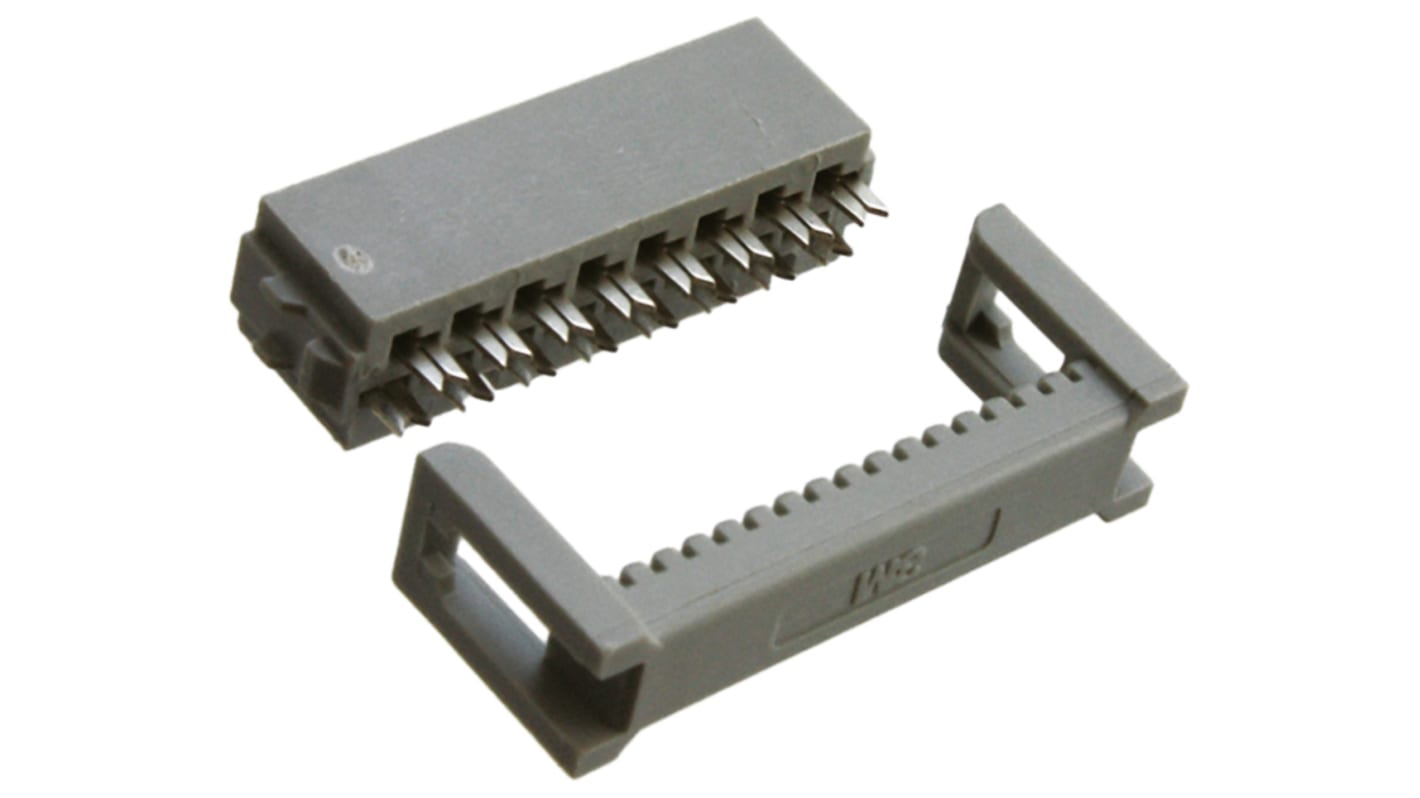

3M 16-Way IDC Connector Socket for Cable Mount, 2-Row
- RS Stock No.:
- 827-3590
- Mfr. Part No.:
- D89116-0031HK
- Brand:
- 3M
Discontinued
- RS Stock No.:
- 827-3590
- Mfr. Part No.:
- D89116-0031HK
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Gender | Female | |
| Pitch | 2.54mm | |
| Mounting Type | Cable Mount | |
| Body Orientation | Straight | |
| Termination Method | Crimp | |
| Current Rating | 1.25 A, 1.5 A | |
| Contact Plating | Gold over Nickel | |
| Series | D89 | |
| Minimum Operating Temperature | -55.0°C | |
| Maximum Operating Temperature | 105.0°C | |
| Contact Material | Brass | |
| Housing Material | Glass-Filled PET | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Gender Female | ||
Pitch 2.54mm | ||
Mounting Type Cable Mount | ||
Body Orientation Straight | ||
Termination Method Crimp | ||
Current Rating 1.25 A, 1.5 A | ||
Contact Plating Gold over Nickel | ||
Series D89 | ||
Minimum Operating Temperature -55.0°C | ||
Maximum Operating Temperature 105.0°C | ||
Contact Material Brass | ||
Housing Material Glass-Filled PET | ||
- COO (Country of Origin):
- US
Ribbon Cable Wire Mount Socket, D89 Series
The D89 series IDC ribbon cable sockets offer a pr-eassembled packaging on swards for easy loading of manual and semi-automatic assembly equipment. They have an optional double sided adhesive pull tab for easy unplugging and feature military polarization, with or without centerbump. They are suitable for many applications thanks to a wide temperature range of -55 to +105 °C.
