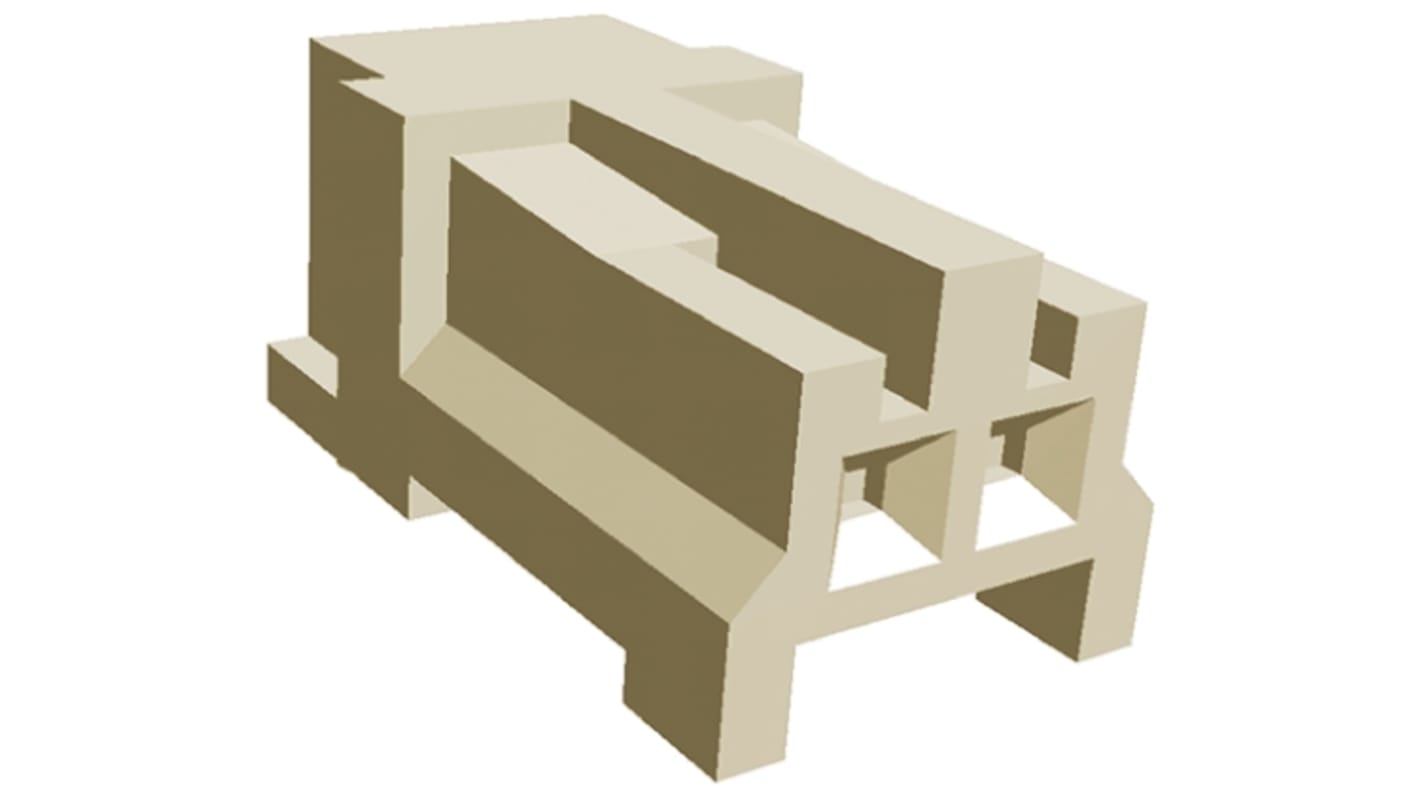

TE Connectivity 2-Way IDC Connector Socket for Cable Mount, 1-Row
- RS Stock No.:
- 719-5054P
- Mfr. Part No.:
- 172053-2
- Brand:
- TE Connectivity
Save 19% when you buy 500 units
Subtotal 50 units (supplied in a bag)*
£68.00
(exc. VAT)
£81.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5,785 unit(s) ready to ship
- Plus 999,994,210 unit(s) shipping from 25 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 - 120 | £1.36 |
| 125 - 245 | £1.26 |
| 250 - 495 | £1.176 |
| 500 + | £1.09 |
*price indicative
- RS Stock No.:
- 719-5054P
- Mfr. Part No.:
- 172053-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Gender | Female | |
| Pitch | 2.5mm | |
| Mounting Type | Cable Mount | |
| Body Orientation | Right Angle | |
| Termination Method | IDC | |
| Current Rating | 3.5A | |
| Contact Plating | Tin | |
| Series | MTEI | |
| Minimum Operating Temperature | -20.0°C | |
| Maximum Operating Temperature | 95.0°C | |
| Voltage Rating | 250.0 V ac, 350.0 V dc | |
| Contact Material | Phosphor Bronze | |
| Housing Material | Nylon | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Gender Female | ||
Pitch 2.5mm | ||
Mounting Type Cable Mount | ||
Body Orientation Right Angle | ||
Termination Method IDC | ||
Current Rating 3.5A | ||
Contact Plating Tin | ||
Series MTEI | ||
Minimum Operating Temperature -20.0°C | ||
Maximum Operating Temperature 95.0°C | ||
Voltage Rating 250.0 V ac, 350.0 V dc | ||
Contact Material Phosphor Bronze | ||
Housing Material Nylon | ||
Economy Interconnection Housings - MTEI Series
The Mass Termination Economy Interconnection series of connectors are wire-to-board connectors using IDC termination. The mass termination technique enables high density connection of wirings inside equipment.
2.5mm TE Connectivity Economy Interconnection (EI) System
