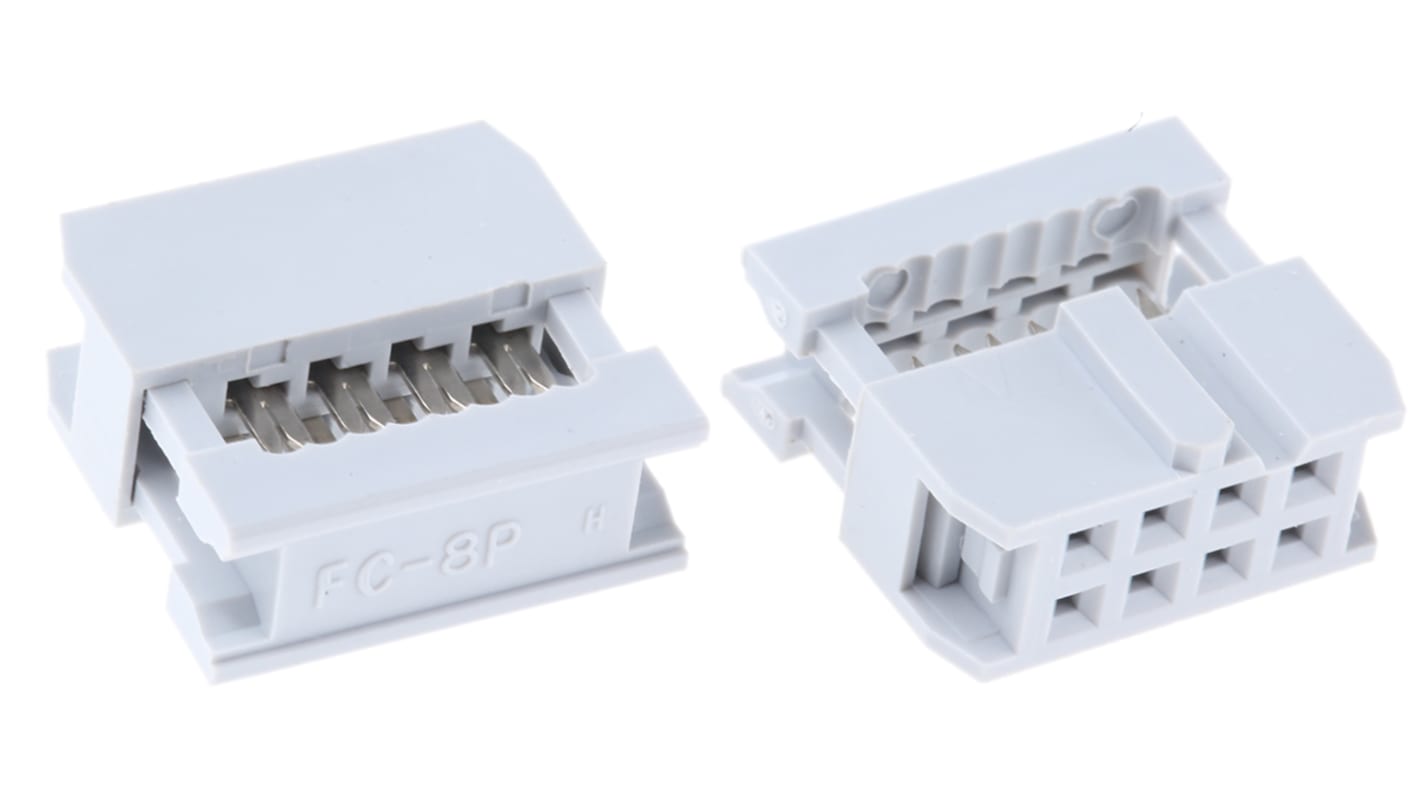

ASSMANN WSW 8-Way IDC Connector Female for Cable, 2 Row
- RS Stock No.:
- 674-1094
- Mfr. Part No.:
- AWP 08-7240-T
- Brand:
- ASSMANN WSW
Bulk discount available
Subtotal (1 pack of 5 units)*
£3.85
(exc. VAT)
£4.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 230 unit(s) shipping from 04 May 2026
- Plus 45 unit(s) shipping from 04 May 2026
- Plus 210 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 120 | £0.77 | £3.85 |
| 125 - 370 | £0.694 | £3.47 |
| 375 - 995 | £0.618 | £3.09 |
| 1000 - 1995 | £0.54 | £2.70 |
| 2000 + | £0.504 | £2.52 |
*price indicative
- RS Stock No.:
- 674-1094
- Mfr. Part No.:
- AWP 08-7240-T
- Brand:
- ASSMANN WSW
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ASSMANN WSW | |
| Number of Contacts | 8 | |
| Product Type | IDC Connector | |
| Number of Rows | 2 | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Connector Gender | Female | |
| Shrouded/Unshrouded | Shrouded | |
| Voltage | 250V ac | |
| Mount Type | Cable | |
| Orientation | Right Angle | |
| Contact Plating | Gold, Nickel | |
| Minimum Operating Temperature | -40°C | |
| Series | AWP | |
| Termination Type | IDC | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Contact Material | Brass | |
| Housing Material | Polybutylene Terephthalate | |
| Select all | ||
|---|---|---|
Brand ASSMANN WSW | ||
Number of Contacts 8 | ||
Product Type IDC Connector | ||
Number of Rows 2 | ||
Current 3A | ||
Pitch 2.54mm | ||
Connector Gender Female | ||
Shrouded/Unshrouded Shrouded | ||
Voltage 250V ac | ||
Mount Type Cable | ||
Orientation Right Angle | ||
Contact Plating Gold, Nickel | ||
Minimum Operating Temperature -40°C | ||
Series AWP | ||
Termination Type IDC | ||
Contact Gender Female | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Contact Material Brass | ||
Housing Material Polybutylene Terephthalate | ||
Assmann 2.54mm IDC Ribbon Cable Socket Connectors
Double row IDC ribbon cable socket connectors with a 2.54 x 2.54mm pitch. These female IDC ribbon cable connectors have a PBT UL94V-0 housing with central polarization and gold plated IDC socket contacts.
Assmann IDC Connectors
