RS PRO 14-Way IDC Connector Socket for Cable Mount, 2-Row
- RS Stock No.:
- 284-6514
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£1.46
(exc. VAT)
£1.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,319 unit(s) ready to ship
- Plus 237 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £1.46 |
5 - 9 | £1.35 |
10 + | £1.26 |
*price indicative
- RS Stock No.:
- 284-6514
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 14 | |
Number of Rows | 2 | |
Gender | Female | |
Pitch | 2.54mm | |
Mounting Type | Cable Mount | |
Body Orientation | Straight | |
Termination Method | IDC | |
Current Rating | 3A | |
Contact Plating | Gold over Nickel | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +105°C | |
Voltage Rating | 1000V ac | |
Housing Material | PBT | |
Contact Material | Phosphor Bronze | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 14 | ||
Number of Rows 2 | ||
Gender Female | ||
Pitch 2.54mm | ||
Mounting Type Cable Mount | ||
Body Orientation Straight | ||
Termination Method IDC | ||
Current Rating 3A | ||
Contact Plating Gold over Nickel | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Voltage Rating 1000V ac | ||
Housing Material PBT | ||
Contact Material Phosphor Bronze | ||
- COO (Country of Origin):
- CN

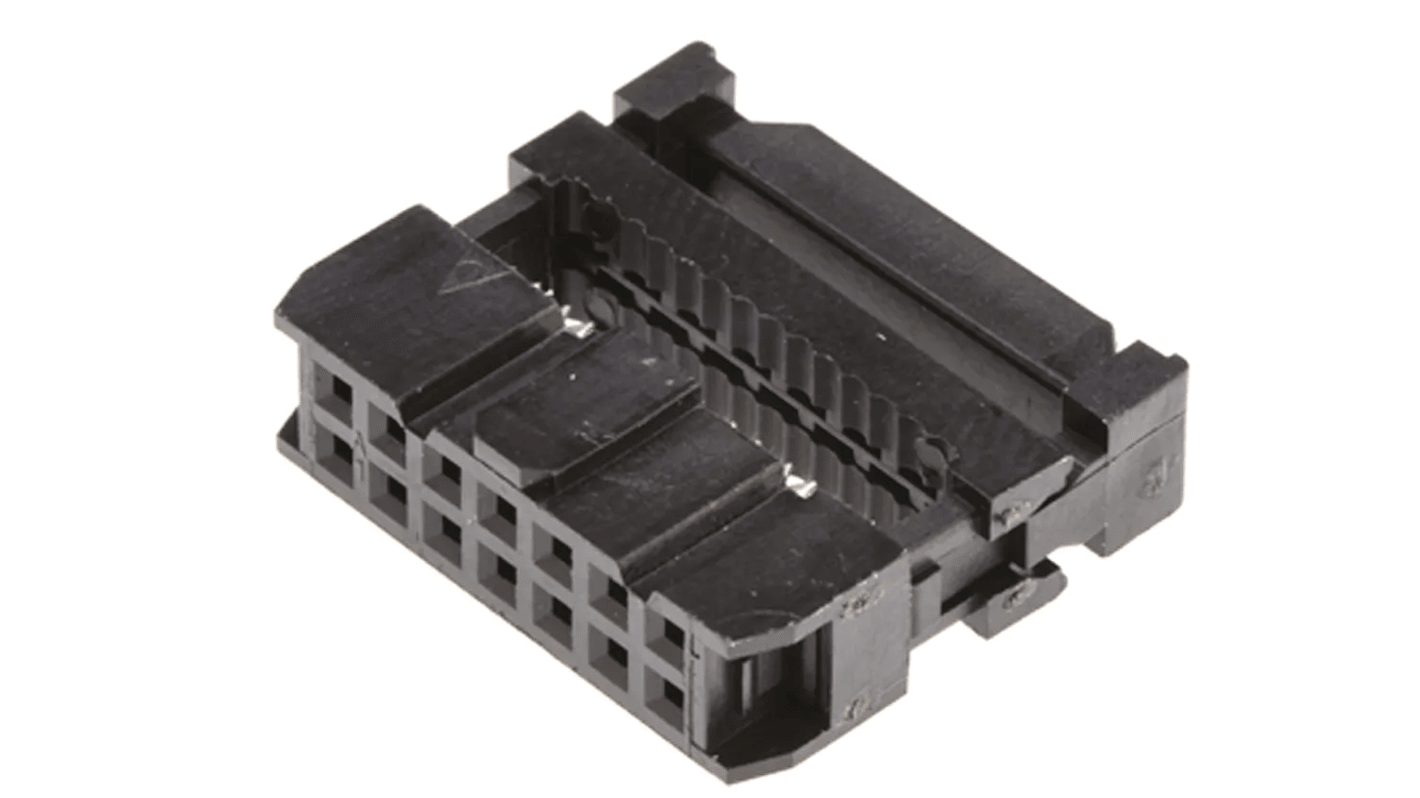

RS PRO Black 14 Way IDC Connector Jack
A low profile IDC connector jack for wire to board connections intended for use with flat ribbon cable. The IDC jack features a 2.54mm pitch providing stable connection and a polarising key design eliminating incorrect mating.
The 14 way IDC jack features 2 rows of contacts constructed from Phosphor Bronze providing excellent wear resistance protecting against breaks from repeated insertions and a Gold over Nickel plating for a high level of conductivity with a hardwearing PBT housing.
A durable and reliable connector jack ideally suited for use in computers connecting drives including CD drives and SSDs.
Features and Benefits
Black IDC connector jack
14 way/ 2 rows
Voltage rating of 1000 V ac
Suitable for 2.54mm pitch ribbon cable
Contact resistance of 20MΩ
Insulation resistance of 1000MΩ
Short latch ejection
Cable mount design (28AWG wire)
Dimensions of 22.35 x 7mm
