RS PRO 8-Way IDC Connector Plug for Cable Mount, 2-Row
- RS Stock No.:
- 284-6496
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£1.14
(exc. VAT)
£1.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 882 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £1.14 |
| 5 - 9 | £1.04 |
| 10 + | £0.93 |
*price indicative
- RS Stock No.:
- 284-6496
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 8 | |
| Number of Rows | 2 | |
| Gender | Male | |
| Pitch | 2.54mm | |
| Mounting Type | Cable Mount | |
| Body Orientation | Vertical | |
| Termination Method | IDC | |
| Current Rating | 1A | |
| Contact Plating | Tin over Nickel | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Voltage Rating | 500V | |
| Contact Material | Phosphor Bronze | |
| Housing Material | PBT | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 8 | ||
Number of Rows 2 | ||
Gender Male | ||
Pitch 2.54mm | ||
Mounting Type Cable Mount | ||
Body Orientation Vertical | ||
Termination Method IDC | ||
Current Rating 1A | ||
Contact Plating Tin over Nickel | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Voltage Rating 500V | ||
Contact Material Phosphor Bronze | ||
Housing Material PBT | ||
- COO (Country of Origin):
- CN

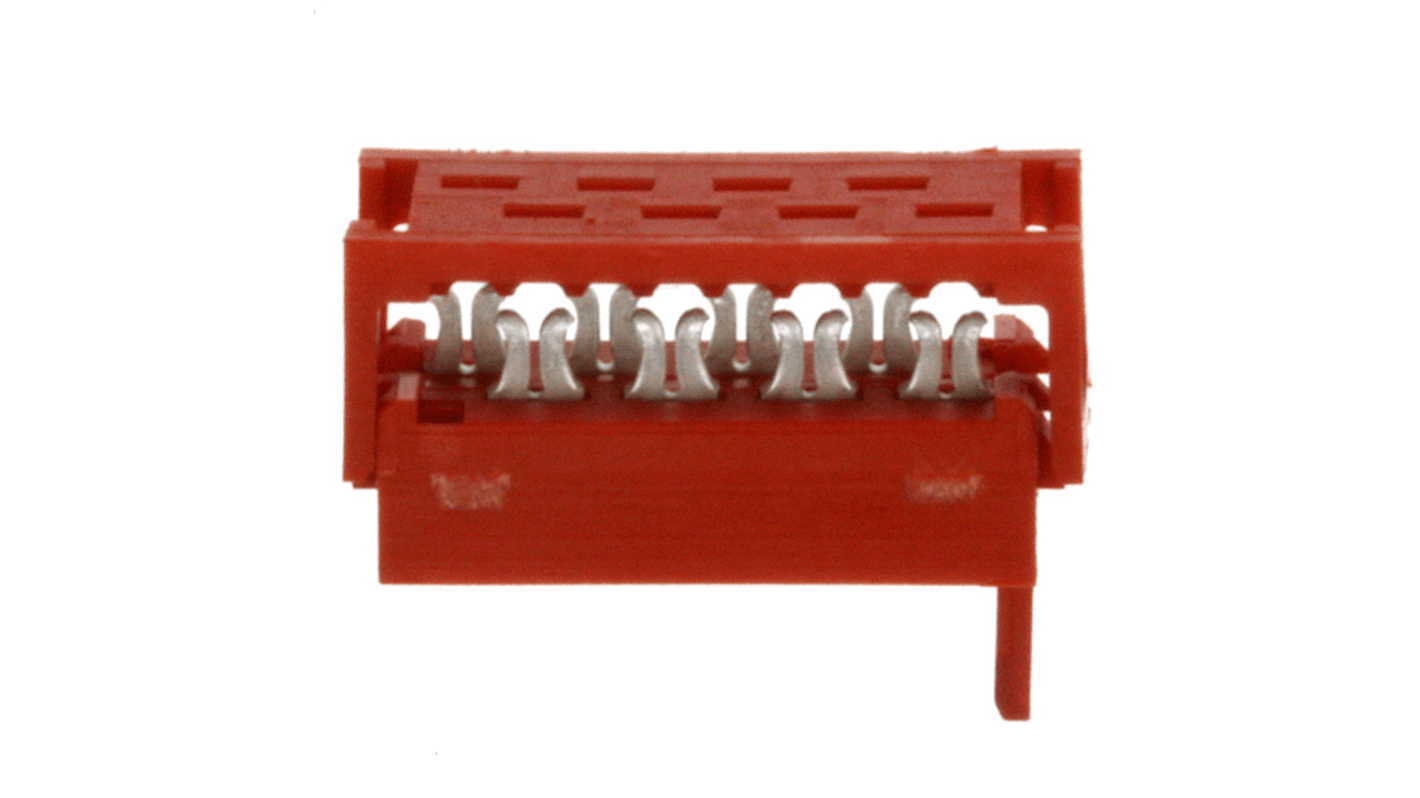

RS PRO Red 8 Way Micro IDC Connector Plug
A low profile IDC connector plug for wire to board or board to connections. The IDC plug headers and sockets feature a 2.54mm staggered pitch providing an enhanced connection and 1.27mm pitch ribbon cable connection.
The 8 way IDC plug features 2 rows of contacts constructed from Phosphor Bronze providing excellent wear resistance protecting against breaks from repeated insertions and a Tin over Nickel plating for a high level of conductivity with a hardwearing PBT housing.
Features and Benefits
Red IDC connector plug
8 way/ 2 rows
Voltage rating of 500V
2.54mm staggered pitch
Suitable for 1.27mm pitch ribbon cable
Contact resistance of 20MΩ
Insulation resistance of 1000MΩ
Short latch ejection
Cable mount design (28AWG wire)
Dimensions of 13.53 x 5mm
