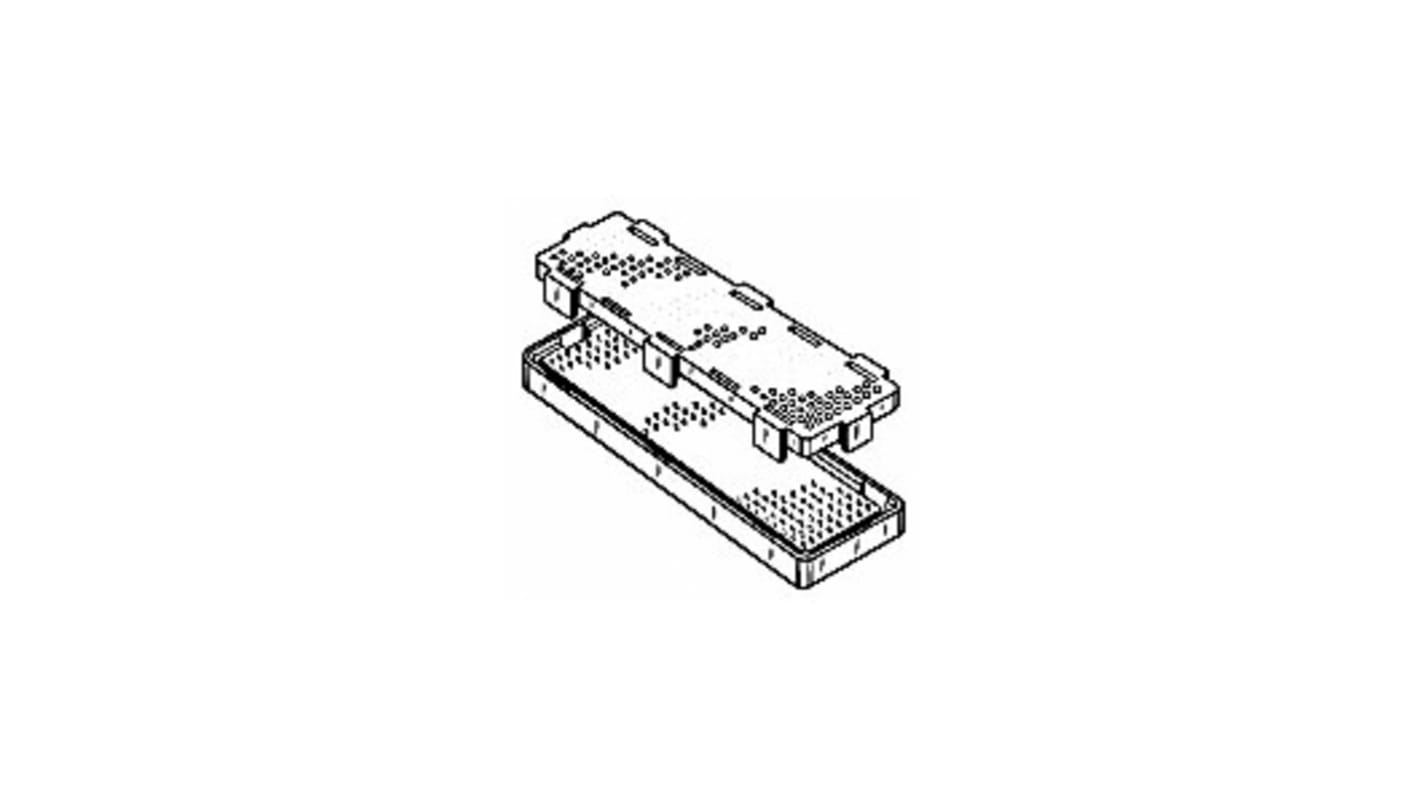

Amphenol Communications Solutions 100-Way IDC Connector Plug for Surface Mount, 10-Row
- RS Stock No.:
- 182-2937
- Mfr. Part No.:
- 84512-102LF
- Brand:
- Amphenol Communications Solutions
Subtotal (1 reel of 250 units)*
£3,454.75
(exc. VAT)
£4,145.75
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 250 unit(s), ready to ship
Units | Per unit | Per Reel* |
---|---|---|
250 + | £13.819 | £3,454.75 |
*price indicative
- RS Stock No.:
- 182-2937
- Mfr. Part No.:
- 84512-102LF
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Amphenol Communications Solutions | |
Number of Contacts | 100 | |
Number of Rows | 10 | |
Gender | Male | |
Pitch | 1.27mm | |
Mounting Type | Surface Mount | |
Termination Method | Solder | |
Current Rating | 450mA | |
Contact Plating | Gold | |
Series | Meg-Array | |
Minimum Operating Temperature | -40.0°C | |
Maximum Operating Temperature | 85.0°C | |
Voltage Rating | 200.0 V ac | |
Contact Material | Copper | |
Housing Material | LCP | |
Select all | ||
---|---|---|
Brand Amphenol Communications Solutions | ||
Number of Contacts 100 | ||
Number of Rows 10 | ||
Gender Male | ||
Pitch 1.27mm | ||
Mounting Type Surface Mount | ||
Termination Method Solder | ||
Current Rating 450mA | ||
Contact Plating Gold | ||
Series Meg-Array | ||
Minimum Operating Temperature -40.0°C | ||
Maximum Operating Temperature 85.0°C | ||
Voltage Rating 200.0 V ac | ||
Contact Material Copper | ||
Housing Material LCP | ||
- COO (Country of Origin):
- US
High density, high speed, discrete contact, array connector
Flexible ground distribution optimizes high speed signal integrity
10Gb/s differential pair performance with under 1% cross-talk
28Gb/s high speed performance documented for 4 mm and 6 mm stack height
Online s-parameter files and signal integrity performance reports improve design accuracy and time-to-market
1.27 mm x 1.27 mm grid provides 71 contacts per cm2 density to save space
Dual-point, long wipe contacts Wide range of sizes and PCB stack heights increase mechanical design flexibility
6 PCB Stack heights: 4 mm to 14mm
8 sizes: 81 to 528 positions Revolutionary, trusted BGA interconnect platform
High density standard BGA attachment lower assembly costs by using standard SMT processes
BGA natural surface tension provides self-alignment and self-leveling for multiple connector usage
Patented BGA contact attachment preserves solder ball positioning
Optimized PCB routing enhances electrical performance ball positioning Quality and Reliability
Time-tested reliability record includes Telcordia GR-1217-CORE and NPS-25298-2 options
Flexible ground distribution optimizes high speed signal integrity
10Gb/s differential pair performance with under 1% cross-talk
28Gb/s high speed performance documented for 4 mm and 6 mm stack height
Online s-parameter files and signal integrity performance reports improve design accuracy and time-to-market
1.27 mm x 1.27 mm grid provides 71 contacts per cm2 density to save space
Dual-point, long wipe contacts Wide range of sizes and PCB stack heights increase mechanical design flexibility
6 PCB Stack heights: 4 mm to 14mm
8 sizes: 81 to 528 positions Revolutionary, trusted BGA interconnect platform
High density standard BGA attachment lower assembly costs by using standard SMT processes
BGA natural surface tension provides self-alignment and self-leveling for multiple connector usage
Patented BGA contact attachment preserves solder ball positioning
Optimized PCB routing enhances electrical performance ball positioning Quality and Reliability
Time-tested reliability record includes Telcordia GR-1217-CORE and NPS-25298-2 options
100 Position BGA Plug, 0 mm Component Height, 1.27 mm x 1.27 mm Array, Lead-free
