Molex 5-Way IDC Connector Socket for Cable Mount, 1-Row
- RS Stock No.:
- 179-0538
- Mfr. Part No.:
- 15-47-4053
- Brand:
- Molex
390 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£1.686
(exc. VAT)
£2.023
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | £1.686 | £8.43 |
| 25 - 45 | £1.552 | £7.76 |
| 50 + | £1.438 | £7.19 |
| *price indicative | ||
- RS Stock No.:
- 179-0538
- Mfr. Part No.:
- 15-47-4053
- Brand:
- Molex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

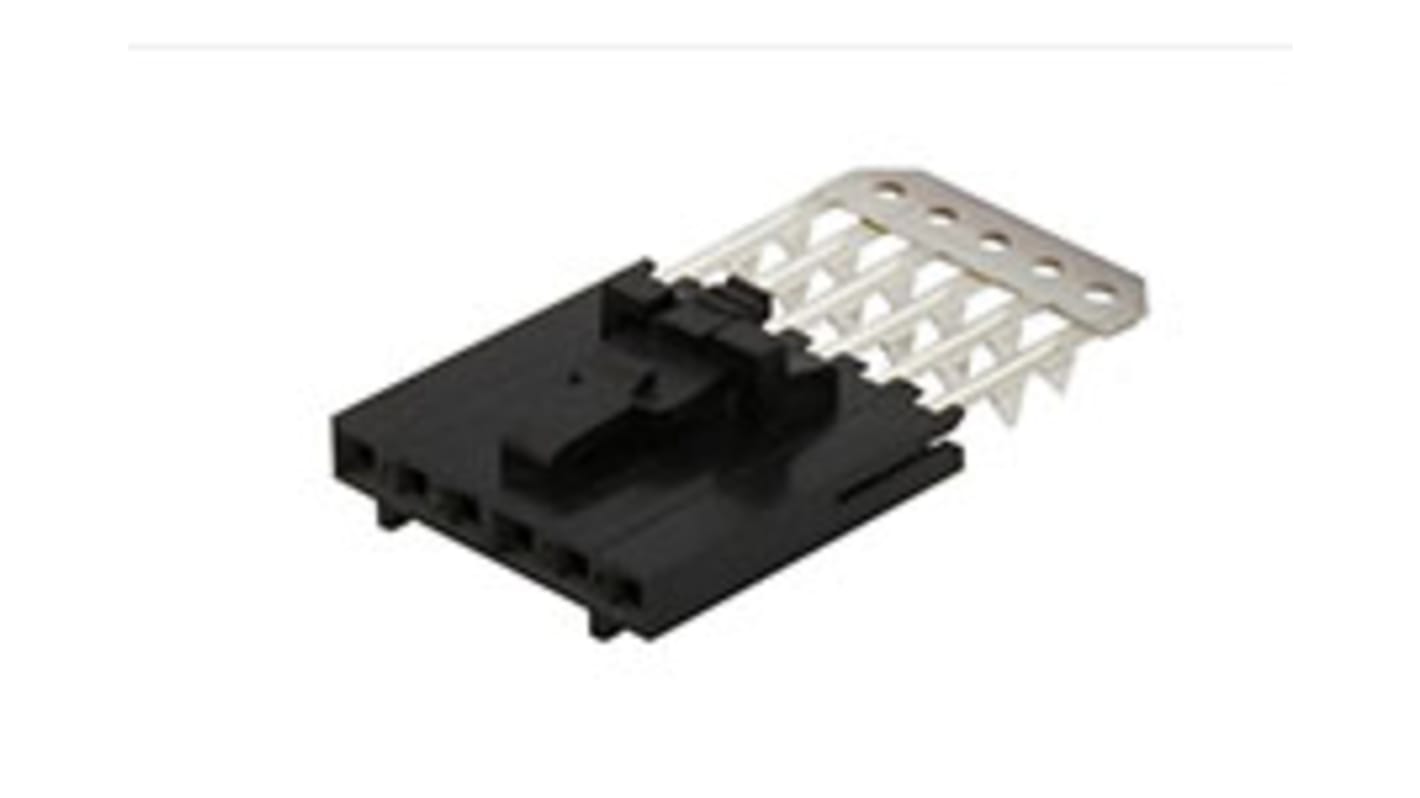

Molex IDC Connector
The Molex 70430 series vertical IDC connector is female cable mount that has SL single row 5 way, version G receptacle. The housing of this connector is made from polyester and the contact material is made from phosphor bronze with gold plating. It is available in black colour.
Features and Benefits
• Current rating is 2A
• Operating temperature ranges between -40°C and 105°C
• Voltage rating is 250V
• Operating temperature ranges between -40°C and 105°C
• Voltage rating is 250V
Applications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• UL 94 V-0
• BS EN 61340-5-1:2007
• UL 94 V-0
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 5 |
| Number of Rows | 1 |
| Gender | Female |
| Pitch | 2.54mm |
| Mounting Type | Cable Mount |
| Body Orientation | Straight |
| Termination Method | Solder |
| Current Rating | 1, 2 |
| Contact Plating | Gold, Tin |
| Series | SL |
| Minimum Operating Temperature | -40.0°C |
| Maximum Operating Temperature | 105.0°C |
| Voltage Rating | 250.0 V ac |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
