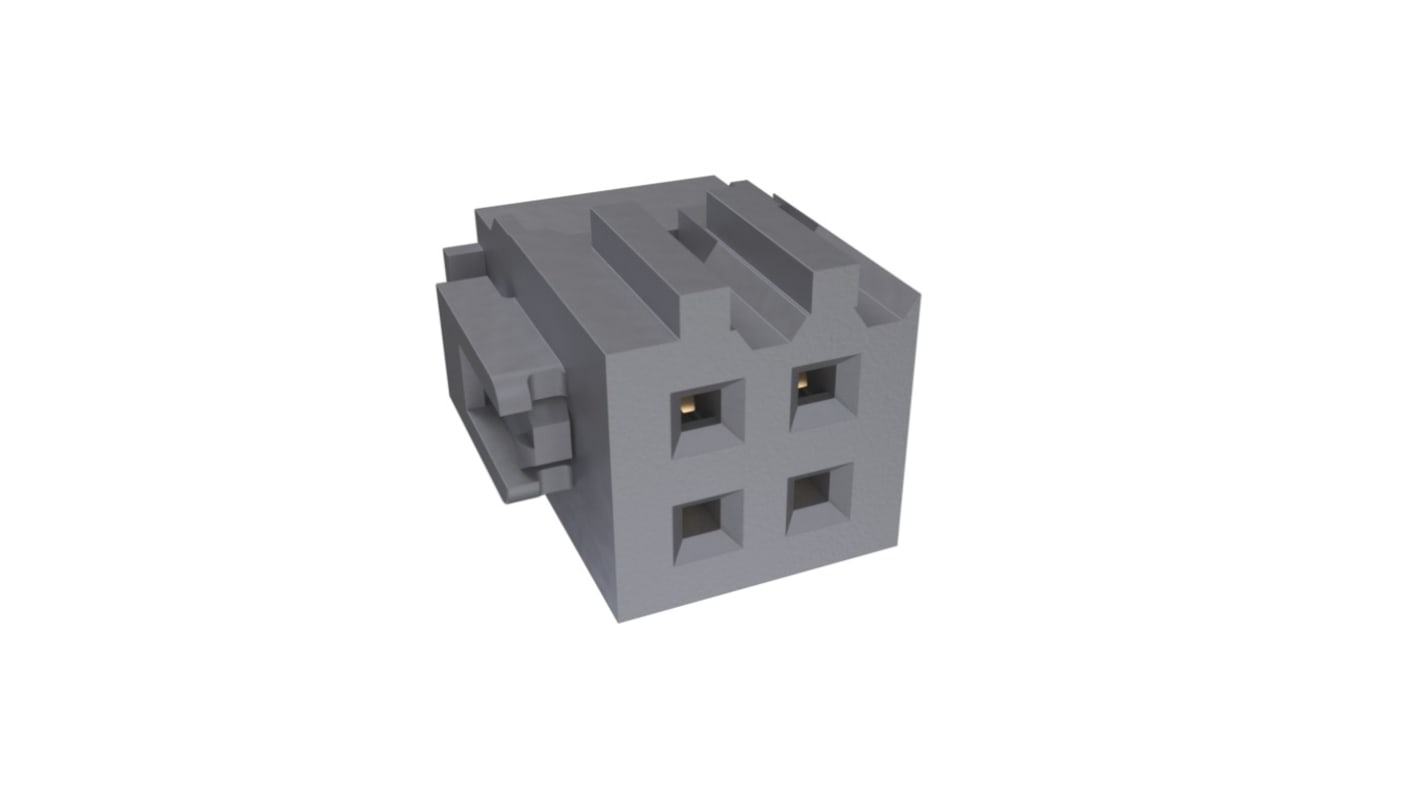

Amphenol Communications Solutions 4-Way IDC Connector Socket for Cable Mount, 2-Row
- RS Stock No.:
- 137-0974
- Mfr. Part No.:
- 71600-104LF
- Brand:
- Amphenol Communications Solutions
470 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£0.608
(exc. VAT)
£0.73
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 45 | £0.608 | £3.04 |
| 50 - 120 | £0.446 | £2.23 |
| 125 - 245 | £0.428 | £2.14 |
| 250 - 495 | £0.40 | £2.00 |
| 500 + | £0.374 | £1.87 |
| *price indicative | ||
- RS Stock No.:
- 137-0974
- Mfr. Part No.:
- 71600-104LF
- Brand:
- Amphenol Communications Solutions
Legislation and Compliance
Product Details
Amphenol FCI Quickie 2.54 mm IDC Receptacle Connectors
Quickie series 2.54 mm IDC receptacle connectors for use with flat flexible cable with a wire size range of 30 AWG to 26 AWG. These IDC receptacle connectors consist of a pre-loaded adjustable bridge type cover. This cover protects the contacts and provides an accurate cover-to-base alignment that ensures a reliable termination. The cover and base assembly lock together enabling easy cable assembly. The IDC terminals have a long wiping action for a reliable electrical performance. Duplex plating on the terminals guarantees a performance of 100 mating cycles. The housings of these IDC receptacle connectors feature polarization slots and keying for accurate alignment prevention of mismating.
Part numbers 71600-0XXXX feature a strain relief and mate with 71918-1XXXX 71922-1XXXX shrouded latched headers
Part numbers 71600-1XXXX mate with 71918-2XXXX 71922-2XXXX shrouded latched headers
Part numbers 71600-6XXXX mate with 75869-XXXXX and 75867-XXXXX low profile headers
Features and Benefits
• Adjustable bridge type cover for simple cable assembly
• IDC terminals for quick cable termination
• Long wiping action for good electrical contact
• Duplex plating guarantees a performance of 100 mating cycles
• Polarization slots to prevent mismating
• IDC terminals for quick cable termination
• Long wiping action for good electrical contact
• Duplex plating guarantees a performance of 100 mating cycles
• Polarization slots to prevent mismating
Product Application Information
These Quickie 2.54 mm IDC connectors are suitable for use in applications in a wide range of markets. These markets include industrial, instrumentation, medical markets, consumer, communications and data
Note
For mating Quickie Latch Headers see stock number 771-0066 typical.
2.54mm Amphenol FCI Quickie Interconnection System
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 4 |
| Number of Rows | 2 |
| Gender | Female |
| Pitch | 2.54mm |
| Mounting Type | Cable Mount |
| Body Orientation | Straight |
| Termination Method | IDC |
| Current Rating | 1A |
| Contact Plating | Gold |
| Series | Quickie |
| Minimum Operating Temperature | -65.0°C |
| Maximum Operating Temperature | 105.0°C |
| Voltage Rating | 1.0 kV ac |
| Contact Material | Phosphor Bronze |
| Housing Material | Glass Filled Thermoplastic |
