- RS Stock No.:
- 121-0393
- Mfr. Part No.:
- 4610-6051
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Number of Contacts | 10 | |
| Number of Rows | 2 | |
| Pitch | 2.54mm | |
| Mounting Type | Cable Mount | |
| Body Orientation | Right Angle | |
| Termination Method | IDC | |
| Current Rating | 1A | |
| Contact Plating | Gold | |
| Series | 4600 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
| Voltage Rating | 125 V | |
| Contact Material | Copper | |
| Housing Material | PBT | |
Select all | ||
|---|---|---|
Brand 3M | ||
Number of Contacts 10 | ||
Number of Rows 2 | ||
Pitch 2.54mm | ||
Mounting Type Cable Mount | ||
Body Orientation Right Angle | ||
Termination Method IDC | ||
Current Rating 1A | ||
Contact Plating Gold | ||
Series 4600 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105°C | ||
Voltage Rating 125 V | ||
Contact Material Copper | ||
Housing Material PBT | ||
3M 2.54 x 2.54mm 4600 Series Cable Mount IDC Plugs
2.54 x 2.54mm 4600 series cable mount IDC plugs for use with flat ribbon cable or discrete wire with a wire size range of 26 and 28 AWG (solid and stranded). These 4600 series 2.54mm cable mount IDC plug connectors have a shrouded design for pin protection and open end covers that enable daisy chaining and bussing. Various polarization options are available for these 2.54mm 4600 series IDC ribbon cable plugs, please refer to datasheet on our website for details.
Part numbers 46XX-XXX0 have slotted mounting flanges.
Part numbers 46XX-X2X0 are supplied with short ejector latches
Part numbers 46XX-X3X0 are supplied withlong ejector latches
Ejector latches are also available separately (non-flanged versions only) see stock nos. 483-4431 (short) and 483-4447 (long)
Strain reliefs are also available see stock number 838-1492 typically.
Part numbers 46XX-XXX0 have slotted mounting flanges.
Part numbers 46XX-X2X0 are supplied with short ejector latches
Part numbers 46XX-X3X0 are supplied withlong ejector latches
Ejector latches are also available separately (non-flanged versions only) see stock nos. 483-4431 (short) and 483-4447 (long)
Strain reliefs are also available see stock number 838-1492 typically.
Note

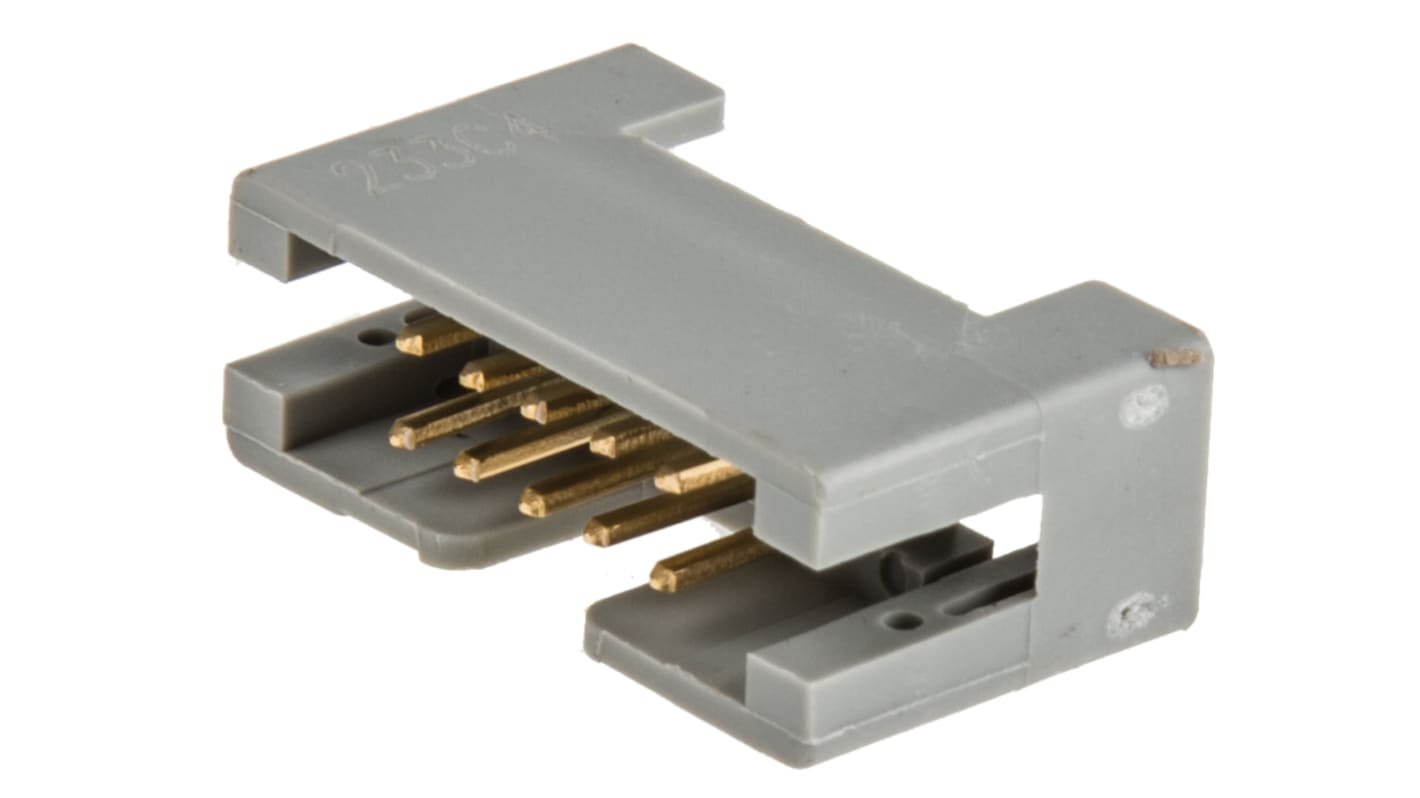

3M IDC Connector, 10 Way, 2 Rows - 4600 Series - 4610-6051
Make easy connections with ribbon cable using this IDC (insulation-displacement contact) connector from 3M. The shrouded design protects the pins against physical or chemical damage, while open end covers allow easy daisy-chaining and bussing. The unit's suitable for use with either flat ribbon cable or separate solid or stranded wires sized between 28 and 26AWG, offering you versatility when building your system. The right-angled body orientation helps save space in compact setups.
• Glass-filled polybutylene terephthalate (PBT) insulator combines strength with excellent dielectric properties
• Gold-plated copper contacts offer excellent conductivity for accurate transmission of the signal
• Optional metal strain relief helps prolong the life of the cable assembly
• Operating temperature range of -55ºC to +105ºC makes it suitable for extreme conditions
• UL 94V-0 flammability rating means it's self-extinguishing in the event of a fire
• Gold-plated copper contacts offer excellent conductivity for accurate transmission of the signal
• Optional metal strain relief helps prolong the life of the cable assembly
• Operating temperature range of -55ºC to +105ºC makes it suitable for extreme conditions
• UL 94V-0 flammability rating means it's self-extinguishing in the event of a fire
Applications
• Telecommunications
• Solid state drives
• Computer systems
• Solid state drives
• Computer systems
What advantages do IDC connectors offer over traditional crimping methods?
The main advantage IDC connectors offer over traditional crimping methods is their speed of installation. They use a blade to pierce the insulation material and make the connection, meaning wires don't need to be stripped.
