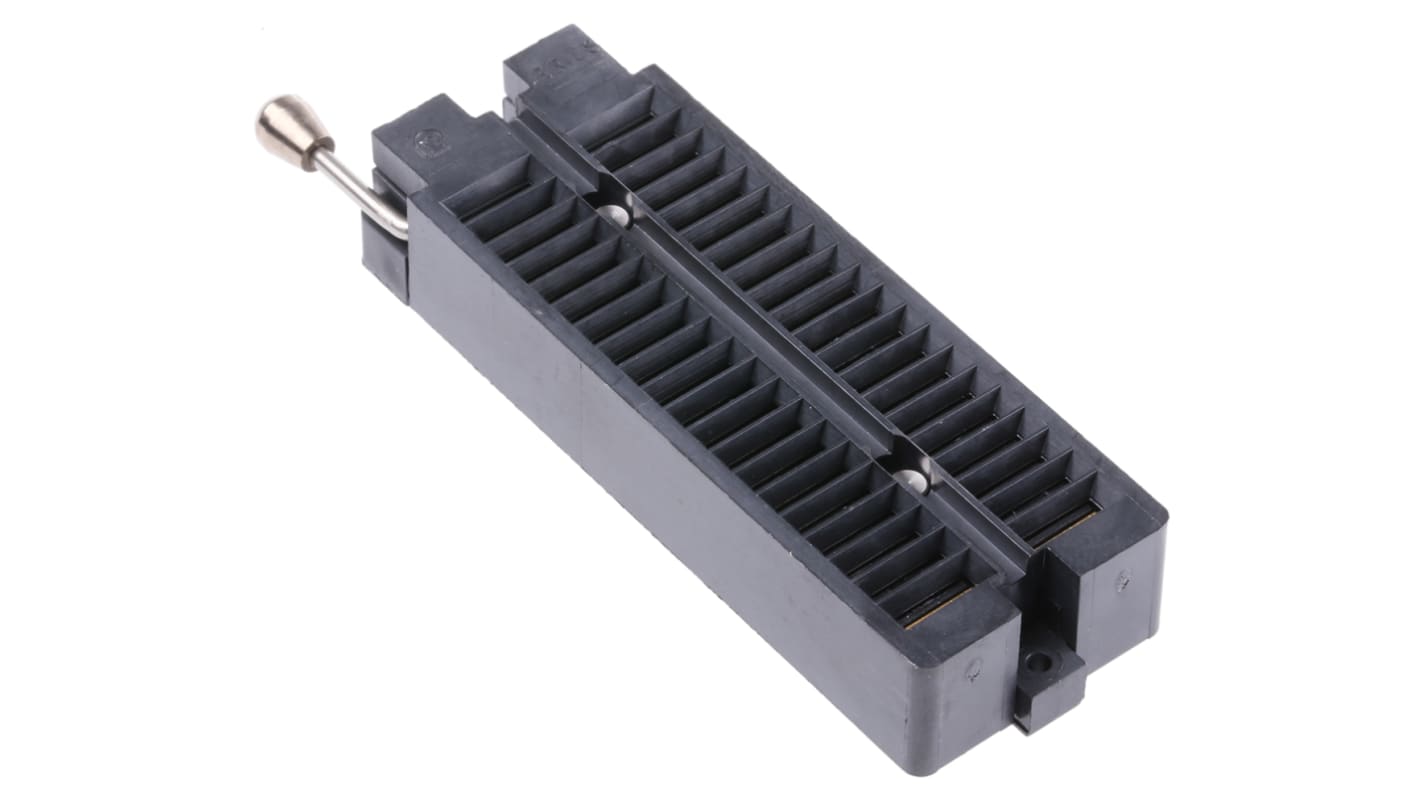

Aries Electronics 2.54mm Pitch 40 Way Through Hole Universal ZIF Test Socket
- RS Stock No.:
- 710-6697
- Mfr. Part No.:
- 40-6554-11
- Brand:
- Aries Electronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 710-6697
- Mfr. Part No.:
- 40-6554-11
- Brand:
- Aries Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aries Electronics | |
| Gender | Female | |
| Number of Contacts | 40 | |
| Number of Rows | 2 | |
| Pitch | 2.54mm | |
| Body Orientation | Straight | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold over Nickel | |
| Current Rating | 1A | |
| Socket Mounting Type | Through Hole | |
| Termination Method | Solder | |
| Housing Material | PPS | |
Select all | ||
|---|---|---|
Brand Aries Electronics | ||
Gender Female | ||
Number of Contacts 40 | ||
Number of Rows 2 | ||
Pitch 2.54mm | ||
Body Orientation Straight | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold over Nickel | ||
Current Rating 1A | ||
Socket Mounting Type Through Hole | ||
Termination Method Solder | ||
Housing Material PPS | ||
- COO (Country of Origin):
- US
Series X55X Universal Zero-Insertion-Force DIP Test Socket
Aries universal test socket accepts devices on 7.62 to 15.24 mm centers. All pin count sockets go on to PCB with either 7.62 to 15.24 mm centers. Contacts are normally closed to eliminate dependence on plastic to sustain contact. Socket handle can be configured with closed contacts (on) when in the up or down position, and can be mounted on either the right or left side. Sockets can be solderd onto PCB boards or plugged into any socket.
Socket body is black UL 94V-0 glass-filled polyphenylene sulfide (PPS)
Handel is made of stainless steel
Life cycle 25000 to 50000 cycles
Handel is made of stainless steel
Life cycle 25000 to 50000 cycles
