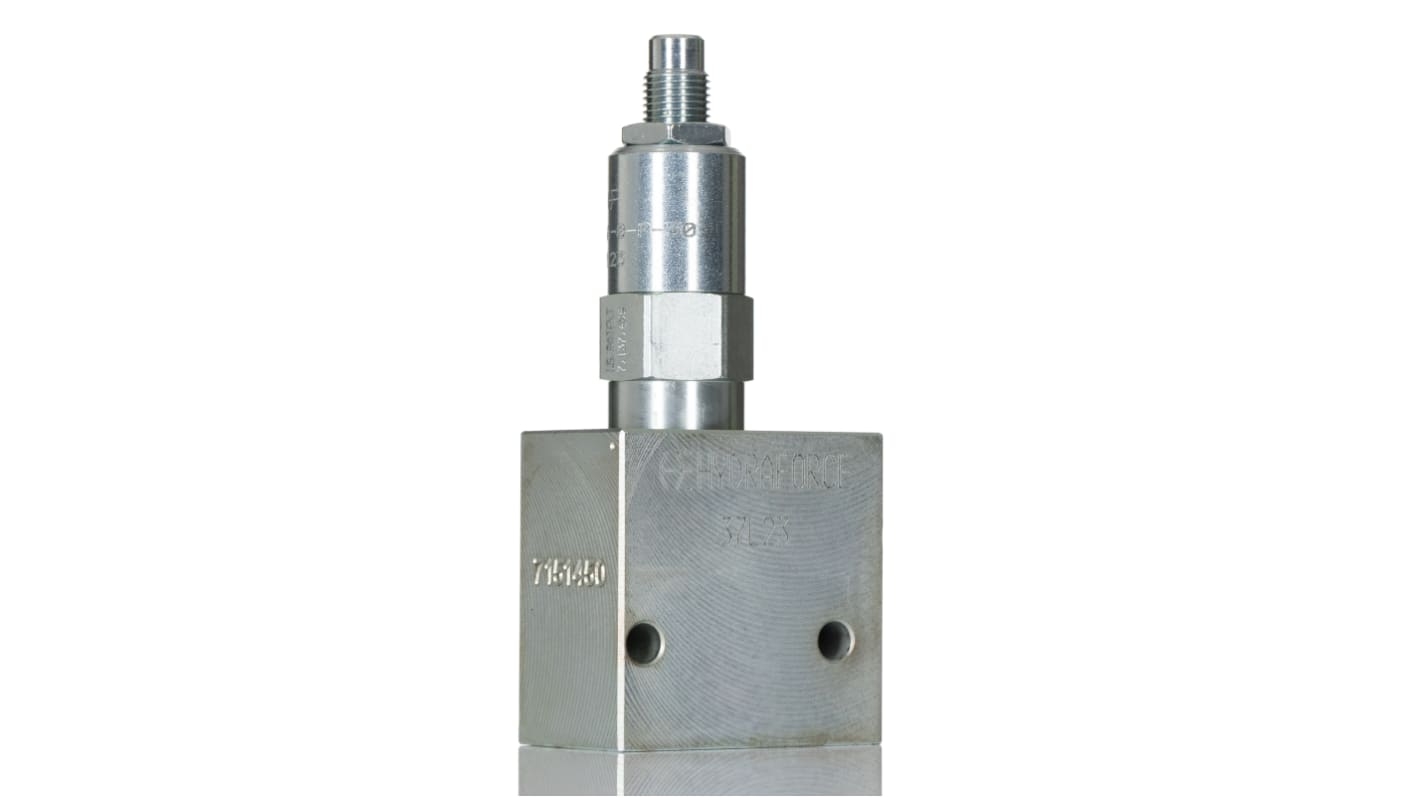

HydraForce In Line Mount Mounting Hydraulic Relief Valve, RV50-26A-4BD-P-50, BSP, SAE, 345 bar
- RS Stock No.:
- 198-5237
- Mfr. Part No.:
- RV50-26A-4BD-P-50
- Brand:
- HydraForce
Subtotal (1 unit)*
£132.47
(exc. VAT)
£158.96
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
- Plus 3 unit(s) shipping from 19 June 2026
- Plus 3 unit(s) shipping from 14 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £132.47 |
*price indicative
- RS Stock No.:
- 198-5237
- Mfr. Part No.:
- RV50-26A-4BD-P-50
- Brand:
- HydraForce
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HydraForce | |
| Product Type | Hydraulic Relief Valve | |
| Port Size | 1/2 in | |
| Mount Type | In Line Mount | |
| Connection Thread Standard | BSP, SAE | |
| Seal Material | Urethane, Polyurethane, Fluorocarbon | |
| Series | RV50-26 | |
| Maximum Operating Pressure | 345 bar | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Body Material | Iron | |
| Port Gender | Male | |
| Length | 116.6mm | |
| Standards/Approvals | RoHS | |
| Maximum Flow Rate | 113.6L/min | |
| Pressure Setting Range | 20.7 to 344.7 bar | |
| Select all | ||
|---|---|---|
Brand HydraForce | ||
Product Type Hydraulic Relief Valve | ||
Port Size 1/2 in | ||
Mount Type In Line Mount | ||
Connection Thread Standard BSP, SAE | ||
Seal Material Urethane, Polyurethane, Fluorocarbon | ||
Series RV50-26 | ||
Maximum Operating Pressure 345 bar | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Body Material Iron | ||
Port Gender Male | ||
Length 116.6mm | ||
Standards/Approvals RoHS | ||
Maximum Flow Rate 113.6L/min | ||
Pressure Setting Range 20.7 to 344.7 bar | ||
- COO (Country of Origin):
- GB
The Isis Fluid RV10-26 is a screw-in hydraulic relief valve which is cartridge-style, pilot-operated , spool-type designed to function as a pressure limiting device in demanding hydraulic circuits which require fast response and low hysteresis.
Hardened spool and cage for long life
Optional spring ranges to 207 bar
Adjustments cannot be backed out of the valve
Fast, smooth response to pressure surges
Industry common cavity
