Parker 40000mm Synthetic Rubber Hydraulic Hose Assembly, 1.7 Mpa Max Pressure
- RS Stock No.:
- 197-349
- Mfr. Part No.:
- 811-16
- Brand:
- Parker
Subtotal (1 reel of 40 metres)*
£1,491.30
(exc. VAT)
£1,789.56
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £1,491.30 | £37.283 |
*price indicative
- RS Stock No.:
- 197-349
- Mfr. Part No.:
- 811-16
- Brand:
- Parker
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Parker | |
| Product Type | Hydraulic Hose Assembly | |
| Connection Size A | 1 in | |
| Overall Length | 40000mm | |
| Connection Gender A | Male/Female | |
| Connection Type A | Uses Crimp when assembled | |
| Inside Diameter | 25.4mm | |
| Connection Gender B | Male/Female | |
| Connection Size B | 1 in | |
| Maximum Operating Pressure | 1.7 Mpa | |
| Outside Diameter | 38mm | |
| Colour | Black | |
| Inner Hose Material | Synthetic Rubber | |
| Cover Material | Synthetic Rubber | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Series | 811 | |
| Standards/Approvals | SAE 100R4 | |
| Select all | ||
|---|---|---|
Brand Parker | ||
Product Type Hydraulic Hose Assembly | ||
Connection Size A 1 in | ||
Overall Length 40000mm | ||
Connection Gender A Male/Female | ||
Connection Type A Uses Crimp when assembled | ||
Inside Diameter 25.4mm | ||
Connection Gender B Male/Female | ||
Connection Size B 1 in | ||
Maximum Operating Pressure 1.7 Mpa | ||
Outside Diameter 38mm | ||
Colour Black | ||
Inner Hose Material Synthetic Rubber | ||
Cover Material Synthetic Rubber | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Series 811 | ||
Standards/Approvals SAE 100R4 | ||
RoHS Status: Exempt

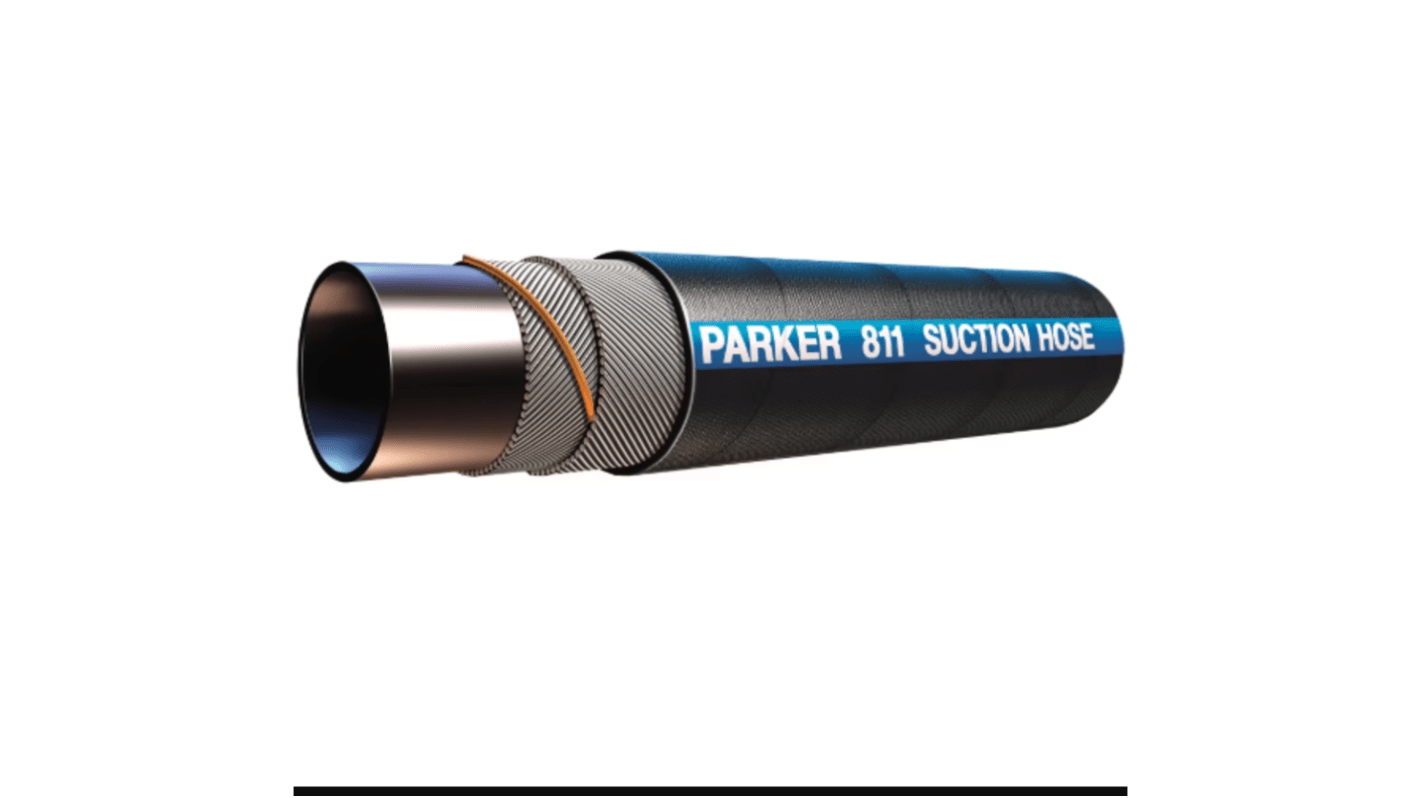

The Parker hose is designed for general applications across various markets. It features a synthetic rubber inner tube, reinforced with two fiber spirals and one helical wire. The synthetic rubber cover is oil and weather resistant. It operates within a temperature range of -40°C to +100°C, with exceptions for air (+70°C) and water (+85°C).
No Skive hose construction
Helical wire to prevent collapse under vacuum
Small bend radii
