Subtotal (1 box of 10 units)*
£7.58
(exc. VAT)
£9.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £7.58 | £0.758 |
*price indicative
- RS Stock No.:
- 274-5978
- Mfr. Part No.:
- TXS20
- Brand:
- Parker
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Parker | |
| Accessory Type | Tubing Sleeve | |
| Manufacturer Series | T-Lok | |
| Material | Steel | |
| Chemical Resistant | No | |
| Food Grade | No | |
| Outer Diameter | 25mm | |
| Overall Length | 17mm | |
Select all | ||
|---|---|---|
Brand Parker | ||
Accessory Type Tubing Sleeve | ||
Manufacturer Series T-Lok | ||
Material Steel | ||
Chemical Resistant No | ||
Food Grade No | ||
Outer Diameter 25mm | ||
Overall Length 17mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
End Sleeve
Suitable for use with complete range of Triple-Lok flared tube fittings and hydraulic tube
The Parker Triple Lok Sleeve is a tube fitting part with high temperature and high pressure capabilities, which makes it a reliable solution for hydraulic applications.
Improved performance
Robust design
Robust design

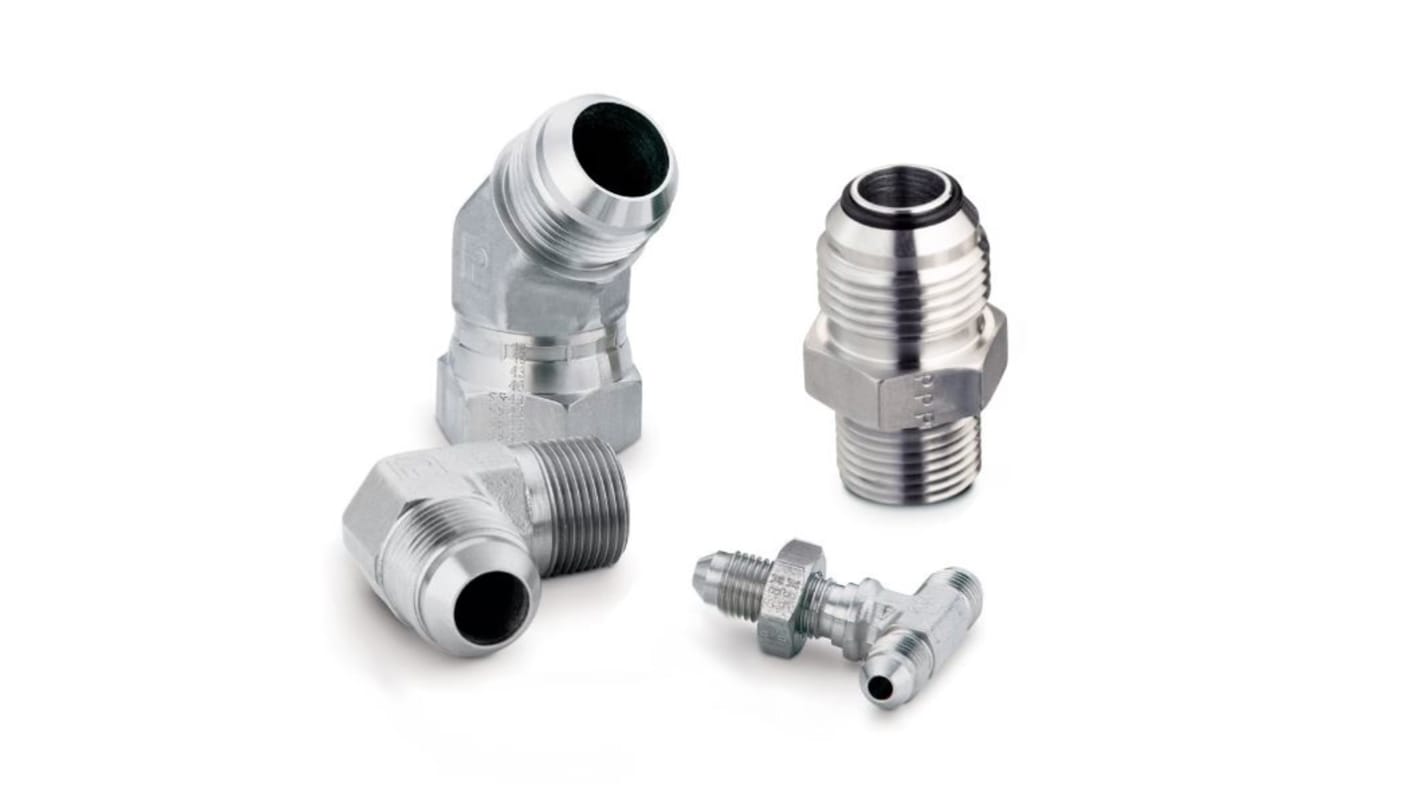

Flared Tube Fittings
Triple-Lok 37° flared fittings are for use with metric tube. Their simplicity, compact design and ease of assembly have led to their widespread choice for applications that use fluid power in motion control. The steel fittings are ideally suited for low and medium pressure applications up to 350 bar nominal pressure and have an operating temperature range of -40°C to +120°C. Their design is simple. The flaring tool vice and flaring pins (available separately) create a seal and hold fluid under pressure in the system. The tube end is flared to 37° and clamped between the fitting nose and the sleeve when the nut is tightened. This provides an effective single seal point between fitting nose and tube flare. The Parker Triple-Lok fitting consists of three components: fitting body; tube nut; sleeve. For steel fittings it is recommended that seamless drawn steel tubes to DIN 2391/C are used.
