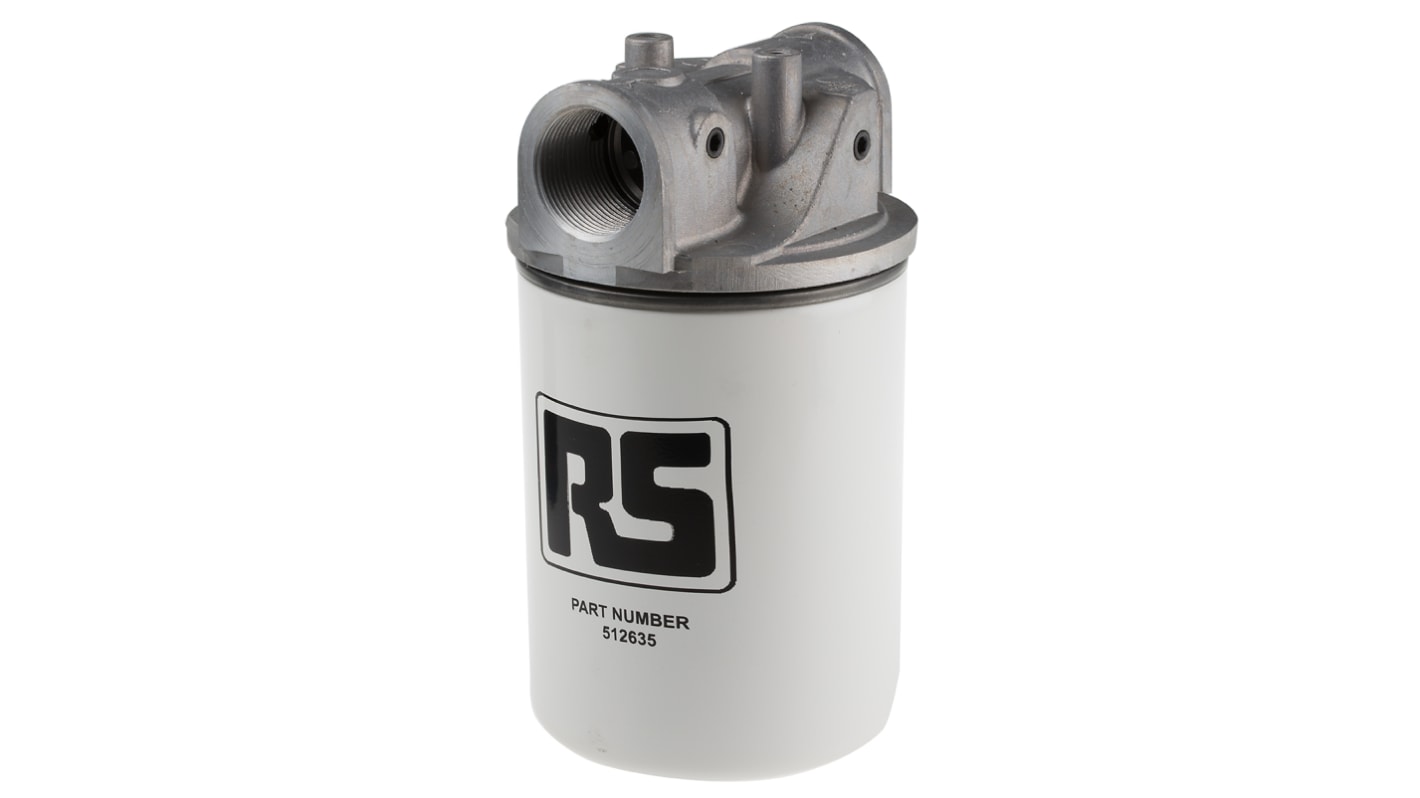

RS PRO 12 bar 1-1/4in Hydraulic Spin-On Filter Can, 95L/min max, 10μm filtration size
- RS Stock No.:
- 512-617
- Brand:
- RS PRO
9 In stock - FREE next working day delivery available
Added
Price Each
£67.99
(exc. VAT)
£81.59
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £67.99 |
| 5 - 9 | £65.95 |
| 10 + | £63.78 |
- RS Stock No.:
- 512-617
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
RS Spin-on Heads and Filters
An RS Brand range of Spin-On filters which can either be used as suction filters or as return line filters as they are ideally suited to low pressure applications.
Aluminium filter head
NBR (Buna-N®) sealings
Port connections: BSP, NPT, SAE Flange, SAE O-ring thread
Up to 14 bar / 200 PSI operating pressure
Up to 460 l/min / 120 US GPM nominal flow rate
NBR (Buna-N®) sealings
Port connections: BSP, NPT, SAE Flange, SAE O-ring thread
Up to 14 bar / 200 PSI operating pressure
Up to 460 l/min / 120 US GPM nominal flow rate
Note
Use Glass Fibre Elements for longer lasting filtration with absolute 10 micron.
Medium & Low Pressure
Specifications
Attribute | Value |
|---|---|
| Filtration Size | 10µm |
| Connection Thread | BSP 1-1/4 (Filter), G 1-1/4 (Element) |
| Maximum Operating Pressure | 12 bar |
| Maximum Flow Rate | 95L/min |
| Thread Standard | BSP (Filter), G (Element) |
| Thread Size | 1-1/4in |
| Maximum Operating Temperature | +100°C |
| Minimum Operating Temperature | -32°C |
