RS PRO 12 bar 3/4in Hydraulic Spin-On Filter Can, 65L/min max, 10μm filtration size

View all Hydraulic Filters

Subtotal (1 unit)*

£71.41

(exc. VAT)

£85.69

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 9 unit(s) ready to ship
  • Plus 12 unit(s) ready to ship from another location
  • Plus 18 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£71.41

*price indicative

RS Stock No.:
512-667
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Filtration Size

10µm

Connection Thread

BSP 3/4 (Filter), G 3/4 (Element)

Maximum Operating Pressure

12 bar

Maximum Flow Rate

65L/min

Thread Standard

BSP (Filter), G (Element/Indicator)

Thread Size

3/4in

Maximum Operating Temperature

+100°C

Minimum Operating Temperature

-32°C

RoHS Status: Exempt

COO (Country of Origin):
DE

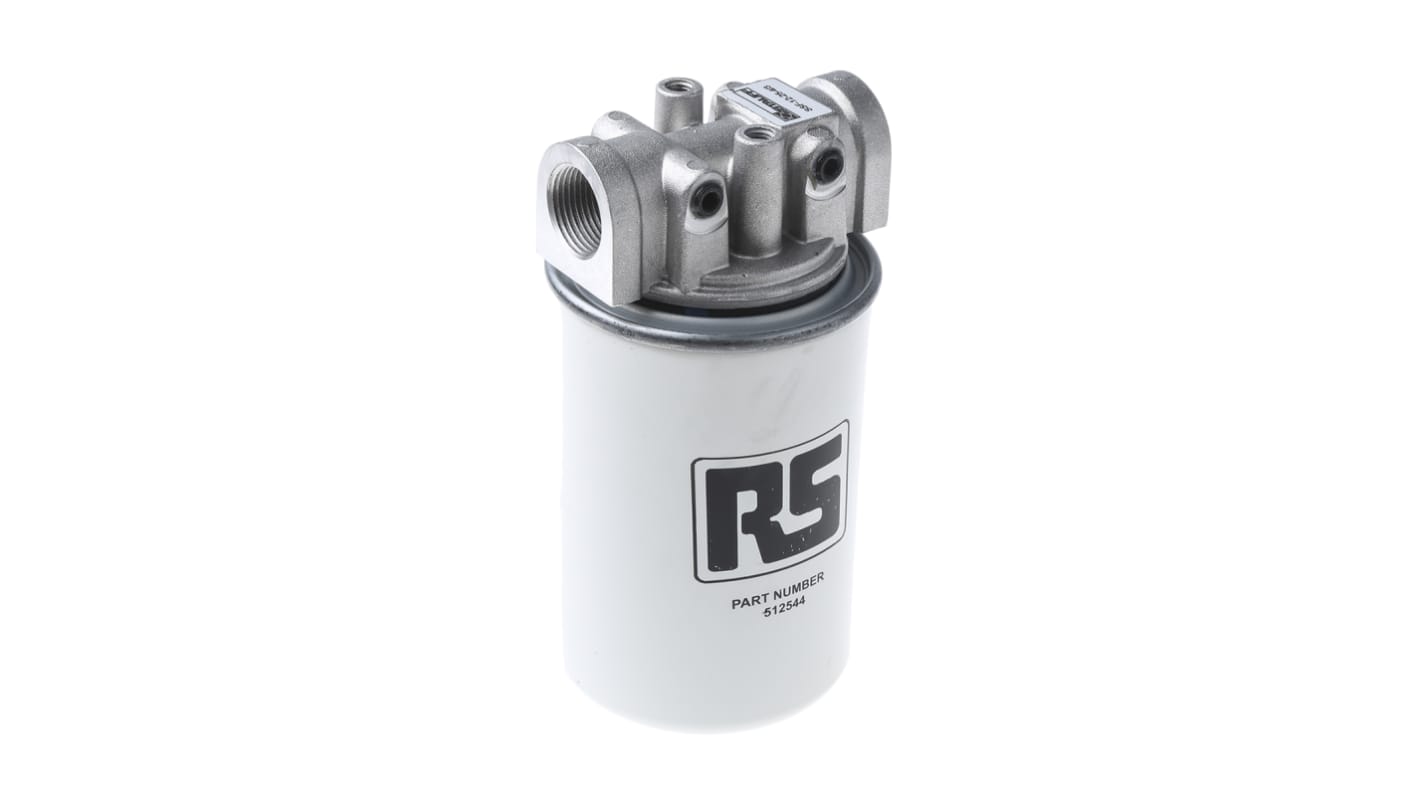

RS PRO Hydraulic Spin-On Filter Can, 10 μm, 3/4 in, 65 L/min Maximum Flow Rate


Do you need to safeguard a hydraulic system's pump, valve, or circuit against contamination? To keep the system clean and reduce wear, simply mount this RS PRO spin-on filter can inline using the threaded mounting holes on the top of the head.


A three-function valve provides efficient operation. Once the opening pressure is attained, a forward bypass valve enables unfiltered oil to bypass the contaminated element. A reverse flow valve allows reverse flow through the filter head, eliminating the need to back-flush the element. During element changes, a non-return valve stops the supply line from draining.


The filter bowl is composed of cold-drawn steel and the filter head is made of spheroidal graphite cast iron, making it a long-lasting component that can withstand a variety of industrial applications. These types of low-pressure filters are commonly found in agricultural and mining machinery.

Features and Benefits


  • BSP (British Standard Pipe) 3/4 (Filter), G 3/4 (Element) connection thread

  • Filtration size of 10 μm

  • Maximum flow rate of 65 L/min

  • Maximum operating pressure of 12 bar

  • Operating temperature of -32ºC to +100ºC

  • Nitrile rubber seal

  • Thread size of 3/4 in

  • BSP (Filter), G (Element/Indicator) thread standard
