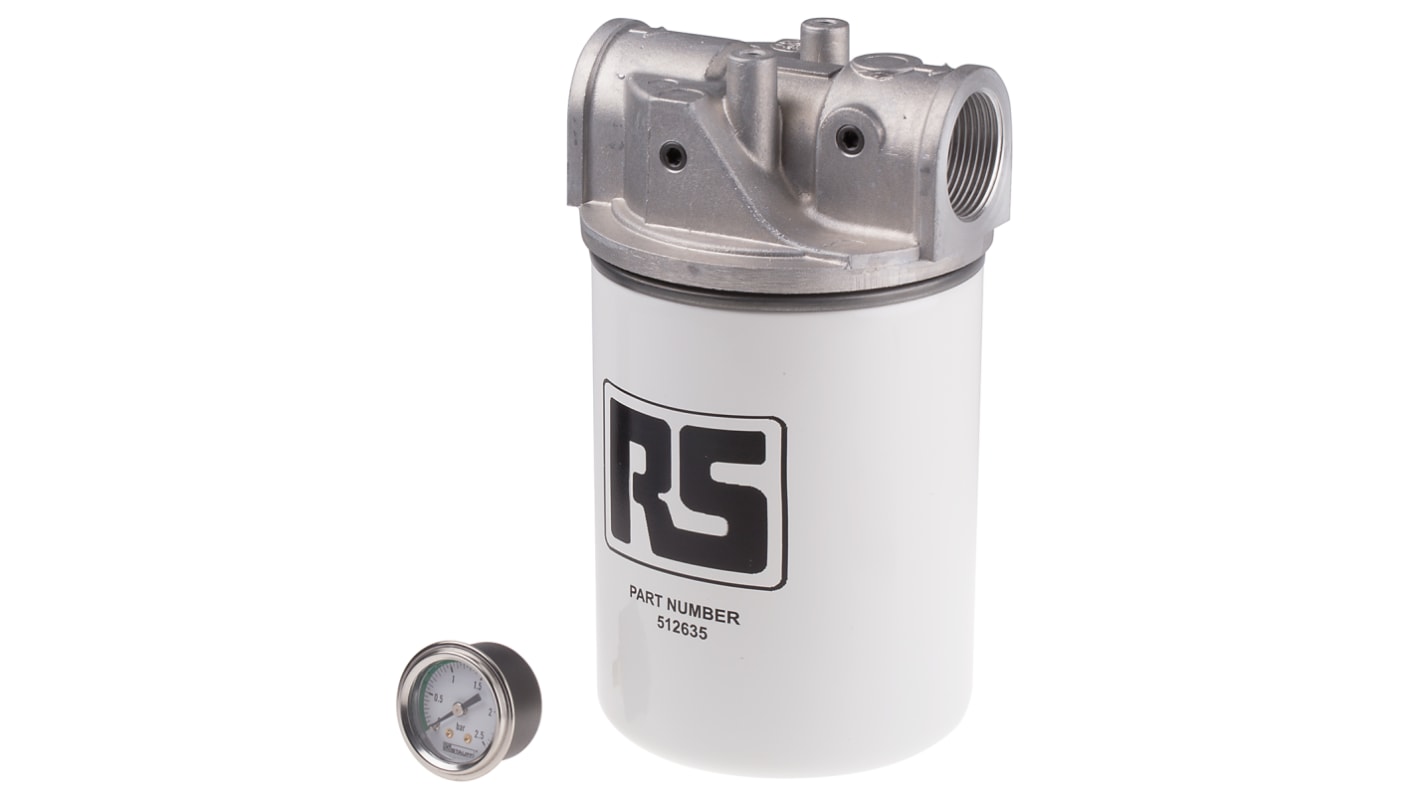

RS PRO 12 bar 1-1/4in Hydraulic Spin-On Filter Can, 95L/min max, 10μm filtration size

View all Hydraulic Filters

Subtotal (1 unit)*

£94.45

(exc. VAT)

£113.34

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1 unit(s) shipping from 25 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£94.45

*price indicative

RS Stock No.:
512-578
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Filtration Size

10µm

Connection Thread

BSP 1-1/4 (Filter), G 1-1/4 (Element)

Maximum Operating Pressure

12 bar

Maximum Flow Rate

95L/min

Thread Standard

BSP (Filter), G (Element/Indicator)

Thread Size

1-1/4in

Maximum Operating Temperature

+100°C

Minimum Operating Temperature

-32°C

RoHS Status: Exempt

COO (Country of Origin):
DE

RS Spin-on Heads and Filters


An RS Brand range of Spin-On filters which can either be used as suction filters or as return line filters as they are ideally suited to low pressure applications.

Aluminium filter head
NBR (Buna-N®) sealings
Port connections: BSP, NPT, SAE Flange, SAE O-ring thread
Up to 14 bar / 200 PSI operating pressure
Up to 460 l/min / 120 US GPM nominal flow rate

Note

Use Glass Fibre Elements for longer lasting filtration with absolute 10 micron.


Medium & Low Pressure
