RS PRO PVC, Hose Pipe, 10mm ID, 14mm OD, Clear, 25m
- RS Stock No.:
- 368-0205
- Brand:
- RS PRO
Subtotal (1 unit)*
£32.70
(exc. VAT)
£39.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 152 unit(s) ready to ship
- Plus 59 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £32.70 |
*price indicative
- RS Stock No.:
- 368-0205
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Hose Pipe/Flexible Tube | Hose Pipe | |
| Inner Diameter | 10mm | |
| Outer Diameter | 14mm | |
| Material | PVC | |
| Hose Pipe Action | Transfer | |
| Maximum Working Pressure | 10 bar | |
| Suitable Applications | Compressed Air | |
| Standards Met | ISO 6224 | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | +60°C | |
| Colour | Clear | |
| Length | 25m | |
| Reinforced | Yes | |
| Bend Radius | 50mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Hose Pipe/Flexible Tube Hose Pipe | ||
Inner Diameter 10mm | ||
Outer Diameter 14mm | ||
Material PVC | ||
Hose Pipe Action Transfer | ||
Maximum Working Pressure 10 bar | ||
Suitable Applications Compressed Air | ||
Standards Met ISO 6224 | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature +60°C | ||
Colour Clear | ||
Length 25m | ||
Reinforced Yes | ||
Bend Radius 50mm | ||
- COO (Country of Origin):
- GB

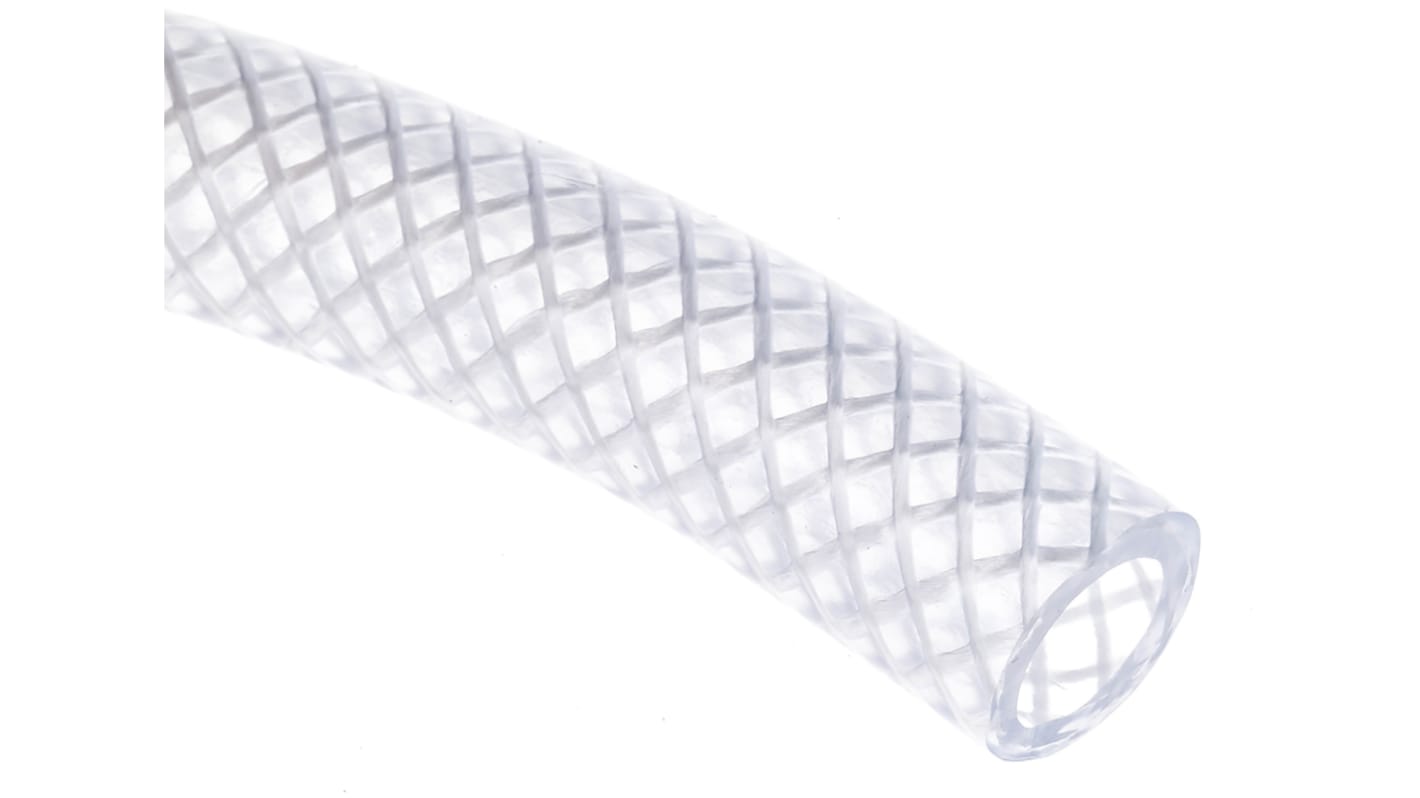

RS Pro Standard Clear Reinforced PVC Hose
An economical, light duty hose ideal for multi-purpose use and is especially popular for industrial air line equipment. It can also be used for food contact applications. Manufactured from transparent, low toxic PVC and reinforced with high tensile polyester fibres.
Features and Benefits
• An effective, functional choice for a diverse range of applications especially when budget is a factor
• Glass clear clarity for excellent visibility
• Excellent resistance to abrasion
• Manufactured from cadmium and silicone-free materials using a special low toxic, odourless PVC formulation that can reduce the taint of drinking water
• Suitable for food, water, chemicals, gas, fuel and oils
• EC compliant for food contact applications
• RoHS compliant
• Highly resistant to a wide range of acids and alkalis
• Service temperature = -15°C to + 60°C
• Specially selected high tensile polyester fibres used at the optimum braid angle of 54° 44′(54.73°) creates an effective and balanced pressure hose
• Manufactured in accordance with BS EN ISO 6224
• 3:1 safety factor @ 23°c
Applications
• A wide variety of shop floor air line applications
• Popular for pharmaceutical / scientific applications for the transfer of chemicals
• For the transfer of food substances and liquids
Note
Working Pressure is at +23°C
