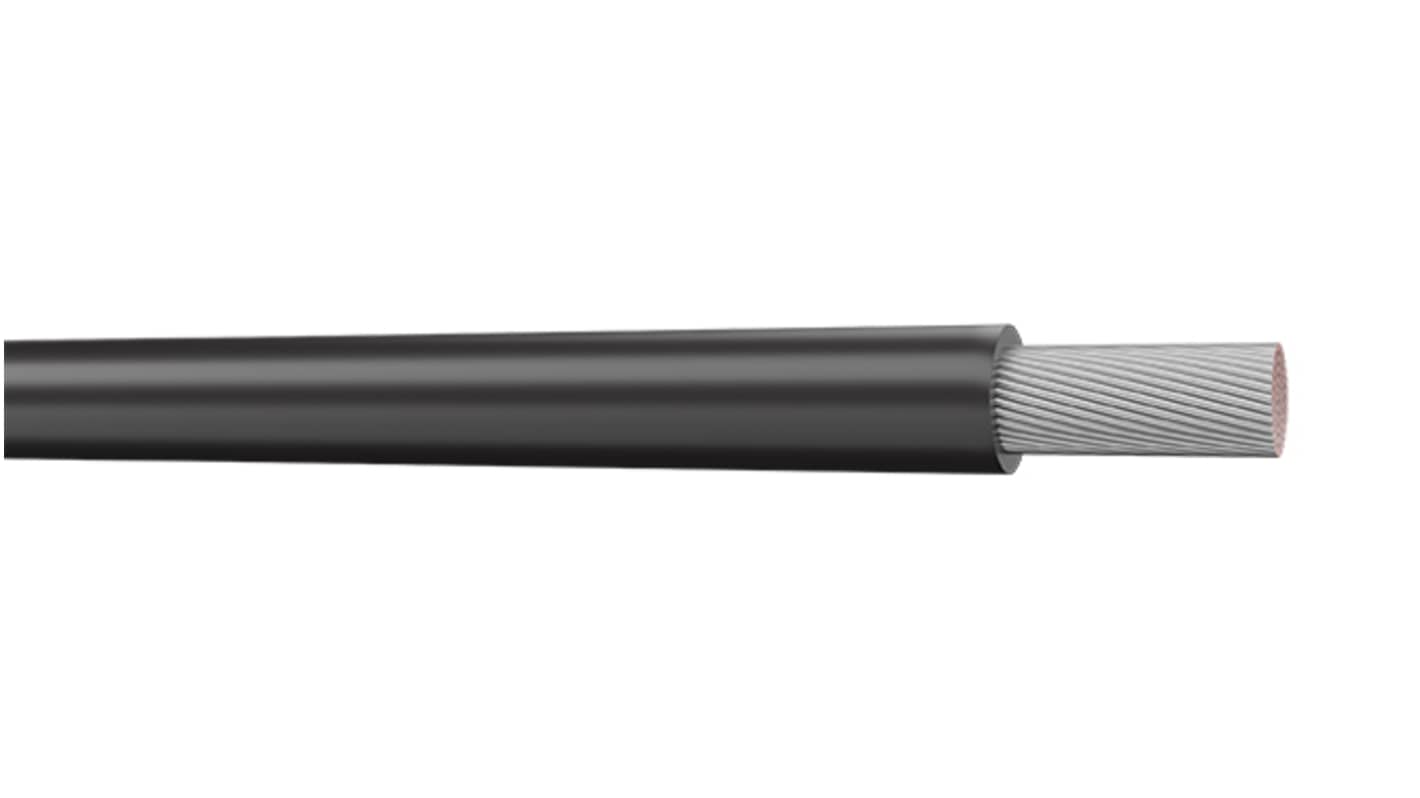

AXINDUS KY Series Black 0.38 mm² Hook Up Wire, 22 AWG, 12 x 0.2 mm, 200m, PVC Insulation, KY33A02N
- RS Stock No.:
- 910-7630
- Mfr. Part No.:
- KY33A02N
- Brand:
- AXINDUS
Subtotal (1 reel of 200 metres)*
£88.68
(exc. VAT)
£106.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 22 October 2025
- Plus 4 unit(s) shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £88.68 | £0.443 |
*price indicative
- RS Stock No.:
- 910-7630
- Mfr. Part No.:
- KY33A02N
- Brand:
- AXINDUS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | AXINDUS | |
| Cross Sectional Area | 0.38 mm² | |
| Sheath Colour | Black | |
| American Wire Gauge | 22 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 12 x 0.2 mm | |
| Length | 200m | |
| Insulation Material | PVC | |
| Voltage Rating | 750 V | |
| Outer Diameter | 2 → 2.3mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Conductor Material | Tinned Copper | |
| Standards Met | IEC 60332-1, NF C 93-521 | |
| Fire Behaviour | Flame Retardant | |
| Series | KY | |
| Shield Type | Unshielded | |
| Number of Strands | 12 | |
| Size of Strands | 0.2 mm | |
Select all | ||
|---|---|---|
Brand AXINDUS | ||
Cross Sectional Area 0.38 mm² | ||
Sheath Colour Black | ||
American Wire Gauge 22 AWG | ||
Cable Shape Single Core | ||
Core Strands 12 x 0.2 mm | ||
Length 200m | ||
Insulation Material PVC | ||
Voltage Rating 750 V | ||
Outer Diameter 2 → 2.3mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Tinned Copper | ||
Standards Met IEC 60332-1, NF C 93-521 | ||
Fire Behaviour Flame Retardant | ||
Series KY | ||
Shield Type Unshielded | ||
Number of Strands 12 | ||
Size of Strands 0.2 mm | ||
- COO (Country of Origin):
- TR
CAE KY30 Equipment Wire
The KY30 wire is ideal for use with electronics and electrical engineering industries. They can be used for wiring small and medium-sized appliances.
Features & Benefits
• Various colours available
• Comply with NF C 93-521 standard
• Flame Retardant
• Various colours available
• Comply with NF C 93-521 standard
• Flame Retardant
