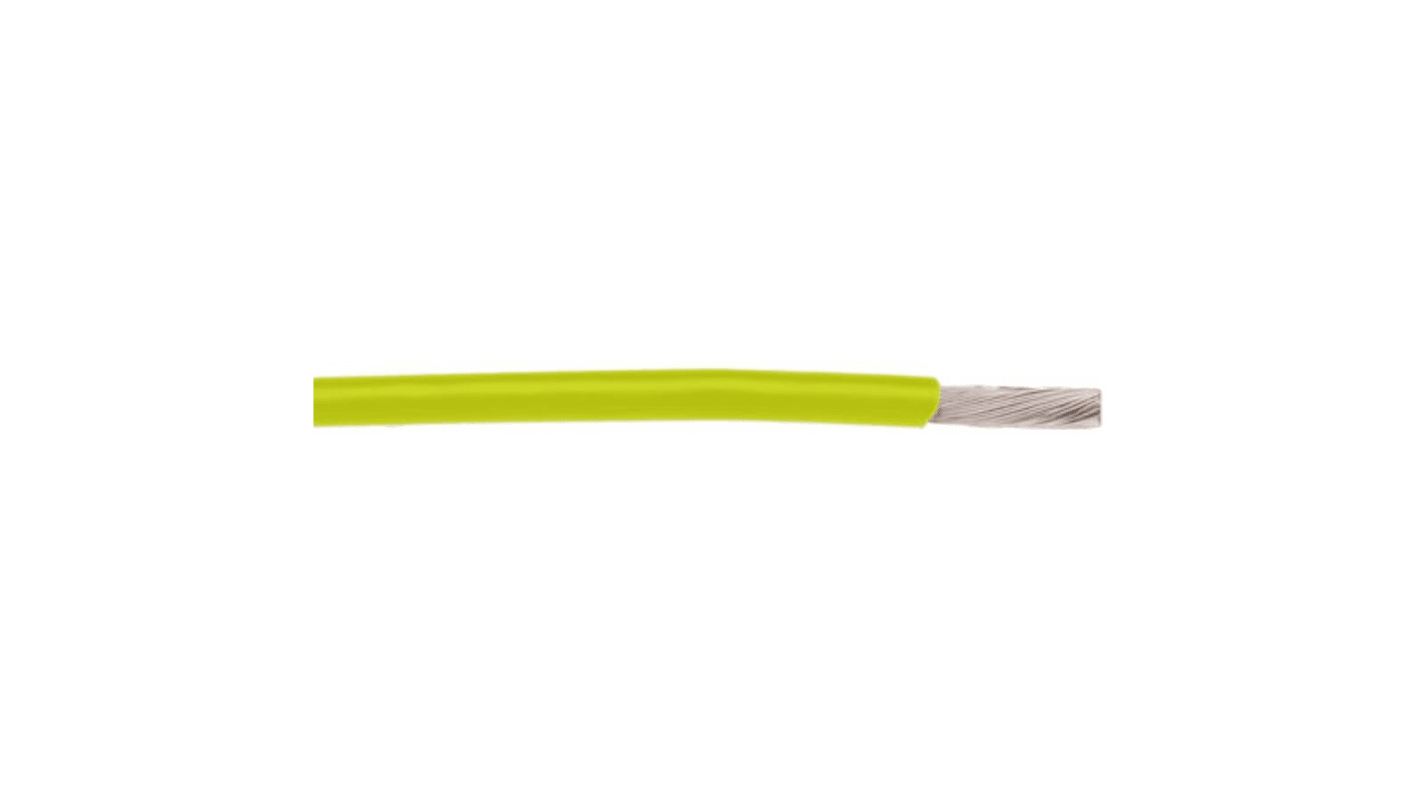

Alpha Wire Hookup Wire TEFLON Series Yellow 0.05 mm² Hook Up Wire, 30 AWG, 1, 30.5 m, 2841/1 YL005

RS Stock No.:: 878-8284
Mfr. Part No.:: 2841/1 YL005
Brand:: Alpha Wire

Alpha Wire Hookup Wire TEFLON Series Yellow 0.05 mm² Hook Up Wire, 30 AWG, 1, 30.5 m, 2841/1 YL005

Subtotal (1 reel of 30 metres)*

£74.85

(exc. VAT)

£89.82

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

1 unit(s) shipping from 15 June 2026
Plus 1 unit(s) shipping from 22 June 2026
Plus 10 unit(s) shipping from 28 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£74.85	£2.495

*price indicative

RS PRO Foam Tapes

RS PRO foam tapes provide strong, reliable adhesion while also offering cushioning, vibration damping and gap filling. Designed for professional environments, they deliver consistent performance across a wide range of surfaces and applications.

Shop Now

RS Stock No.:: 878-8284
Mfr. Part No.:: 2841/1 YL005
Brand:: Alpha Wire

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Alpha Wire
	Product Type	Hook Up Wire
	Cross Sectional Area	0.05mm²
	Jacket Colour	Yellow
	American Wire Gauge	30AWG
	Core Strands	1
	Cable Length	30.5m
	Outside Diameter	0.56mm
	Voltage	250V
	Maximum Operating Temperature	200°C
	Conductor Material	Copper
	Standards/Approvals	California Proposition 65, EU Directive 2011/65/EU (RoHS2), MIL-DTL-16878/6 (Type ET), MIL-W-16878E-TYPE ET, NEMA HP3-ETXBAB, REACH Regulation (EC 1907/2006), RoHS Compliant, UL VW-1
	Minimum Operating Temperature	-60°C
	Fire Behaviour	Flame Resistant
	Series	Hookup Wire TEFLON

	Select all
	Brand Alpha Wire
	Product Type Hook Up Wire
	Cross Sectional Area 0.05mm²
	Jacket Colour Yellow
	American Wire Gauge 30AWG
	Core Strands 1
	Cable Length 30.5m
	Outside Diameter 0.56mm
	Voltage 250V
	Maximum Operating Temperature 200°C
	Conductor Material Copper
	Standards/Approvals California Proposition 65, EU Directive 2011/65/EU (RoHS2), MIL-DTL-16878/6 (Type ET), MIL-W-16878E-TYPE ET, NEMA HP3-ETXBAB, REACH Regulation (EC 1907/2006), RoHS Compliant, UL VW-1
	Minimum Operating Temperature -60°C
	Fire Behaviour Flame Resistant
	Series Hookup Wire TEFLON

RoHS Status: Exempt

Alpha Wire PTFE Hook-Up Wire

Hook up wire is a single insulated conductor wire that can be used in electronics for low voltage and low current applications. This hook up wire is made from PTFE which can deal with high temperatures, has excellent electrical properties and is resistant to many chemicals and solvents. Hook up wire is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines and appliances. This type of hook up wire from Alpha Wire can be used in military applications.

Features and Benefits

PTFE insulation

Stranded or solid silver-plated copper conductor

Can withstand high temperatures

Chemically inert: Chemical and solvent resistance

Excellent electrical properties

What is Mil-spec?

Mil-spec is a US defence standard used to help achieve standardisation objectives by the U.S. department of defence. Suitable for demanding electronic military applications. Military hook-up wire is expected to work under extreme conditions such as, temperature, shock and exposure to chemicals.

Product Application Information

Control cabinets in protected environments

Machine tool on the factory floor

High temperature oven

Off-road construction equipment

Transformers

Switchboard

Military applications

Standards

MIL-DTL-16878/4 (Type E), UL AWM 1213, NEMA HP3
