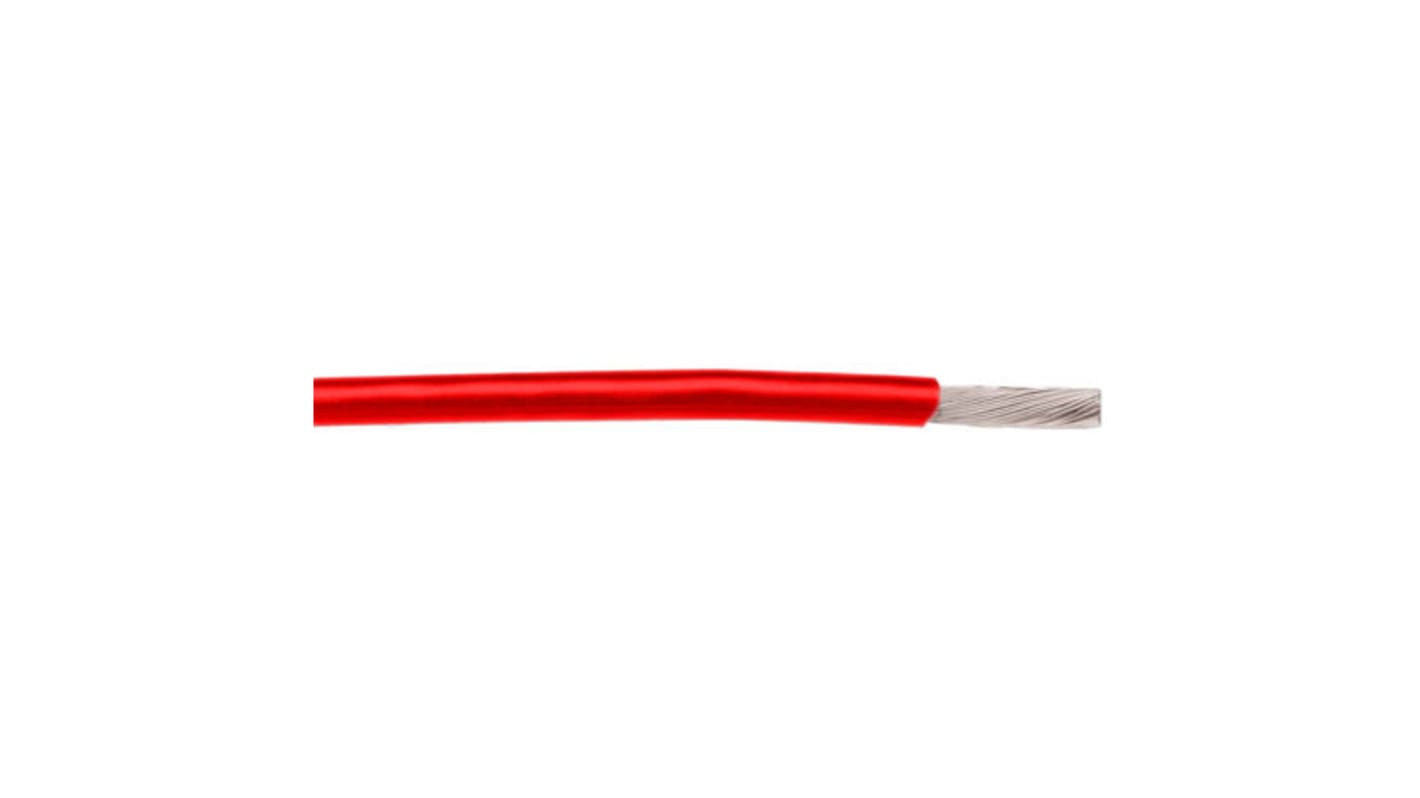

Alpha Wire Hook-up Wire TEFLON Series Red 0.06 mm² Hook Up Wire, 30 AWG, 14062, 30.5m, PTFE Insulation, 2841/7 RD005
- RS Stock No.:
- 878-8238
- Distrelec Article No.:
- 300-72-795
- Mfr. Part No.:
- 2841/7 RD005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£46.97
(exc. VAT)
£56.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 23 unit(s) shipping from 27 October 2025
- Plus 12 unit(s) shipping from 27 October 2025
- Plus 999,999,976 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £46.97 | £1.566 |
*price indicative
- RS Stock No.:
- 878-8238
- Distrelec Article No.:
- 300-72-795
- Mfr. Part No.:
- 2841/7 RD005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.06 mm² | |
| Sheath Colour | Red | |
| Cable Shape | Multicore | |
| American Wire Gauge | 30 AWG | |
| Core Strands | 14062 | |
| Length | 30.5m | |
| Insulation Material | PTFE | |
| Outer Diameter | 0.61mm | |
| Voltage Rating | 250 V | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | 200°C | |
| Conductor Material | Silver Plated Copper | |
| Standards Met | California Proposition 65, EU Directive 2011/65/EU (RoHS2), MIL-DTL-16878/6 (Type ET), MIL-W-16878E-TYPE ET, NEMA HP3-ETXBAB, REACH Regulation (EC 1907/2006), RoHS Compliant, UL VW-1 | |
| Wire Style | MIL-W-16878 | |
| Cable Type | High Temperature | |
| Series | Hook-up Wire TEFLON | |
| Tri-rated | No | |
| Hook Up Wire Type | High Temperature | |
| Insulation Wall Thickness | 0.15mm | |
| Shield Type | Unshielded | |
| Number of Strands | 7 | |
| Resistant To | Chemicals, Oils, Solvents | |
| Size of Strands | 38 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.06 mm² | ||
Sheath Colour Red | ||
Cable Shape Multicore | ||
American Wire Gauge 30 AWG | ||
Core Strands 14062 | ||
Length 30.5m | ||
Insulation Material PTFE | ||
Outer Diameter 0.61mm | ||
Voltage Rating 250 V | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature 200°C | ||
Conductor Material Silver Plated Copper | ||
Standards Met California Proposition 65, EU Directive 2011/65/EU (RoHS2), MIL-DTL-16878/6 (Type ET), MIL-W-16878E-TYPE ET, NEMA HP3-ETXBAB, REACH Regulation (EC 1907/2006), RoHS Compliant, UL VW-1 | ||
Wire Style MIL-W-16878 | ||
Cable Type High Temperature | ||
Series Hook-up Wire TEFLON | ||
Tri-rated No | ||
Hook Up Wire Type High Temperature | ||
Insulation Wall Thickness 0.15mm | ||
Shield Type Unshielded | ||
Number of Strands 7 | ||
Resistant To Chemicals, Oils, Solvents | ||
Size of Strands 38 | ||
Belden Hook-up Wire TEFLON Series Hook Up Wire, 30 AWG, Red - 2841/7 RD005
This hook-up wire is designed for high-temperature applications, featuring a 30 AWG gauge and a length of 30.5m. Built with PTFE insulation, it offers exceptional electrical performance and durability in extreme conditions. The wire’s outer diameter is 0.61mm, making it suitable for various wiring needs in demanding environments.
Features & Benefits
• High-temperature resistance up to 200°C for reliable performance
• Chemical-resistant properties suitable for harsh environments
• Silver-plated copper ensures optimal conductivity and performance
• Unshielded design for straightforward installations
• Insulation thickness of 0.15mm enhances durability and flexibility
• Compliance with multiple standards guarantees safety and performance
• Chemical-resistant properties suitable for harsh environments
• Silver-plated copper ensures optimal conductivity and performance
• Unshielded design for straightforward installations
• Insulation thickness of 0.15mm enhances durability and flexibility
• Compliance with multiple standards guarantees safety and performance
Applications
• Used in automation systems requiring reliable wiring
• Ideal for electronic circuits where high-temperature resistance is essential
• Suitable for precision in mechanical structures
• Utilised in electrical installations with stringent safety standards
• For environments exposed to chemicals or solvents
• Ideal for electronic circuits where high-temperature resistance is essential
• Suitable for precision in mechanical structures
• Utilised in electrical installations with stringent safety standards
• For environments exposed to chemicals or solvents
What is the significance of the PTFE insulation in this wire?
PTFE insulation provides superior thermal stability and maintains integrity over a wide temperature range, making the wire ideal for high-temperature applications and exposure to harsh chemicals.
How does the wire’s construction impact its performance in electrical applications?
The combination of silver-plated copper conductors and a compact multicore design enhances conductivity and reduces signal loss, ensuring efficient performance in sensitive electrical circuits.
What are the advantages of using a 30 AWG wire in specific applications?
A 30 AWG wire is lightweight and flexible, making it easy to route and install in tight spaces while still providing adequate current capacity for low-power applications.
