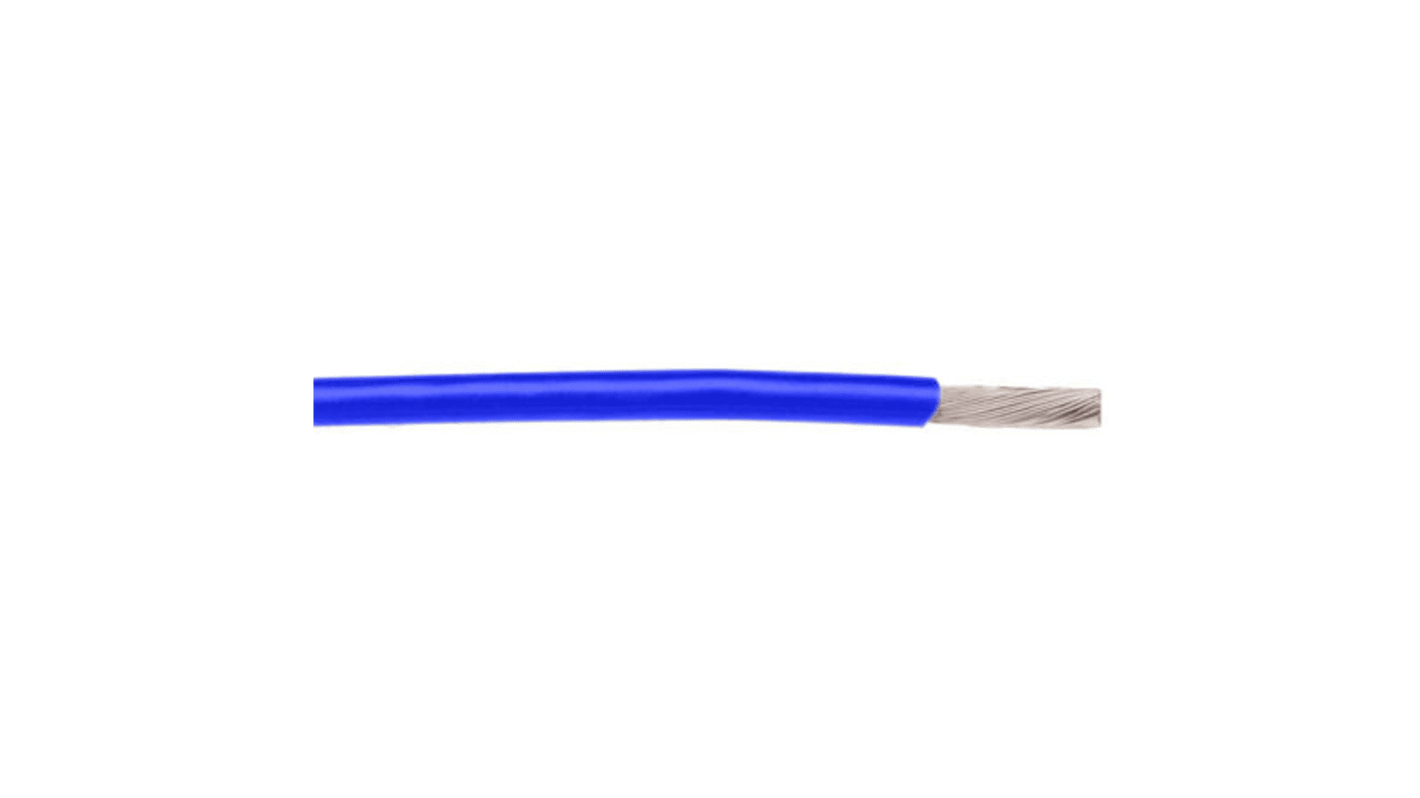

Alpha Wire Hook-up Wire TEFLON Series Blue 0.33 mm² Hook Up Wire, 22 AWG, 19/0.16 mm, 30m, PTFE Insulation, 5875 BL005
- RS Stock No.:
- 878-8159
- Mfr. Part No.:
- 5875 BL005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£73.11
(exc. VAT)
£87.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
- Plus 2 unit(s) shipping from 06 October 2025
- Plus 16 unit(s) shipping from 10 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £73.11 | £2.437 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£124.39
(exc. VAT)
£149.27
(inc. VAT)
- RS Stock No.:
- 878-8159
- Mfr. Part No.:
- 5875 BL005
- Brand:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.33 mm² | |
| Sheath Colour | Blue | |
| Cable Shape | Wire/Single Core | |
| American Wire Gauge | 22 AWG | |
| Core Strands | 19/0.16 mm | |
| Length | 30m | |
| Insulation Material | PTFE | |
| Voltage Rating | 1 kV | |
| Outer Diameter | 1.52mm | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +200°C | |
| Conductor Material | Silver Plated Copper | |
| Wire Style | UL1180 | |
| Standards Met | CA Prop 65, MIL-DTL-16878/5 Type EE, NEMA HP3, RoHS Compliant, UL, UL AWM 1180, UR Recognized | |
| Series | Hook-up Wire TEFLON | |
| Insulation Wall Thickness | 0.4mm | |
| Size of Strands | 0.16 mm | |
| Number of Strands | 19 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.33 mm² | ||
Sheath Colour Blue | ||
Cable Shape Wire/Single Core | ||
American Wire Gauge 22 AWG | ||
Core Strands 19/0.16 mm | ||
Length 30m | ||
Insulation Material PTFE | ||
Voltage Rating 1 kV | ||
Outer Diameter 1.52mm | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +200°C | ||
Conductor Material Silver Plated Copper | ||
Wire Style UL1180 | ||
Standards Met CA Prop 65, MIL-DTL-16878/5 Type EE, NEMA HP3, RoHS Compliant, UL, UL AWM 1180, UR Recognized | ||
Series Hook-up Wire TEFLON | ||
Insulation Wall Thickness 0.4mm | ||
Size of Strands 0.16 mm | ||
Number of Strands 19 | ||
