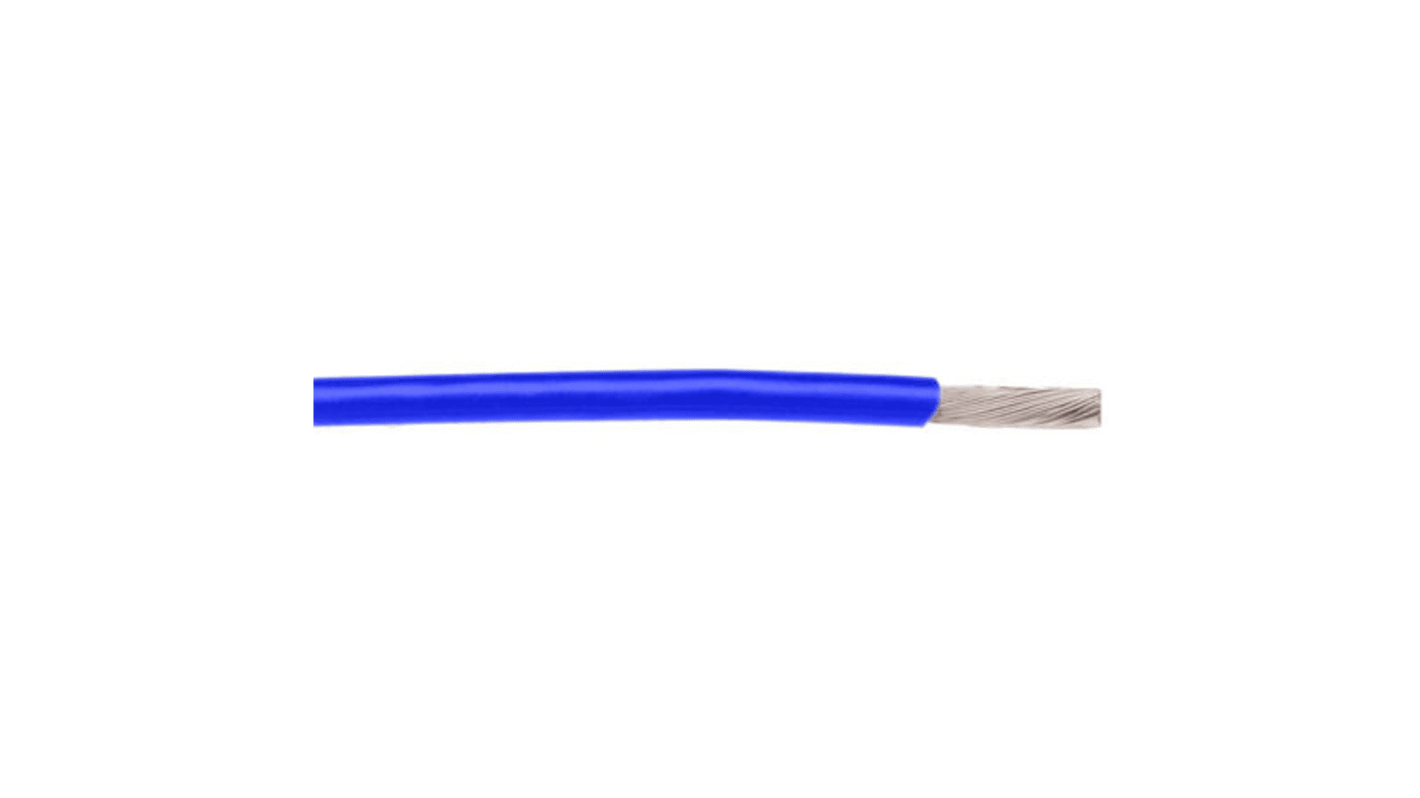

Alpha Wire Hook-up Wire TEFLON Series Blue 0.2 mm² Hook Up Wire, 24 AWG, 19/0.13 mm, 30m, PTFE Insulation, 5874 BL005
- RS Stock No.:
- 878-8127
- Mfr. Part No.:
- 5874 BL005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£63.57
(exc. VAT)
£76.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 16 unit(s) shipping from 29 December 2025
- Plus 7 unit(s) shipping from 29 December 2025
- Plus 4 unit(s) shipping from 03 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £63.57 | £2.119 |
*price indicative
- RS Stock No.:
- 878-8127
- Mfr. Part No.:
- 5874 BL005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.2 mm² | |
| Sheath Colour | Blue | |
| Cable Shape | Wire/Single Core | |
| American Wire Gauge | 24 AWG | |
| Core Strands | 19/0.13 mm | |
| Length | 30m | |
| Insulation Material | PTFE | |
| Voltage Rating | 1 kV | |
| Outer Diameter | 1.37mm | |
| Maximum Operating Temperature | +200°C | |
| Minimum Operating Temperature | -60°C | |
| Conductor Material | Silver Plated Copper | |
| Standards Met | CA Prop 65, MIL-DTL-16878/5 Type EE, NEMA HP3, RoHS Compliant, UL, UL AWM 1180, UR Recognized | |
| Cable Type | High Temperature | |
| Wire Style | UL1180 | |
| Tri-rated | No | |
| Series | Hook-up Wire TEFLON | |
| Insulation Wall Thickness | 0.4mm | |
| Hook Up Wire Type | High Temperature | |
| Shield Type | Unshielded | |
| Number of Strands | 19 | |
| Size of Strands | 0.13 mm | |
| Resistant To | Chemicals, Oils, Solvents | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.2 mm² | ||
Sheath Colour Blue | ||
Cable Shape Wire/Single Core | ||
American Wire Gauge 24 AWG | ||
Core Strands 19/0.13 mm | ||
Length 30m | ||
Insulation Material PTFE | ||
Voltage Rating 1 kV | ||
Outer Diameter 1.37mm | ||
Maximum Operating Temperature +200°C | ||
Minimum Operating Temperature -60°C | ||
Conductor Material Silver Plated Copper | ||
Standards Met CA Prop 65, MIL-DTL-16878/5 Type EE, NEMA HP3, RoHS Compliant, UL, UL AWM 1180, UR Recognized | ||
Cable Type High Temperature | ||
Wire Style UL1180 | ||
Tri-rated No | ||
Series Hook-up Wire TEFLON | ||
Insulation Wall Thickness 0.4mm | ||
Hook Up Wire Type High Temperature | ||
Shield Type Unshielded | ||
Number of Strands 19 | ||
Size of Strands 0.13 mm | ||
Resistant To Chemicals, Oils, Solvents | ||
Belden Hook-up Wire TEFLON Series Hook Up Wire, 0.2mm² Cross Sectional Area, 30m Length - 5874 BL005
This hook-up wire is a high-performance solution designed for various electrical applications. Comprising a 0.2 mm² cross-sectional area and a striking blue PTFE sheath, this wire is engineered to withstand extreme conditions ranging from -60°C to +200°C. The silver-plated copper conductor ensures efficient conductivity while maintaining flexibility for easier installation.
Features & Benefits
• High temperature capability for demanding environments
• PTFE insulation for superior chemical resistance
• 24 AWG hook-up wire with reliable performance
• Voltage rated at 1 kV for safe operation
• Unshielded design suitable for simpler applications
• Light and flexible structure for enhanced ease of use
• PTFE insulation for superior chemical resistance
• 24 AWG hook-up wire with reliable performance
• Voltage rated at 1 kV for safe operation
• Unshielded design suitable for simpler applications
• Light and flexible structure for enhanced ease of use
Applications
• Used in automation systems where high heat is required
• Ideal for electronics projects needing chemical resistance
• Utilised in electrical connections in extreme temperatures
• Suitable for mechanical systems involving high temperatures
• Ideal for electronics projects needing chemical resistance
• Utilised in electrical connections in extreme temperatures
• Suitable for mechanical systems involving high temperatures
What are the benefits of using PTFE insulation over other materials?
PTFE insulation is known for its excellent chemical resistance and ability to perform in high temperature ranges, ensuring durability and reliability in harsh environments.
How does the wire's voltage rating impact its application in various systems?
With a voltage rating of 1 kV, it can safely be employed in systems requiring high voltage, reducing the risk of insulation failure in demanding scenarios.
What are the characteristics of the silver-plated copper conductor used here?
The silver-plated copper conductor offers improved conductivity compared to standard copper, which enhances signal quality and reduces resistive losses in electrical applications.
How does the wire's design facilitate its use in tight spaces?
The wire's unshielded and flexible structure allows it to navigate restrictive spaces without compromising performance, making it ideal for compact installations.
