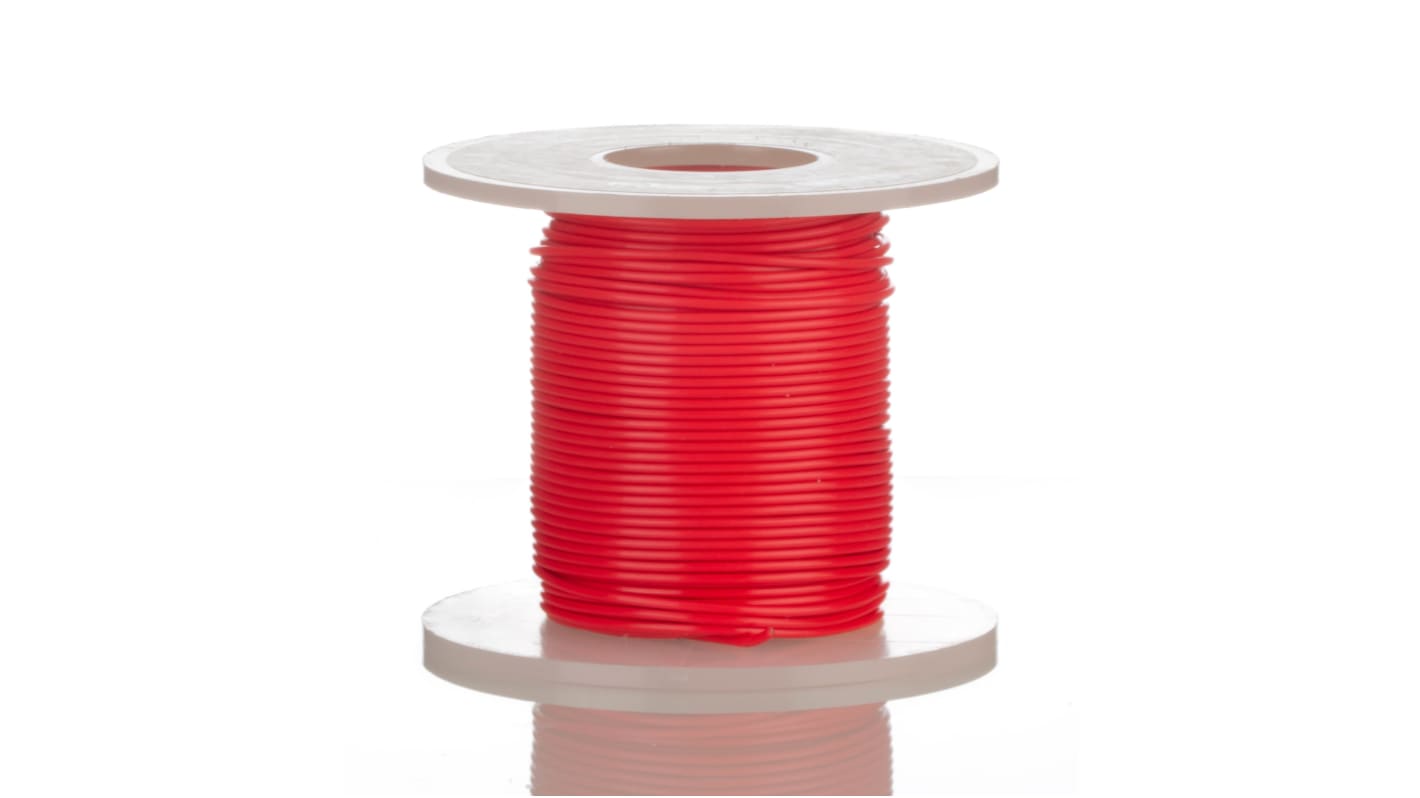

Alpha Wire Hook-up Wire TEFLON Series Red 0.33 mm² Hook Up Wire, 22 AWG, 19/0.16 mm, 30m, PTFE Insulation, 5855 RD005
- RS Stock No.:
- 878-8105
- Distrelec Article No.:
- 300-72-865
- Mfr. Part No.:
- 5855 RD005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£57.64
(exc. VAT)
£69.17
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 26 unit(s) shipping from 18 November 2025
- Plus 13 unit(s) shipping from 16 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £57.64 | £1.921 |
*price indicative
- RS Stock No.:
- 878-8105
- Distrelec Article No.:
- 300-72-865
- Mfr. Part No.:
- 5855 RD005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.33 mm² | |
| Sheath Colour | Red | |
| American Wire Gauge | 22 AWG | |
| Core Strands | 19/0.16 mm | |
| Length | 30m | |
| Insulation Material | PTFE | |
| Outer Diameter | 1.27mm | |
| Voltage Rating | 600 V | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +200°C | |
| Conductor Material | Silver Plated Copper | |
| Wire Style | UL1213 | |
| Standards Met | CA Prop 65, MIL-DTL-16878/5 Type EE, NEMA HP3, RoHS Compliant, UL, UL AWM 1180, UR Recognized | |
| Series | Hook-up Wire TEFLON | |
| Insulation Wall Thickness | 0.3mm | |
| Size of Strands | 0.16 mm | |
| Number of Strands | 19 | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.33 mm² | ||
Sheath Colour Red | ||
American Wire Gauge 22 AWG | ||
Core Strands 19/0.16 mm | ||
Length 30m | ||
Insulation Material PTFE | ||
Outer Diameter 1.27mm | ||
Voltage Rating 600 V | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +200°C | ||
Conductor Material Silver Plated Copper | ||
Wire Style UL1213 | ||
Standards Met CA Prop 65, MIL-DTL-16878/5 Type EE, NEMA HP3, RoHS Compliant, UL, UL AWM 1180, UR Recognized | ||
Series Hook-up Wire TEFLON | ||
Insulation Wall Thickness 0.3mm | ||
Size of Strands 0.16 mm | ||
Number of Strands 19 | ||
Belden Alpha Wire Red Hook-Up Electrical Wire, 30m Length, 22AWG - Hook Up Wire Series - 5855 RD005
Ensure the reliable delivery of energy to your system with this hook-up wire from Belden’s Alpha Wire range. Its wide operating temperature range between -60°C to +200°C makes it ideal for use in environments where extreme temperature fluctuations are a likely occurrence. Thanks to its hydrophobic PTFE (polytetrafluoroethylene) insulation, this cable is waterproof and resistant to chemical damage. Its silver-plated copper conductors offer excellent electrical conductivity, ensuring fast energy transfer. The wire measures just 1.27mm in diameter for easy installation in compact circuits.
Features & Benefits
• Voltage rating of 600V for use in high-energy systems
• 30m cable length can be used in larger installations or easily cut down to suit your system needs
• Red colour-coded insulation for easy identification
• 30m cable length can be used in larger installations or easily cut down to suit your system needs
• Red colour-coded insulation for easy identification
Applications
• Computer wiring
• Construction equipment
• Electrical transformers
• Household appliances
• Construction equipment
• Electrical transformers
• Household appliances
What’s a harsh-environment hook-up wire?
A hook-up wire is a single insulated electrical conductor. Harsh-environment wires are often used in high-voltage and low-current circuits. Thanks to their robust construction, they can stand up to hazardous conditions where less durable wires may fail.
