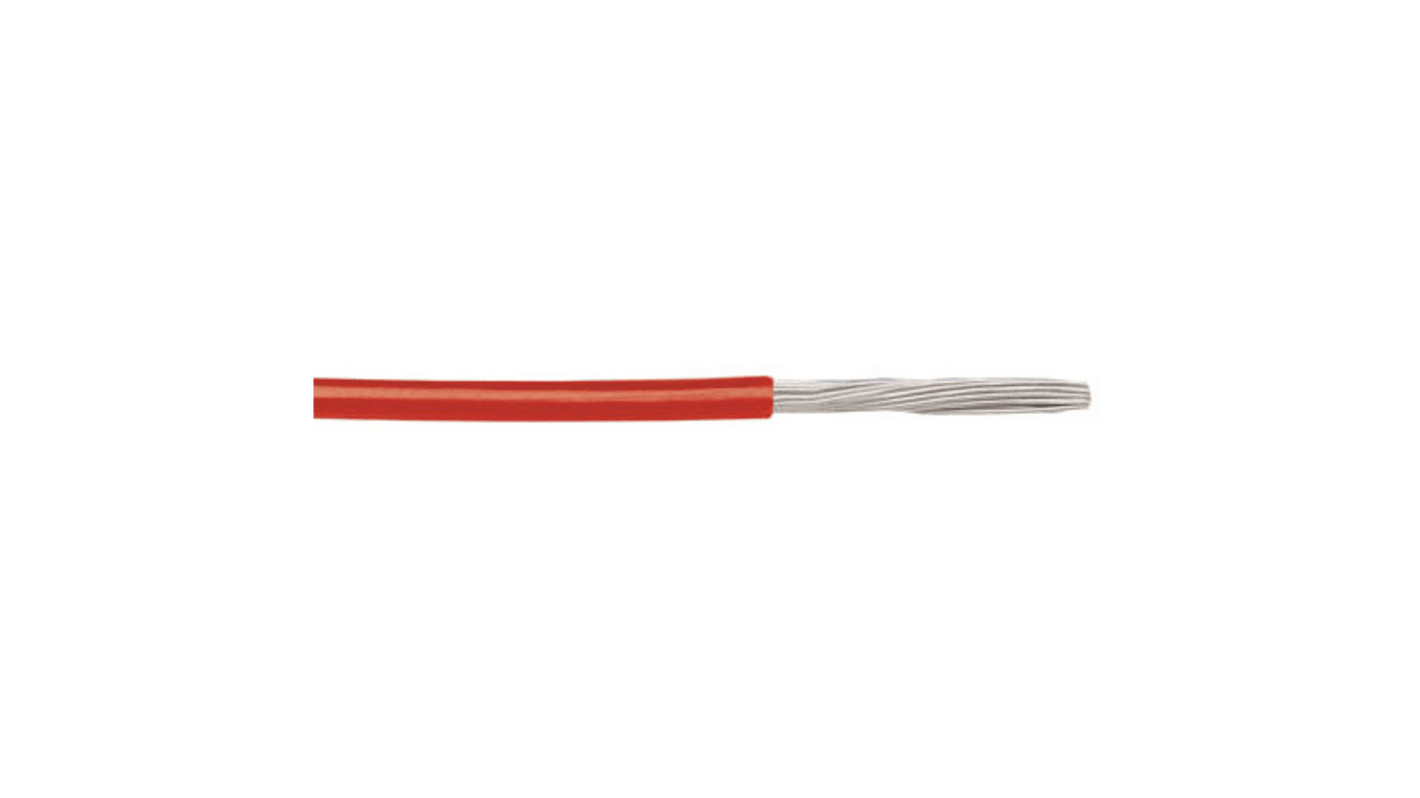

Alpha Wire Hook-up Wire TEFLON Series Red 0.2 mm² Hook Up Wire, 24 AWG, 19/0.13 mm, 30m, PTFE Insulation, 5854 RD005
- RS Stock No.:
- 878-8073
- Distrelec Article No.:
- 300-72-845
- Mfr. Part No.:
- 5854 RD005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£49.51
(exc. VAT)
£59.41
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 26 unit(s) shipping from 29 December 2025
- Plus 7 unit(s) shipping from 29 December 2025
- Plus 4 unit(s) shipping from 20 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £49.51 | £1.65 |
*price indicative
- RS Stock No.:
- 878-8073
- Distrelec Article No.:
- 300-72-845
- Mfr. Part No.:
- 5854 RD005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.2 mm² | |
| Sheath Colour | Red | |
| Cable Shape | Single Core | |
| American Wire Gauge | 24 AWG | |
| Core Strands | 19/0.13 mm | |
| Length | 30m | |
| Insulation Material | PTFE | |
| Voltage Rating | 600 V | |
| Outer Diameter | 1.12mm | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +200°C | |
| Conductor Material | Silver Plated Copper | |
| Wire Style | UL1213 | |
| Cable Type | Single Core | |
| Standards Met | CA Prop 65, MIL-DTL-16878/5 Type EE, NEMA HP3, RoHS Compliant, UL, UL AWM 1180, UR Recognized | |
| Tri-rated | No | |
| Series | Hook-up Wire TEFLON | |
| Insulation Wall Thickness | 0.3mm | |
| Hook Up Wire Type | High Temperature | |
| Size of Strands | 0.13 mm | |
| Resistant To | Chemicals, Oils, Solvents | |
| Number of Strands | 19 | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.2 mm² | ||
Sheath Colour Red | ||
Cable Shape Single Core | ||
American Wire Gauge 24 AWG | ||
Core Strands 19/0.13 mm | ||
Length 30m | ||
Insulation Material PTFE | ||
Voltage Rating 600 V | ||
Outer Diameter 1.12mm | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +200°C | ||
Conductor Material Silver Plated Copper | ||
Wire Style UL1213 | ||
Cable Type Single Core | ||
Standards Met CA Prop 65, MIL-DTL-16878/5 Type EE, NEMA HP3, RoHS Compliant, UL, UL AWM 1180, UR Recognized | ||
Tri-rated No | ||
Series Hook-up Wire TEFLON | ||
Insulation Wall Thickness 0.3mm | ||
Hook Up Wire Type High Temperature | ||
Size of Strands 0.13 mm | ||
Resistant To Chemicals, Oils, Solvents | ||
Number of Strands 19 | ||
RoHS Status: Exempt
Belden Hook-up Wire TEFLON Series Hook Up Wire, 0.2mm² Cross Sectional Area, Red Sheath Colour - 5854 RD005
This hook-up wire is designed for high-temperature applications within the automation and electrical industries. It features PTFE insulation, ensuring reliable durability even under harsh conditions. Measuring 30 m in length, this single core cable is perfect for various wiring projects.
Features & Benefits
• Capable of operating in extreme temperatures from -60°C to +200°C
• Utilises PTFE insulation for enhanced chemical resistance
• Constructed with silver plated copper for superior conductivity
• Rated for use at 600V, ensuring safety in high voltage applications
• Complies with multiple industry standards for reliable performance
• Lightweight design facilitates ease of installation and handling
• Utilises PTFE insulation for enhanced chemical resistance
• Constructed with silver plated copper for superior conductivity
• Rated for use at 600V, ensuring safety in high voltage applications
• Complies with multiple industry standards for reliable performance
• Lightweight design facilitates ease of installation and handling
Applications
• Ideal for wiring in high performance electrical systems
• Used for connections in automation equipment
• Suitable for aerospace and military
• Utilised in environments requiring chemical resistance
• Suitable for industrial machinery and robotic systems
• Used for connections in automation equipment
• Suitable for aerospace and military
• Utilised in environments requiring chemical resistance
• Suitable for industrial machinery and robotic systems
What characteristics of the insulation make it suitable for high temperatures?
The PTFE insulation is specifically designed to withstand temperatures ranging from -60°C to +200°C, ensuring long-term reliability and performance in extreme conditions.
How does the conductor material enhance performance in various applications?
The use of silver plated copper increases conductivity and reduces signal loss, making it ideal for high performance electrical tasks where efficiency is critical.
What are the advantages of using a single core cable in specific installations?
Single core cables simplify installation processes and provide flexibility in tight spaces, making them suitable for intricate wiring configurations in compact assemblies.
