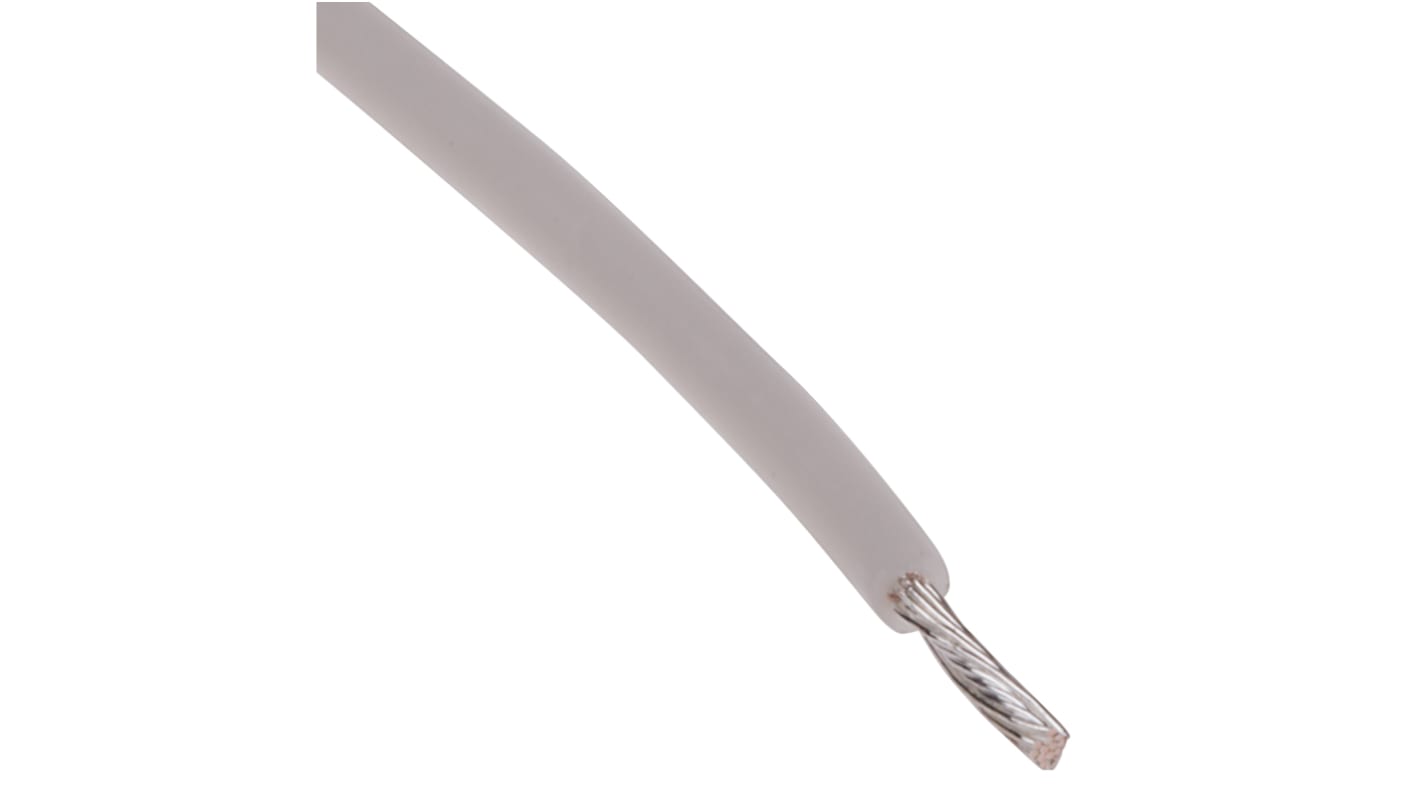

RS PRO White 0.13 mm² Hook Up Wire, 26 AWG, 19/0.1 mm, 100m, PTFE Insulation

View all Hook Up Wire
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
877-6200
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

0.13 mm²

Sheath Colour

White

Cable Shape

Single Core

American Wire Gauge

26 AWG

Core Strands

19/0.1 mm

Length

100m

Insulation Material

PTFE

Outer Diameter

1mm

Voltage Rating

600 V

Maximum Operating Temperature

+200°C

Conductor Material

Silver Plated Copper

Standards Met

MIL-W-22759/11 Type RC, SAE AS22759/11

Wire Style

MIL-W-22759

Insulation Wall Thickness

0.3mm

Shield Type

Unshielded

Number of Strands

19

Size of Strands

0.1 mm

COO (Country of Origin):
CN

PTFE MIL Hook-Up Wire 22759/11


PTFE Military Hook-Up Wire is available and ideal for internal wiring of appliances and electronic equipment.

• Silver plated copper conductor
• PTFE Insulation
• Various colours
• 24, 26, 28AWG
• Rated for continuous use up to 200°C

Applications:


• Aerospace & military
• Electronic applications

Standards

MIL-W-22759/9 Type RC
