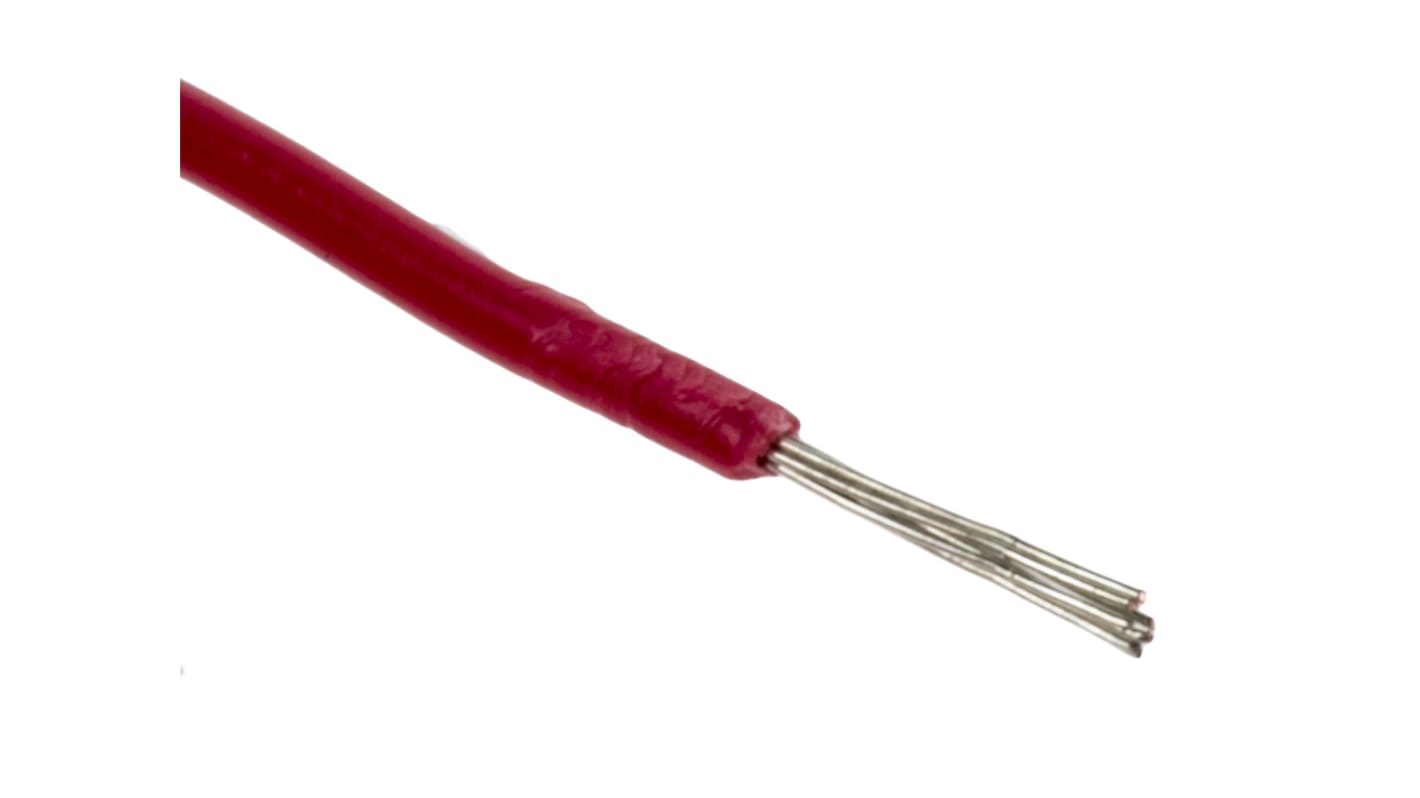

RS PRO Red 0.08mm² Hook Up Wire, 28 AWG, 7/0.12 mm, 100m, XLPVC Insulation

View all Hook Up Wire

Subtotal (1 reel of 100 metres)*

£13.76

(exc. VAT)

£16.51

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 80 unit(s) ready to ship
  • Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£13.76£0.138

*price indicative

RS Stock No.:
877-5254
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

0.08mm²

Sheath Colour

Red

Cable Shape

Single Core

American Wire Gauge

28 AWG

Core Strands

7/0.12 mm

Length

100m

Insulation Material

XLPVC

Outer Diameter

0.9mm

Voltage Rating

150 V

Maximum Operating Temperature

+80°C

Conductor Material

Tinned Copper

Wire Style

UL1429

Standards Met

UL 1581, UL 758

Fire Behaviour

Flame Retardant

Insulation Wall Thickness

0.3mm

Number of Strands

7

Size of Strands

0.127mm

COO (Country of Origin):
CN

RS UL1429 Hook-up cable wire


UL1429 hook-up wire can be used for internal wiring of appliances or electronic equipment.

Various Colours
VW-1
UL758, UL1581
Tinned Copper Conductor
PVC insulation

Note

Tags may indicate the following: 300 V Peak for electronic use only

Standards

UL758, UL1581,RoHS
