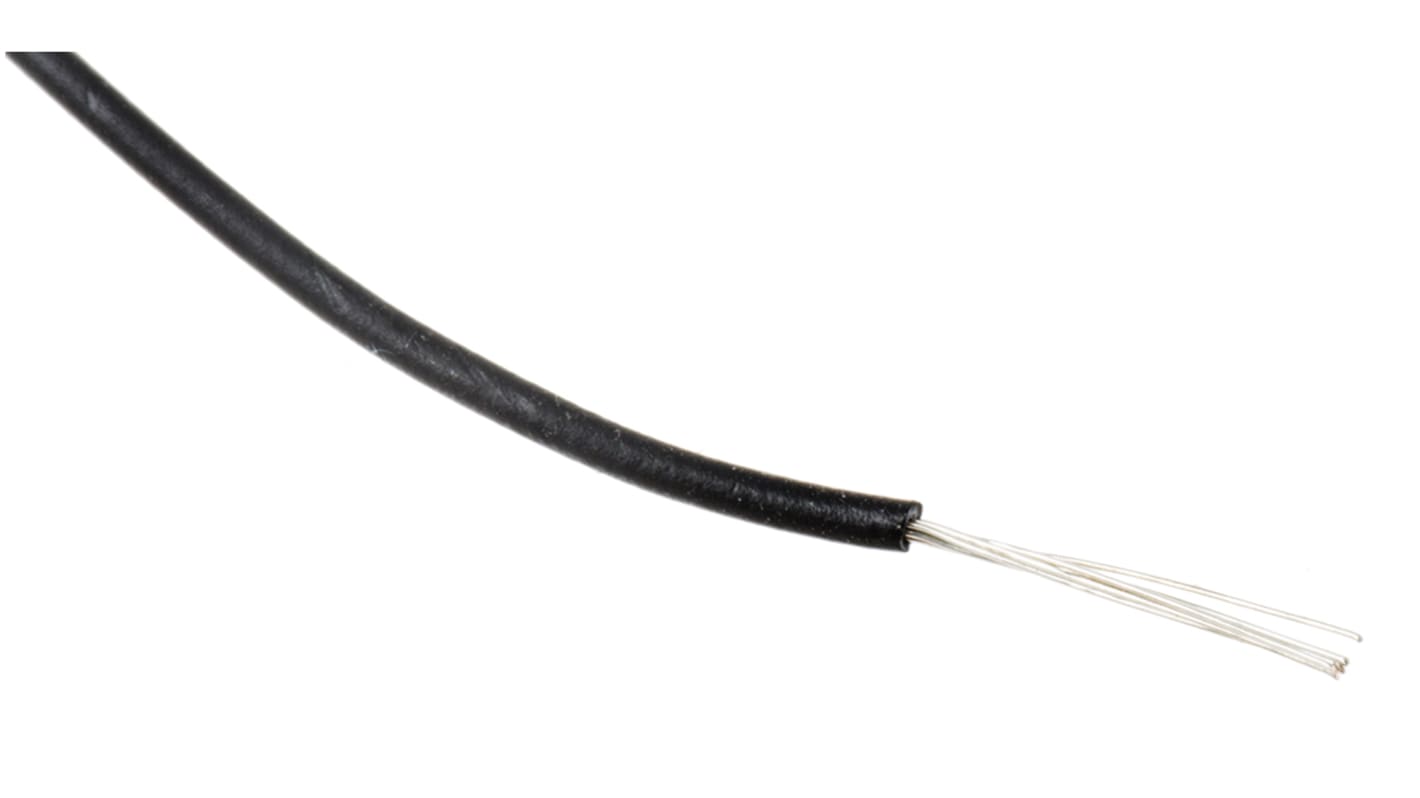

RS PRO Black 0.13mm² Hook Up Wire, 26 AWG, 7/0.16 mm, 100m, MPPE Insulation
- RS Stock No.:
- 872-4458
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£14.48
(exc. VAT)
£17.38
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 59 unit(s) shipping from 17 November 2025
- Plus 120 unit(s) shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £14.48 | £0.145 |
*price indicative
- RS Stock No.:
- 872-4458
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.13mm² | |
| Sheath Colour | Black | |
| American Wire Gauge | 26 AWG | |
| Core Strands | 7/0.16 mm | |
| Length | 100m | |
| Insulation Material | MPPE | |
| Voltage Rating | 600 V | |
| Outer Diameter | 1mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | 0°C | |
| Conductor Material | Tinned Copper | |
| Standards Met | UL 1581, UL 758 | |
| Wire Style | UL11028 | |
| Insulation Wall Thickness | 0.2mm | |
| Size of Strands | 0.16mm | |
| Number of Strands | 7 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.13mm² | ||
Sheath Colour Black | ||
American Wire Gauge 26 AWG | ||
Core Strands 7/0.16 mm | ||
Length 100m | ||
Insulation Material MPPE | ||
Voltage Rating 600 V | ||
Outer Diameter 1mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature 0°C | ||
Conductor Material Tinned Copper | ||
Standards Met UL 1581, UL 758 | ||
Wire Style UL11028 | ||
Insulation Wall Thickness 0.2mm | ||
Size of Strands 0.16mm | ||
Number of Strands 7 | ||
- COO (Country of Origin):
- CN
UL11028
UL11028 is used for the internal wiring of electrical products.
600 Voltage
mPPE material
Various colours
Stranded tinned copper conductor
Flammability test VW-1
mPPE material
Various colours
Stranded tinned copper conductor
Flammability test VW-1
Standards
UL758, UL1581
