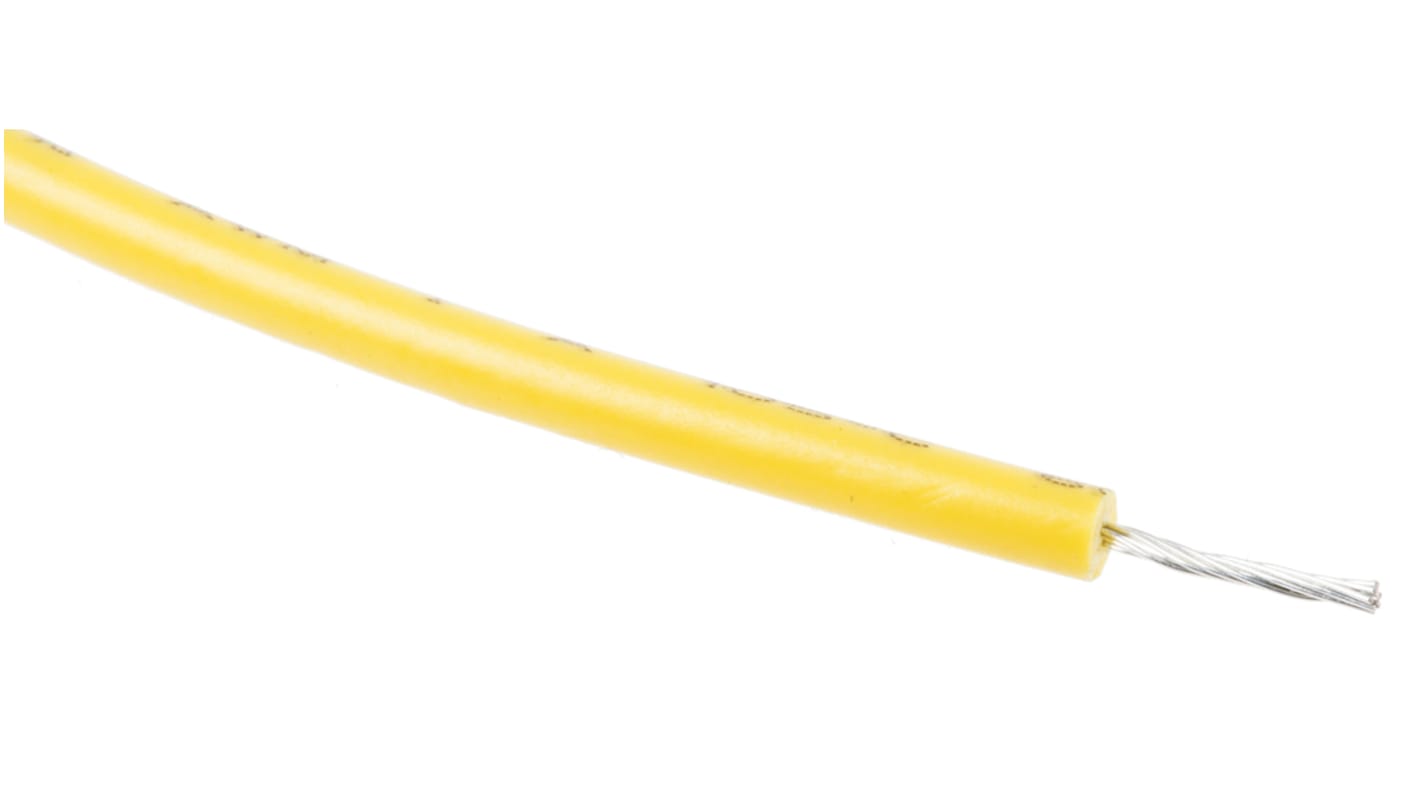

RS PRO Yellow 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm, 100m, XLPE Insulation

View all Hook Up Wire
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
872-4347
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

0.13 mm²

Sheath Colour

Yellow

American Wire Gauge

26 AWG

Core Strands

7/0.16 mm

Length

100m

Insulation Material

XLPE

Voltage Rating

600 V

Outer Diameter

2.1mm

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+150°C

Conductor Material

Stranded Tinned Copper

Wire Style

UL3321

Standards Met

UL 1581, UL 758

Insulation Wall Thickness

0.8mm

Number of Strands

7

Size of Strands

0.16 mm

COO (Country of Origin):
CN

UL3321


The UL3321 cable range are designed for internal wiring of electronic and electrical equipment.

600 Volt
28,26,24,22 AWG
Stranded tinned copper conductor
XLPE insulated material - Cross linked polyethylene
Various colours
Flammability tested - VW-1
Rated for use up to 150°C

Applications:


Electronic motor and generator industry
Heating and cooling
Lighting
Switchgear
Appliance applications

Standards

UL758, UL1581
