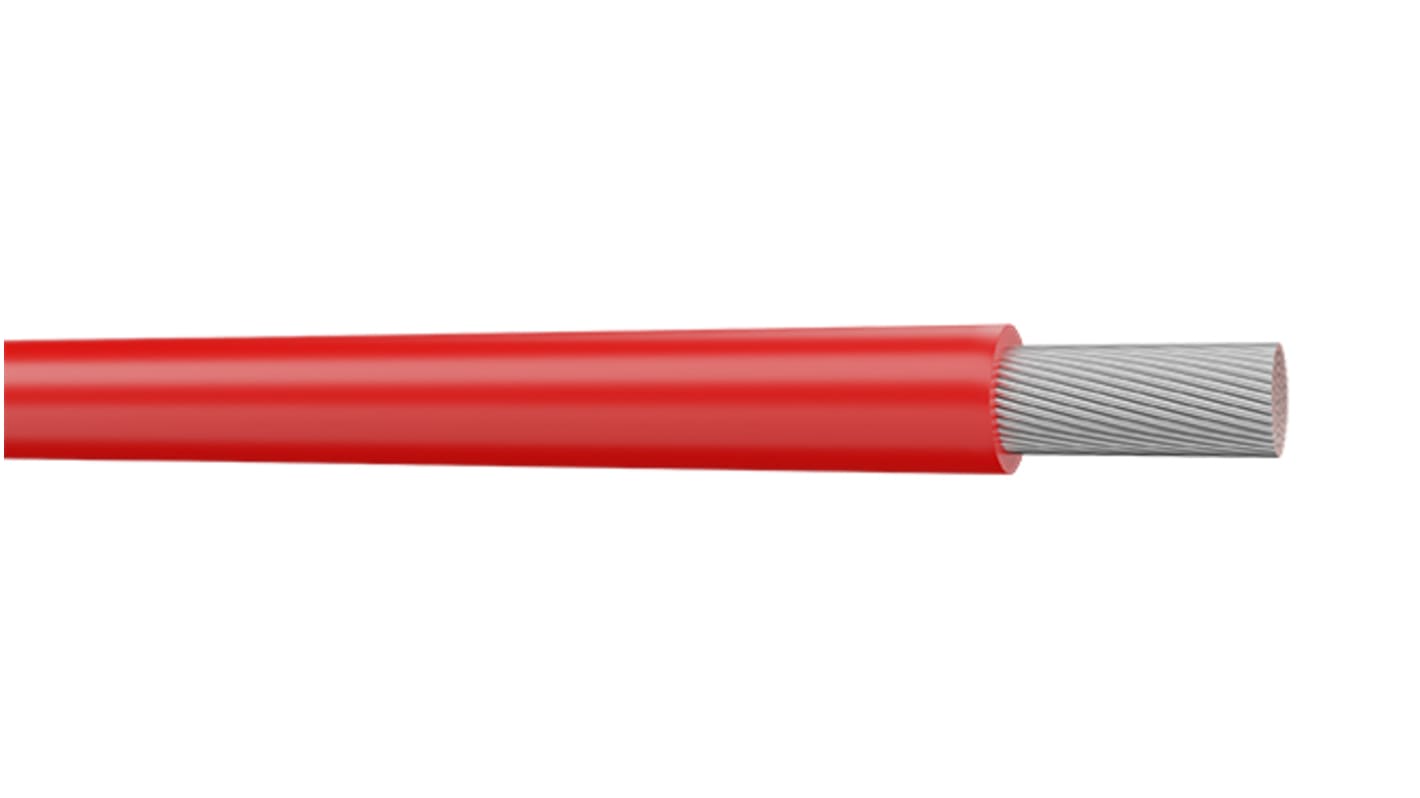

AXINDUS KY Series Red 0.34 mm² Hook Up Wire, 22 AWG, 7 x 0.25 mm, 200m, PVC Insulation, KY3005R
- RS Stock No.:
- 842-7403
- Mfr. Part No.:
- KY3005R
- Brand:
- AXINDUS
Subtotal (1 reel of 200 metres)*
£68.22
(exc. VAT)
£81.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £68.22 | £0.341 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 250 Metre(s)
£45.37
(exc. VAT)
£54.44
(inc. VAT)
- RS Stock No.:
- 842-7403
- Mfr. Part No.:
- KY3005R
- Brand:
- AXINDUS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | AXINDUS | |
| Cross Sectional Area | 0.34 mm² | |
| Sheath Colour | Red | |
| Cable Shape | Single Core | |
| American Wire Gauge | 22 AWG | |
| Core Strands | 7 x 0.25 mm | |
| Length | 200m | |
| Insulation Material | PVC | |
| Outer Diameter | 1.2 → 1.45mm | |
| Voltage Rating | 250 V | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Tinned Copper | |
| Standards Met | IEC 60332-1, NF C 93-521 | |
| Fire Behaviour | Flame Retardant | |
| Series | KY | |
| Shield Type | Unshielded | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 7 | |
Select all | ||
|---|---|---|
Brand AXINDUS | ||
Cross Sectional Area 0.34 mm² | ||
Sheath Colour Red | ||
Cable Shape Single Core | ||
American Wire Gauge 22 AWG | ||
Core Strands 7 x 0.25 mm | ||
Length 200m | ||
Insulation Material PVC | ||
Outer Diameter 1.2 → 1.45mm | ||
Voltage Rating 250 V | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Tinned Copper | ||
Standards Met IEC 60332-1, NF C 93-521 | ||
Fire Behaviour Flame Retardant | ||
Series KY | ||
Shield Type Unshielded | ||
Size of Strands 0.25 mm | ||
Number of Strands 7 | ||
- COO (Country of Origin):
- TR
KY30 Cable
The KY30 series wire can be used in the electronics and electrical engineering industries for small and medium appliance wiring.
Flame Retardant
Copper strand tinned conductor material
Flexible multi-wire conductor class
PVC Core insulation
Copper strand tinned conductor material
Flexible multi-wire conductor class
PVC Core insulation
Standards
NF C 93-521, RoHS, IEC 60332-1, NF C 32-070/C2
