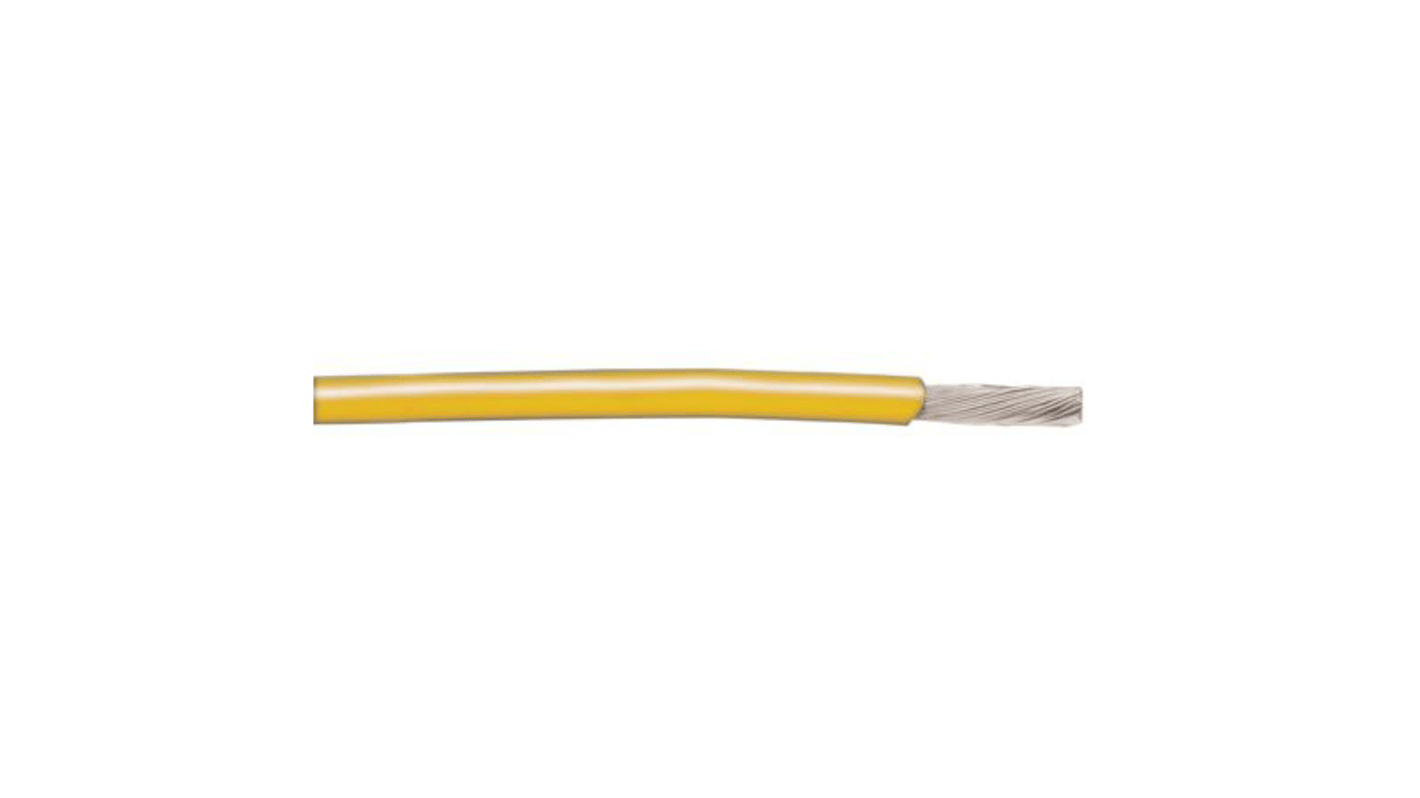

Alpha Wire Hookup Wire PVC Series Yellow 1.3 mm² Hook Up Wire, 16 AWG, 19, 30 m, Polyvinyl Chloride, 1858/19 YL005
- RS Stock No.:
- 842-6239
- Distrelec Article No.:
- 301-51-195
- Mfr. Part No.:
- 1858/19 YL005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£50.71
(exc. VAT)
£60.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £50.71 | £1.69 |
*price indicative
- RS Stock No.:
- 842-6239
- Distrelec Article No.:
- 301-51-195
- Mfr. Part No.:
- 1858/19 YL005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 1.3 mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Yellow | |
| American Wire Gauge | 16AWG | |
| Core Strands | 19 | |
| Cable Length | 30m | |
| Voltage | 600 V | |
| Outside Diameter | 1.93 mm | |
| Maximum Operating Temperature | 105°C | |
| Conductor Material | Copper | |
| Sub Type | 1858 Hookup Wire | |
| Minimum Operating Temperature | -55°C | |
| Jacket Material | Polyvinyl Chloride | |
| Cable Type | Hookup | |
| Standards/Approvals | Military MIL-W-16878E/1 | |
| Series | Hookup Wire PVC | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 1.3 mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour Yellow | ||
American Wire Gauge 16AWG | ||
Core Strands 19 | ||
Cable Length 30m | ||
Voltage 600 V | ||
Outside Diameter 1.93 mm | ||
Maximum Operating Temperature 105°C | ||
Conductor Material Copper | ||
Sub Type 1858 Hookup Wire | ||
Minimum Operating Temperature -55°C | ||
Jacket Material Polyvinyl Chloride | ||
Cable Type Hookup | ||
Standards/Approvals Military MIL-W-16878E/1 | ||
Series Hookup Wire PVC | ||
RoHS Status: Exempt
1858/19 YL005
MIL-DTL-16878/1 (Type B)
MIL-W-76 Type LW
Temperature Range: -55° to +105°C
Colour: Yellow
Wire Size: 16 AWG
Stranding: 19/29 AWG
Alpha Wire 600 V PVC Hook Up Wire - Military Spec
This hook up wire from Alpha Wire consists of stranded insulated conductor wires that can be used in electronics for low voltage and low current applications. This hook up wire is made from the finest quality PVC and can be used in military applications due to its Mil-spec compliance.
Features and Benefits
• Abrasion resistant;• Excellent uniformity and low-fray design for easy-handling, stripping and termination;• PVC insulation;• 600 V;• Stranded conductor;• Colour-coded insulation for easy circuit identification;• Excellent flame resistance;• Mil-spec compliance
What is Mil-spec?
Mil-spec is a US defence standard used to help achieve standardisation objectives by the U.S. department of defence. This means that this hook up wire is suitable for demanding electronic military applications.
Product Application Information
Hook up wire is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines and appliances. Hook up wire is most often used within enclosed electronic equipment.
