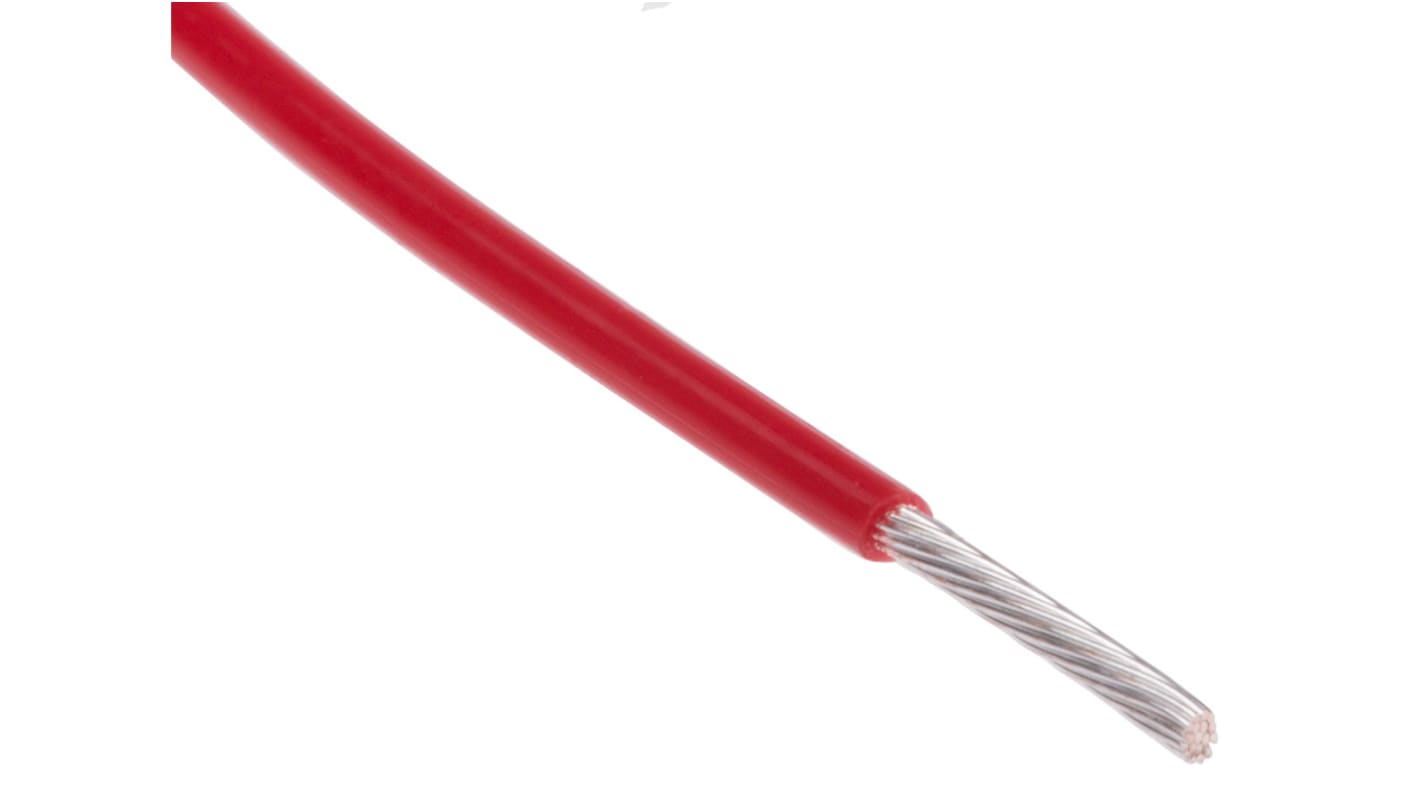

RS PRO Red 0.22mm² Hook Up Wire, 24 AWG, 7/0.2 mm, 25m, PTFE Insulation
- RS Stock No.:
- 841-7226
- Distrelec Article No.:
- 304-05-916
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 reel of 25 metres)*
£25.38
(exc. VAT)
£30.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 145 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
- Plus 80 unit(s) shipping from 13 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 1 | £25.38 | £1.015 |
| 2 + | £23.85 | £0.954 |
*price indicative
- RS Stock No.:
- 841-7226
- Distrelec Article No.:
- 304-05-916
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.22mm² | |
| Sheath Colour | Red | |
| American Wire Gauge | 24 AWG | |
| Core Strands | 7/0.2 mm | |
| Length | 25m | |
| Insulation Material | PTFE | |
| Voltage Rating | 300 V | |
| Outer Diameter | 0.95mm | |
| Minimum Operating Temperature | -75°C | |
| Maximum Operating Temperature | 200°C | |
| Conductor Material | Silver Plated Copper | |
| Standards Met | BS 3G 210:1996 | |
| Wire Style | BS3G210 | |
| Insulation Wall Thickness | 0.15mm | |
| Size of Strands | 0.2mm | |
| Number of Strands | 7 | |
| Resistant To | Fuels, Gasoline, Hydraulic Fluid, Lubricants, Oils | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.22mm² | ||
Sheath Colour Red | ||
American Wire Gauge 24 AWG | ||
Core Strands 7/0.2 mm | ||
Length 25m | ||
Insulation Material PTFE | ||
Voltage Rating 300 V | ||
Outer Diameter 0.95mm | ||
Minimum Operating Temperature -75°C | ||
Maximum Operating Temperature 200°C | ||
Conductor Material Silver Plated Copper | ||
Standards Met BS 3G 210:1996 | ||
Wire Style BS3G210 | ||
Insulation Wall Thickness 0.15mm | ||
Size of Strands 0.2mm | ||
Number of Strands 7 | ||
Resistant To Fuels, Gasoline, Hydraulic Fluid, Lubricants, Oils | ||
