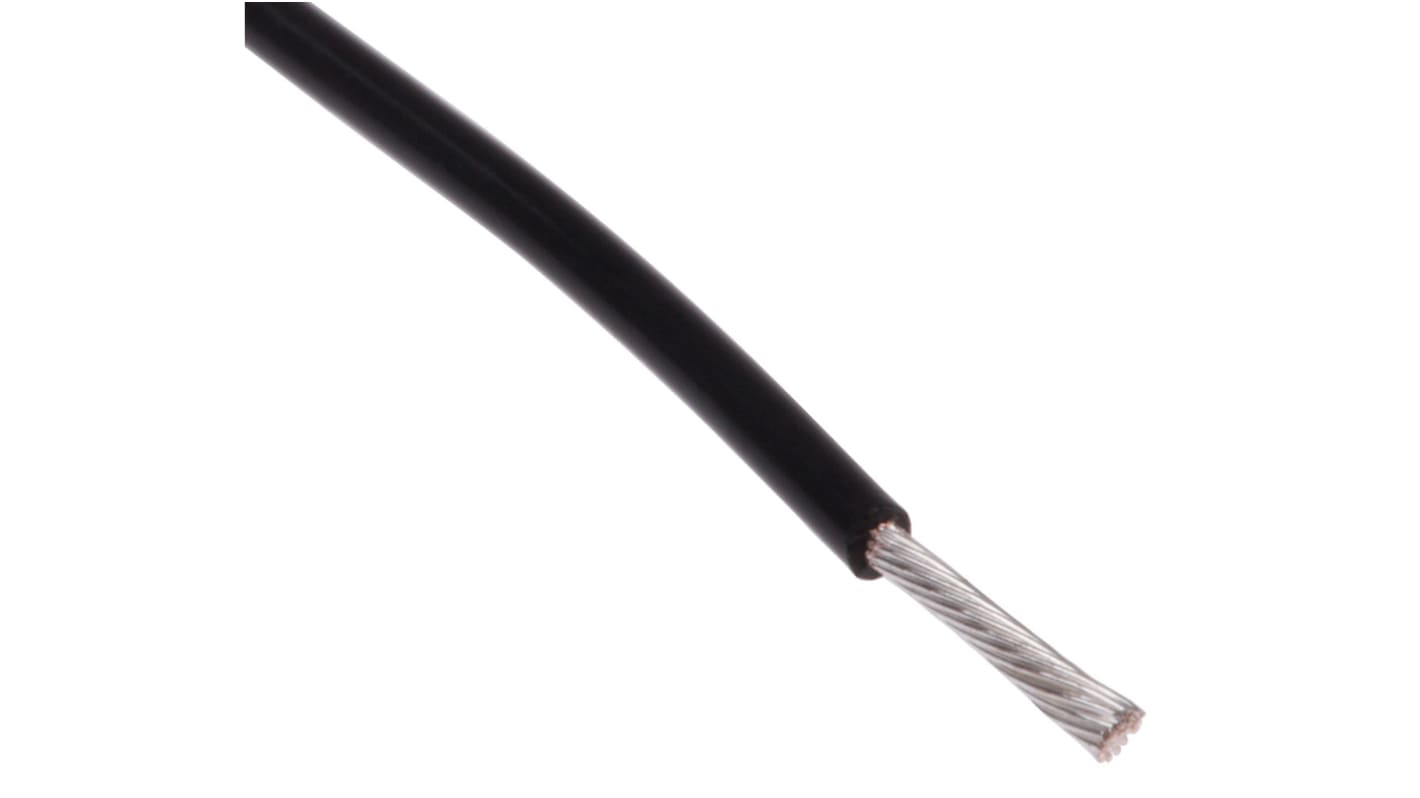

RS PRO Black 0.12mm² Hook Up Wire, 26 AWG, 7/0.15 mm, 25m, PTFE Insulation
- RS Stock No.:
- 841-7166
- Brand:
- RS PRO
Subtotal (1 reel of 25 metres)*
£23.95
(exc. VAT)
£28.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 99 unit(s) ready to ship
- Plus 36 unit(s) ready to ship from another location
- Plus 80 unit(s) shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £23.95 | £0.958 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£80.15
(exc. VAT)
£96.18
(inc. VAT)
- RS Stock No.:
- 841-7166
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.12mm² | |
| Sheath Colour | Black | |
| American Wire Gauge | 26 AWG | |
| Core Strands | 7/0.15 mm | |
| Length | 25m | |
| Insulation Material | PTFE | |
| Outer Diameter | 0.8mm | |
| Voltage Rating | 300 V | |
| Minimum Operating Temperature | -75°C | |
| Maximum Operating Temperature | 200°C | |
| Conductor Material | Silver Plated Copper | |
| Standards Met | BS 3G 210:1996 | |
| Wire Style | BS3G210 | |
| Insulation Wall Thickness | 0.15mm | |
| Size of Strands | 0.15mm | |
| Number of Strands | 7 | |
| Resistant To | Fuels, Gasoline, Hydraulic Fluid, Lubricants, Oils | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.12mm² | ||
Sheath Colour Black | ||
American Wire Gauge 26 AWG | ||
Core Strands 7/0.15 mm | ||
Length 25m | ||
Insulation Material PTFE | ||
Outer Diameter 0.8mm | ||
Voltage Rating 300 V | ||
Minimum Operating Temperature -75°C | ||
Maximum Operating Temperature 200°C | ||
Conductor Material Silver Plated Copper | ||
Standards Met BS 3G 210:1996 | ||
Wire Style BS3G210 | ||
Insulation Wall Thickness 0.15mm | ||
Size of Strands 0.15mm | ||
Number of Strands 7 | ||
Resistant To Fuels, Gasoline, Hydraulic Fluid, Lubricants, Oils | ||
