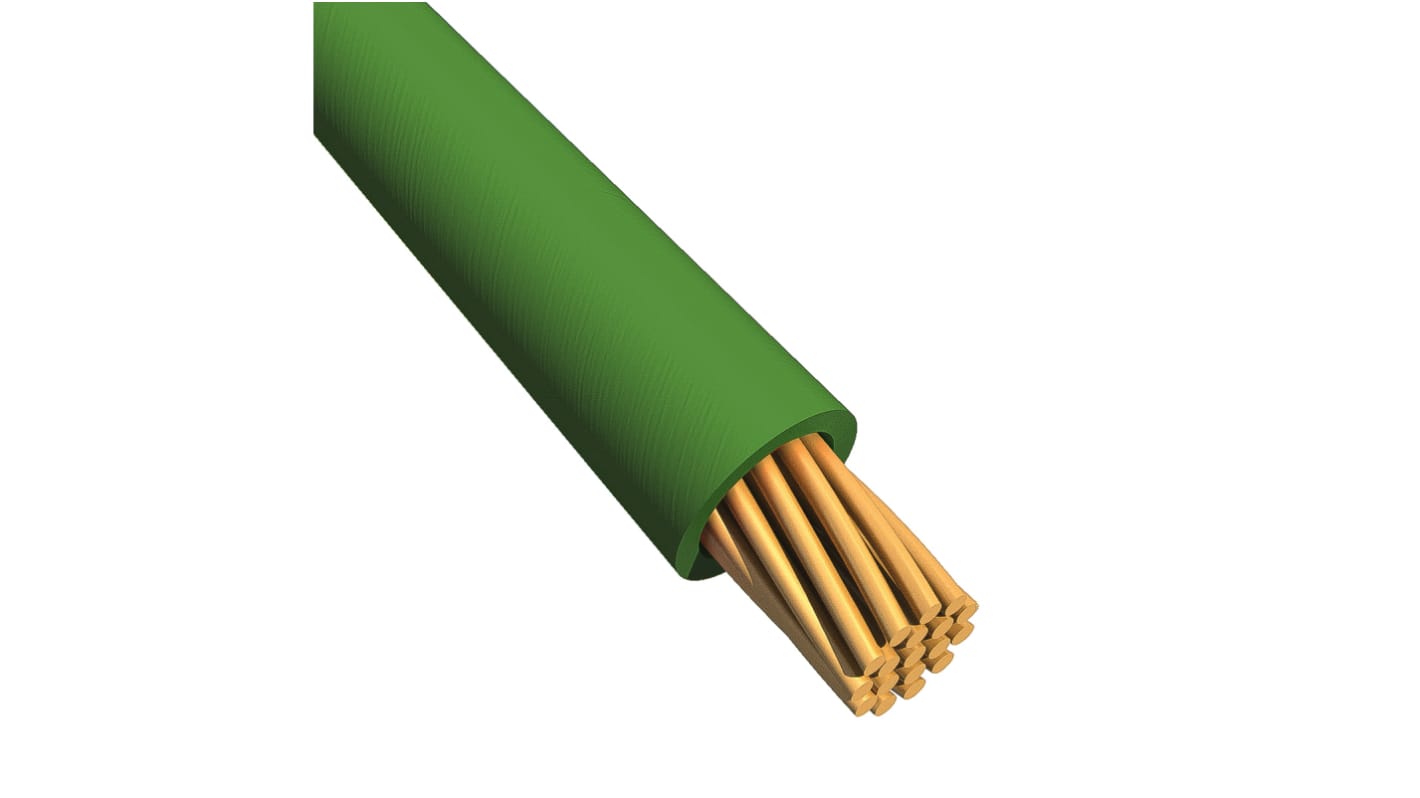

Alpha Wire EcoWire Series Green 2.1 mm² Hook Up Wire, 14 AWG, 41/0.25 mm, 305m, MPPE Insulation
- RS Stock No.:
- 838-5141
- Mfr. Part No.:
- 6717 GR001
- Brand:
- Alpha Wire
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 30 Metre(s)
£53.53
(exc. VAT)
£64.24
(inc. VAT)
- RS Stock No.:
- 838-5141
- Mfr. Part No.:
- 6717 GR001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 2.1 mm² | |
| Sheath Colour | Green | |
| American Wire Gauge | 14 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 41/0.25 mm | |
| Length | 305m | |
| Insulation Material | MPPE | |
| Voltage Rating | 600 V | |
| Outer Diameter | 2.44mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Conductor Material | Copper | |
| Wire Style | UL11028 | |
| Standards Met | CE, CSA, UL | |
| Series | EcoWire | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.3mm | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 41 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 2.1 mm² | ||
Sheath Colour Green | ||
American Wire Gauge 14 AWG | ||
Cable Shape Single Core | ||
Core Strands 41/0.25 mm | ||
Length 305m | ||
Insulation Material MPPE | ||
Voltage Rating 600 V | ||
Outer Diameter 2.44mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Copper | ||
Wire Style UL11028 | ||
Standards Met CE, CSA, UL | ||
Series EcoWire | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.3mm | ||
Size of Strands 0.25 mm | ||
Number of Strands 41 | ||
- COO (Country of Origin):
- US
Belden Ecogen Ecowire Series Hook Up Wire, 2.1mm² Cross Sectional Area, 30m Length - 6717 GR005
This hook-up wire is designed for a variety of electrical applications, featuring a single-core copper construction with a cross-sectional area of 2.1mm². The green MPPE insulated wire has an outer diameter of 2.44mm and is 30m in length, making it suitable for high-temperature environments with a voltage rating of 600V. With operating temperatures ranging from -40 °C to +105 °C, this unshielded wire complies with both CE and CSA standards.
Features & Benefits
• Copper conductor ensures excellent electrical conductivity
• MPPE insulation provides outstanding thermal stability
• Rated for 600V, suitable for diverse electrical applications
• High-temperature tolerance enhances durability and longevity
• Single-core design optimises flexibility and ease of installation
• Meets Ecogen Ecowire specifications for safety and performance
• MPPE insulation provides outstanding thermal stability
• Rated for 600V, suitable for diverse electrical applications
• High-temperature tolerance enhances durability and longevity
• Single-core design optimises flexibility and ease of installation
• Meets Ecogen Ecowire specifications for safety and performance
Applications
• Used for electrical connections in automation systems
• Ideal for wiring connections in electronics
• Suitable for in mechanical equipment
• Employed in various industrial assembly tasks
• Ideal for wiring connections in electronics
• Suitable for in mechanical equipment
• Employed in various industrial assembly tasks
What is the temperature range for this wire during operation?
The operating temperature for this wire varies from -40 °C to +105 °C, making it suitable for extreme environmental conditions.
How is the wire constructed to ensure flexibility?
The single-core design, combined with the 41 strands of copper, allows for greater flexibility, facilitating easier installation in tight spaces.
What electrical standards does this wire comply with?
This wire meets CSA and UL certifications, ensuring it adheres to important electrical safety guidelines, suitable for a wide range of applications.
What types of insulation materials are recommended for high-temperature uses?
The wire features MPPE insulation, which is specifically designed to withstand high temperatures while maintaining electrical integrity.
How does the wire's diameter affect installation?
With a diameter of 2.44mm, the wire's design allows for easy routing and connection in various electrical systems, ensuring effective performance without excessive bulk.
EcoWire ™
