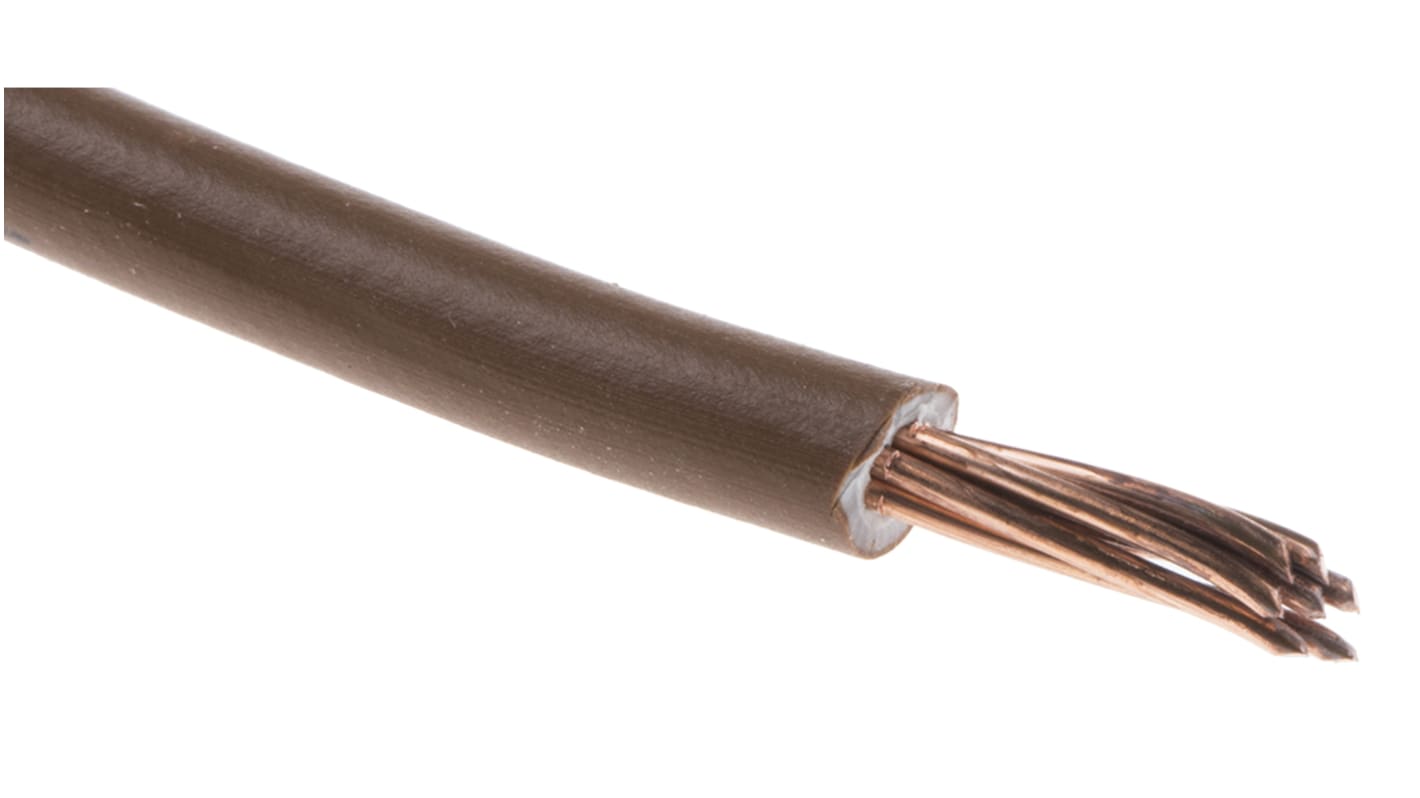

RS PRO Brown 2.5mm² Hook Up Wire, 14 AWG, 7/0.67 mm, 100m, PVC Insulation
- RS Stock No.:
- 836-0883
- Distrelec Article No.:
- 304-03-575
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£74.96
(exc. VAT)
£89.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 44 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £74.96 | £0.75 |
*price indicative
- RS Stock No.:
- 836-0883
- Distrelec Article No.:
- 304-03-575
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 2.5mm² | |
| Sheath Colour | Brown | |
| American Wire Gauge | 14 AWG | |
| Cable Shape | Round | |
| Core Strands | 7/0.67 mm | |
| Length | 100m | |
| European Harmonised Code | H07V-R | |
| Insulation Material | PVC | |
| Voltage Rating | 750 V | |
| Outer Diameter | 3.3 → 4mm | |
| CPR Certification | Eca | |
| Maximum Operating Temperature | +70°C | |
| Conductor Material | Copper | |
| Standards Met | Euroclass Eca | |
| Fire Behaviour | Flame Retardant | |
| Series | 6491X | |
| Insulation Wall Thickness | 0.8mm | |
| Harmonised Code | H07V-R | |
| Size of Strands | mm | |
| Number of Strands | 7 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 2.5mm² | ||
Sheath Colour Brown | ||
American Wire Gauge 14 AWG | ||
Cable Shape Round | ||
Core Strands 7/0.67 mm | ||
Length 100m | ||
European Harmonised Code H07V-R | ||
Insulation Material PVC | ||
Voltage Rating 750 V | ||
Outer Diameter 3.3 → 4mm | ||
CPR Certification Eca | ||
Maximum Operating Temperature +70°C | ||
Conductor Material Copper | ||
Standards Met Euroclass Eca | ||
Fire Behaviour Flame Retardant | ||
Series 6491X | ||
Insulation Wall Thickness 0.8mm | ||
Harmonised Code H07V-R | ||
Size of Strands mm | ||
Number of Strands 7 | ||
- COO (Country of Origin):
- TR
6491X H07V-R Conduit Cable
The 6491X cable H07V-R harmonized is suitable for power and lighting circuits and building wire.
For use in semi flush exposed and embedded conduits, closed installation ducts
Ideal for internal wiring appliances
PVC insulation
Class 2stranded copper conductor
Flame retardant
Ideal for internal wiring appliances
PVC insulation
Class 2stranded copper conductor
Flame retardant
Standards
EN 50525-2-31, IEC 60228, EN 50363-3, IEC 60332-1, RoHS
