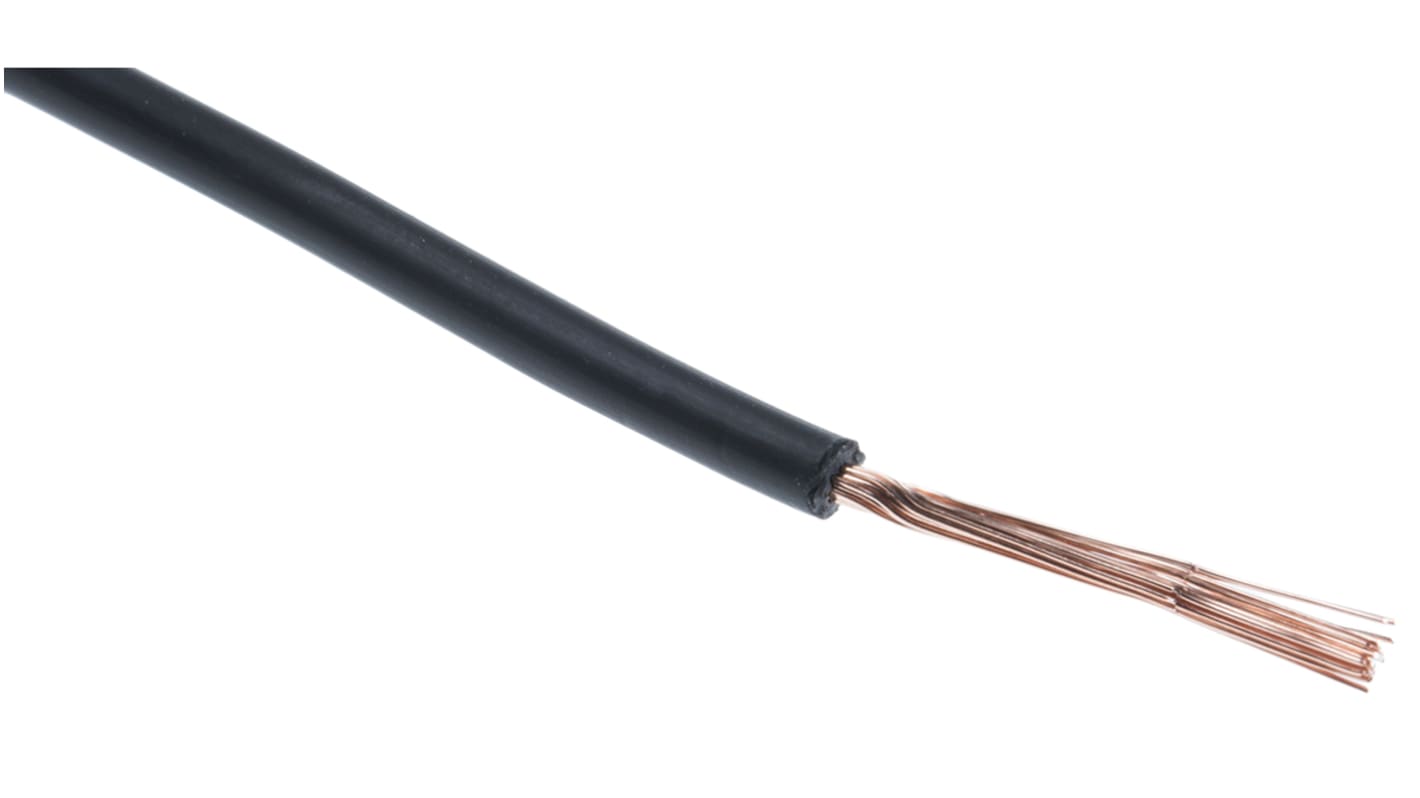

RS PRO Black 0.75mm² Hook Up Wire, 18 AWG, 22/1.0 mm, 100m, Polyolefin Cross-linked EI5 Insulation
- RS Stock No.:
- 836-0763
- Distrelec Article No.:
- 304-04-985
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£33.08
(exc. VAT)
£39.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 38 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
- Plus 30 unit(s) shipping from 20 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £33.08 | £0.331 |
*price indicative
- RS Stock No.:
- 836-0763
- Distrelec Article No.:
- 304-04-985
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.75mm² | |
| Sheath Colour | Black | |
| American Wire Gauge | 18 AWG | |
| Cable Shape | Round | |
| Core Strands | 22/1.0 mm | |
| Length | 100m | |
| Insulation Material | Polyolefin Cross-linked EI5 | |
| European Harmonised Code | H05Z-K | |
| Voltage Rating | 500 V | |
| Outer Diameter | 2.8mm | |
| Maximum Operating Temperature | +90°C | |
| Minimum Operating Temperature | -5°C | |
| CPR Certification | Eca | |
| Current Rating | 15A | |
| Conductor Material | Copper | |
| Standards Met | Euroclass Eca | |
| Fire Behaviour | Flame Retardant | |
| Series | 2491B | |
| Harmonised Code | H05Z-K | |
| Insulation Wall Thickness | 0.6mm | |
| Outer Sheath Material | XL HFFR | |
| Number of Strands | 22 | |
| Size of Strands | 1mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.75mm² | ||
Sheath Colour Black | ||
American Wire Gauge 18 AWG | ||
Cable Shape Round | ||
Core Strands 22/1.0 mm | ||
Length 100m | ||
Insulation Material Polyolefin Cross-linked EI5 | ||
European Harmonised Code H05Z-K | ||
Voltage Rating 500 V | ||
Outer Diameter 2.8mm | ||
Maximum Operating Temperature +90°C | ||
Minimum Operating Temperature -5°C | ||
CPR Certification Eca | ||
Current Rating 15A | ||
Conductor Material Copper | ||
Standards Met Euroclass Eca | ||
Fire Behaviour Flame Retardant | ||
Series 2491B | ||
Harmonised Code H05Z-K | ||
Insulation Wall Thickness 0.6mm | ||
Outer Sheath Material XL HFFR | ||
Number of Strands 22 | ||
Size of Strands 1mm | ||
- COO (Country of Origin):
- TR
RS PRO Black Equipment Wire, 0.75 mm², 100 m
This RS PRO equipment wire is specifically designed for use with pipes and ducts, as well as the internal wiring of appliances. This versatile product has a flexible copper core and can be installed in a variety of circuit boards, sockets and household electrical applications.
The cable jacket is made from a cross-linked polymer material, meaning it has been molded by both heat and pressure. This gives the insulation a greater resistance to cracking, cutting and corrosion, making for a more durable product.
The cable sheath has good heat resistance and can operate at temperatures of up to +90°C. It's also a low smoke zero halogen (LSZH) material, meaning it won't produce toxic fumes or excess smoke in the event of fire, so the cable is safe to install in populated areas.
The cable jacket is made from a cross-linked polymer material, meaning it has been molded by both heat and pressure. This gives the insulation a greater resistance to cracking, cutting and corrosion, making for a more durable product.
The cable sheath has good heat resistance and can operate at temperatures of up to +90°C. It's also a low smoke zero halogen (LSZH) material, meaning it won't produce toxic fumes or excess smoke in the event of fire, so the cable is safe to install in populated areas.
Features and Benefits
• American wire gauge size of 18 AWG
• Round cable shape
• Copper conductor material
• Core strand size of 1 mm
• Cross-sectional area of 0.75 mm²
• H05Z-K harmonised code for low-voltage flexible cables
• Polyolefin cross-linked EI5 insulation material
• Insulation wall thickness of 0.6 mm
• Length of 100 m
• Operating temperature range of -5°C to +90°C
• 22 strands
• Outer diameter of 2.8 mm
• Black sheath colour
• Meets Euroclass Eca fire safety standards
• Equipment wire type
• Voltage rating of 500 V
• Round cable shape
• Copper conductor material
• Core strand size of 1 mm
• Cross-sectional area of 0.75 mm²
• H05Z-K harmonised code for low-voltage flexible cables
• Polyolefin cross-linked EI5 insulation material
• Insulation wall thickness of 0.6 mm
• Length of 100 m
• Operating temperature range of -5°C to +90°C
• 22 strands
• Outer diameter of 2.8 mm
• Black sheath colour
• Meets Euroclass Eca fire safety standards
• Equipment wire type
• Voltage rating of 500 V
