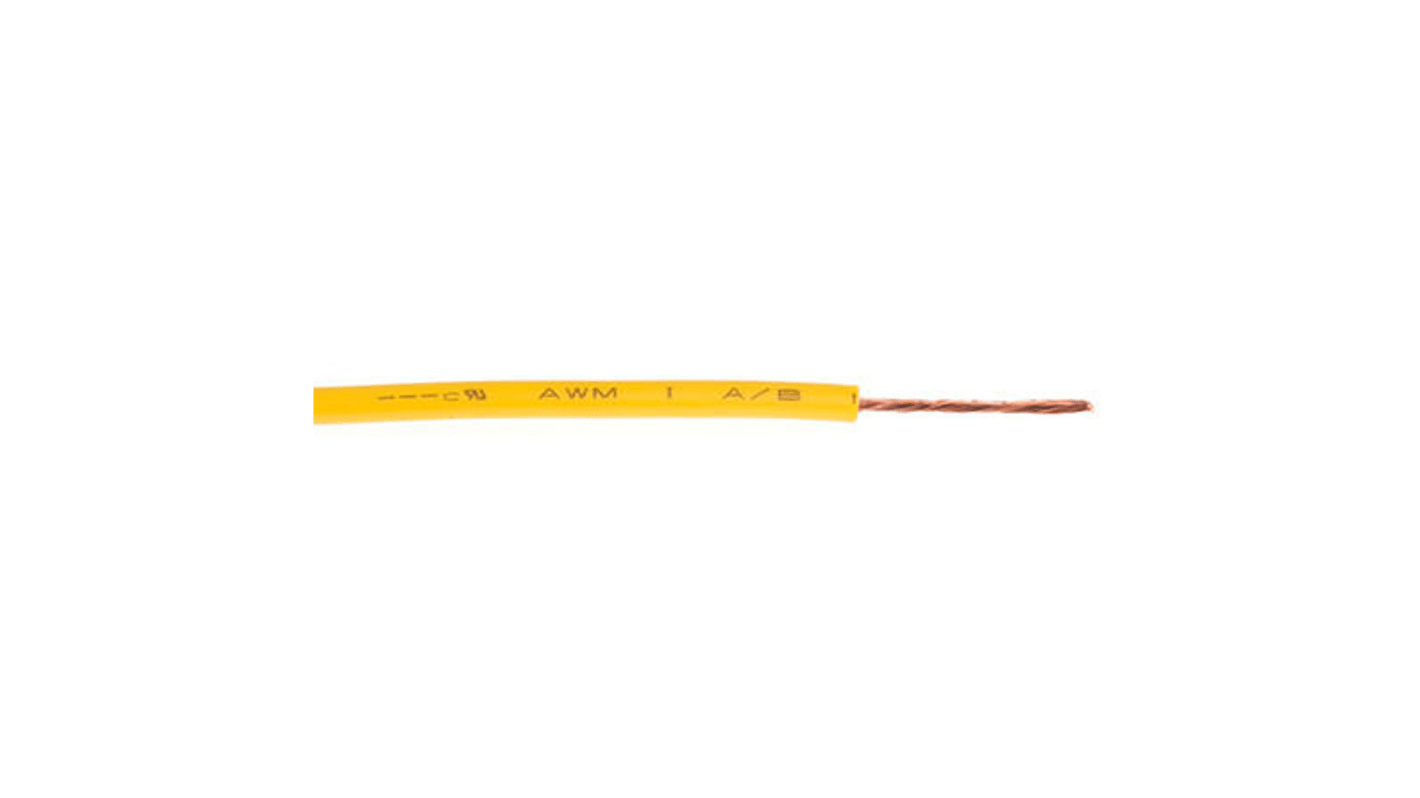

RS PRO Yellow 4 mm² Tri-rated Cable, 11 AWG, 56/0.3 mm, 25m, PVC Insulation
- RS Stock No.:
- 811-4475
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 811-4475
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 4 mm² | |
| Sheath Colour | Yellow | |
| American Wire Gauge | 11 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 56/0.3 mm | |
| Length | 25m | |
| Insulation Material | PVC | |
| Outer Diameter | 4.8mm | |
| Voltage Rating | 1 kV | |
| Maximum Operating Temperature | +70°C | |
| Conductor Material | Copper | |
| Standards Met | BS 6231 | |
| Tri-rated | Yes | |
| Insulation Wall Thickness | 0.8mm | |
| Number of Strands | 56 | |
| Size of Strands | 0.3 mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 4 mm² | ||
Sheath Colour Yellow | ||
American Wire Gauge 11 AWG | ||
Cable Shape Single Core | ||
Core Strands 56/0.3 mm | ||
Length 25m | ||
Insulation Material PVC | ||
Outer Diameter 4.8mm | ||
Voltage Rating 1 kV | ||
Maximum Operating Temperature +70°C | ||
Conductor Material Copper | ||
Standards Met BS 6231 | ||
Tri-rated Yes | ||
Insulation Wall Thickness 0.8mm | ||
Number of Strands 56 | ||
Size of Strands 0.3 mm | ||
- COO (Country of Origin):
- GB
RS PRO Single Core Control Cable – Type BK
From RS PRO, comes a range of high quality and great value single core control cables. Manufactured with a premium annealed copper conductor and insulated with PVC (polyvinyl chloride). These cables are supplied on a reel and are the ideal solution for switchgear and control gear wiring.
Features and Benefits
• Maximum operating temperature of 70°C
• Voltage rating of 1000 V
• Availale length:100 m or 25m
• Single core cable – Flexible Type BK
• Insulation: PVC
• Meets BS6231 standards
• Flame retardant
• Voltage rating of 1000 V
• Availale length:100 m or 25m
• Single core cable – Flexible Type BK
• Insulation: PVC
• Meets BS6231 standards
• Flame retardant
Applications
Single core control cable has a variety of application use such as;
• Electrical cabinets
• Industrial electrical installations
• Small electronic devices
• Relay and instrumentation panels
• Control metering
• Motor starters
• Industrial electrical installations
• Small electronic devices
• Relay and instrumentation panels
• Control metering
• Motor starters
Why would you choose RS PRO for single core control cable?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
Standards
BS6231
