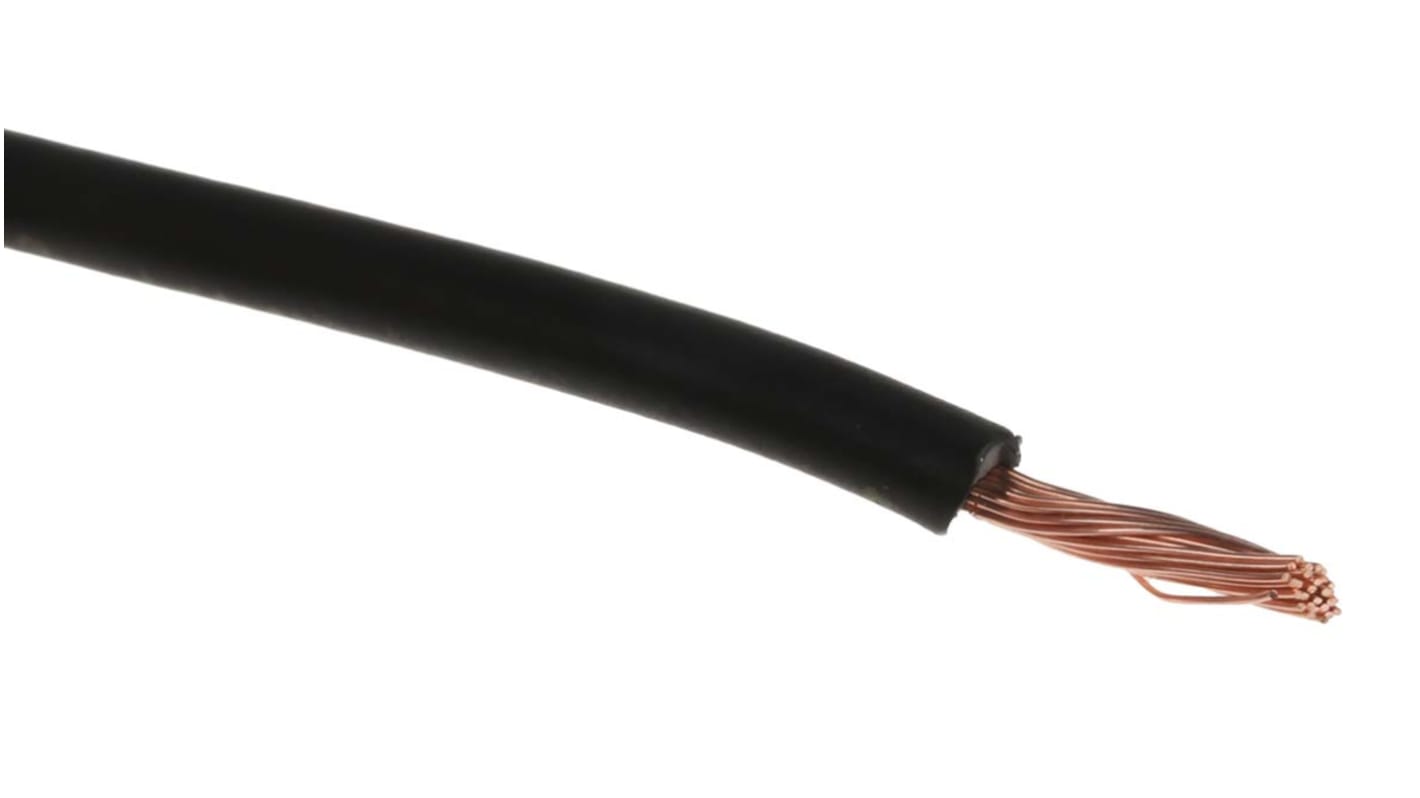

RS PRO Black 1mm² Hook Up Wire, 17 AWG, 32/0.2 mm, 100m, Zero Halogen Insulation

RS Stock No.:: 763-7595
Brand:: RS PRO

RS PRO Black 1mm² Hook Up Wire, 17 AWG, 32/0.2 mm, 100m, Zero Halogen Insulation

Subtotal (1 reel of 100 metres)*

£49.83

(exc. VAT)

£59.80

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

25 unit(s) ready to ship
Plus 4 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£49.83	£0.498

*price indicative

RS Stock No.:: 763-7595
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Cross Sectional Area	1mm²
	Sheath Colour	Black
	Cable Shape	Single Core
	American Wire Gauge	17 AWG
	Core Strands	32/0.2 mm
	Length	100m
	European Harmonised Code	H05Z-K
	Insulation Material	Zero Halogen
	Outer Diameter	2.52mm
	Voltage Rating	500 V
	Maximum Operating Temperature	+90°C
	Minimum Operating Temperature	0°C
	Conductor Material	Copper
	Standards Met	BS EN 50525-3-41, Class 5 IEC 60228, IEC 60332-1-2, RoHS Compliant
	Wire Style	2491B
	Insulation Wall Thickness	0.6mm
	Harmonised Code	H05Z-K
	Shield Type	Unshielded
	Number of Strands	32
	Size of Strands	0.2mm
	Outer Sheath Material	LSZH

	Select all
	Brand RS PRO
	Cross Sectional Area 1mm²
	Sheath Colour Black
	Cable Shape Single Core
	American Wire Gauge 17 AWG
	Core Strands 32/0.2 mm
	Length 100m
	European Harmonised Code H05Z-K
	Insulation Material Zero Halogen
	Outer Diameter 2.52mm
	Voltage Rating 500 V
	Maximum Operating Temperature +90°C
	Minimum Operating Temperature 0°C
	Conductor Material Copper
	Standards Met BS EN 50525-3-41, Class 5 IEC 60228, IEC 60332-1-2, RoHS Compliant
	Wire Style 2491B
	Insulation Wall Thickness 0.6mm
	Harmonised Code H05Z-K
	Shield Type Unshielded
	Number of Strands 32
	Size of Strands 0.2mm
	Outer Sheath Material LSZH

COO (Country of Origin):: GB

RS Pro Hook Up Wire

Brought to you by RS Pro, a range of equipment wire suitable for internal electronic wiring within circuit boards and control panels. supplied with a PVC insulation and supplied on a reel, this hook up wire is an excellent addition for your application. All models are highly reliable and excellent quality.

Features and Benefits

• Copper conductor
• Manufactured to BS7211
• BASEC certified
• LSZH

What is hookup wire?

Hook up wire, or copper wire/equipment wire as it's also called is primarily used for low voltage and current applications. Copper strands are sheathed by a cover. And act as the conductor of electricity to power its target. Frequently found within everyday household and workplace appliances, hook up wire is a common occurrence. If a device has multiple wires to operate, hook up wire will usually be installed with different sheath colours on their respective terminals. This is to avoid the confusion of a "spaghetti junction" of wires.

What is hook up wire used for?

This equipment wire can be applied to endless applications. these can range from domestic household appliances, industrial equipment and factory machine. Due to the reliability of the copper conductors, these types of wires are usually the preferred choice with any internal wiring system. As an example, these are some common places you would find equipment wire:

• Circuit boards
• Computer internals
• Mobile phones and other battery operated devices
• Vehicle lights

Benefits of a copper conductor

Copper is the go to metal for nearly all cable. Due to the excellent conduction of electricity it provides. Circuit boards, telephone lines, power cables (including multicore) all use copper as the solid interior of their wire. There are different variations of copper available, such as:

• Silver plated copper
• Annealed copper
• Nickel plated copper
• Tinned copper
