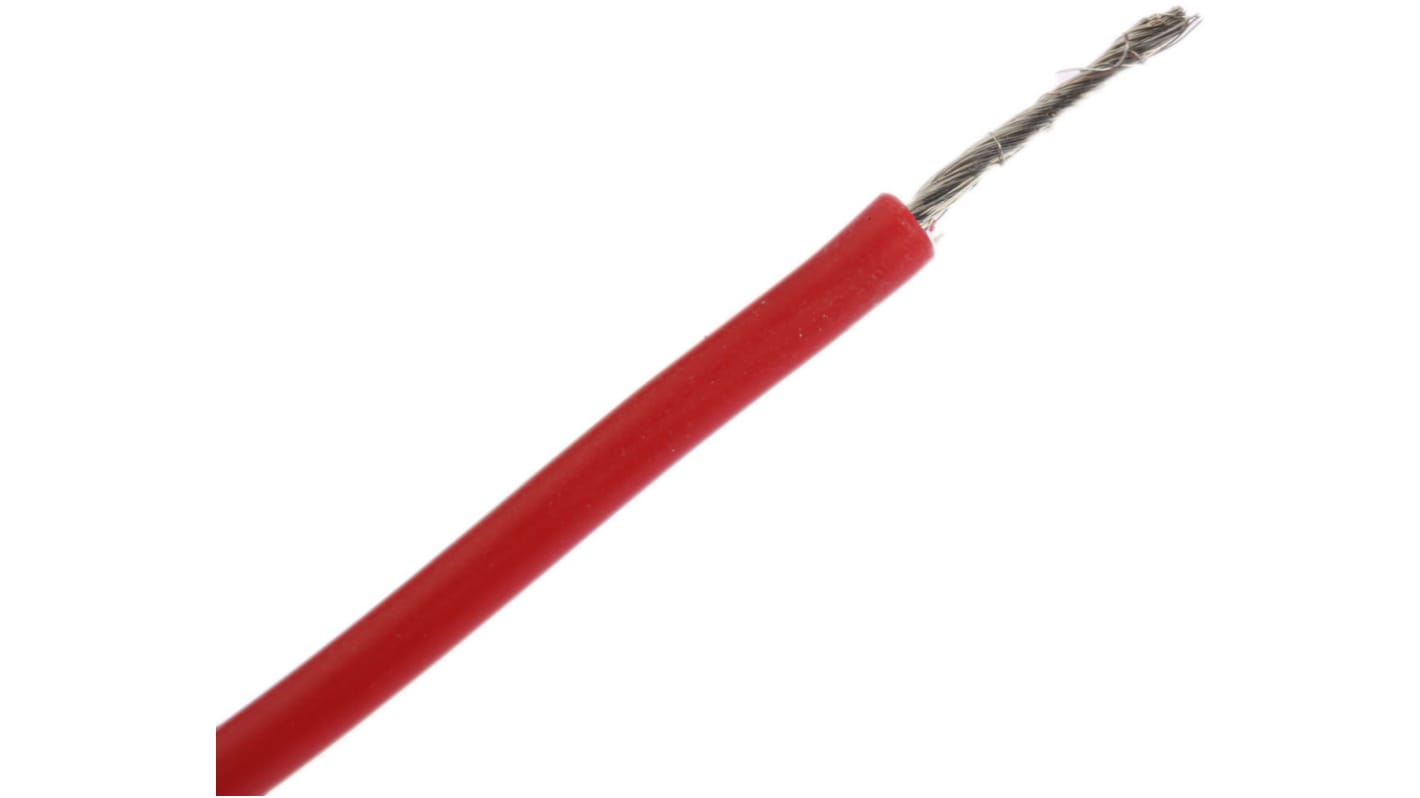

RS PRO Red 1 mm² Test Lead Wire, 17 AWG, 332/0.06 mm, 5m, Silicone Insulation
- RS Stock No.:
- 748-1964
- Brand:
- RS PRO
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 5 Metre(s)
£13.59
(exc. VAT)
£16.31
(inc. VAT)
- RS Stock No.:
- 748-1964
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 1 mm² | |
| Sheath Colour | Red | |
| Cable Shape | Single Core | |
| American Wire Gauge | 17 AWG | |
| Core Strands | 332/0.06 mm | |
| Length | 5m | |
| Insulation Material | Silicone | |
| Outer Diameter | 3.3mm | |
| Voltage Rating | 500 V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +200°C | |
| Current Rating | 19 A | |
| Conductor Material | Tinned Copper | |
| Insulation Wall Thickness | 1mm | |
| Shield Type | Tinned Copper | |
| Size of Strands | 0.06 mm | |
| Number of Strands | 332 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 1 mm² | ||
Sheath Colour Red | ||
Cable Shape Single Core | ||
American Wire Gauge 17 AWG | ||
Core Strands 332/0.06 mm | ||
Length 5m | ||
Insulation Material Silicone | ||
Outer Diameter 3.3mm | ||
Voltage Rating 500 V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +200°C | ||
Current Rating 19 A | ||
Conductor Material Tinned Copper | ||
Insulation Wall Thickness 1mm | ||
Shield Type Tinned Copper | ||
Size of Strands 0.06 mm | ||
Number of Strands 332 | ||
- COO (Country of Origin):
- CN
RS PRO Tinned Copper Test Lead Wire 1 mm² CSA 500 V 19 A Red Silicone, 332 Strands 5 m
If you need to use test or monitoring equipment in demanding environmental conditions, turn to this test lead wire from RS PRO.
Supplied in a 5-metre length, this wire has an outer diameter of 3.3 mm and a cross-sectional area of 1 mm². It has a core made up of 332 tinned copper strands for greater flexibility and higher resistance than solid wire. The red silicone sheath has a thickness of 1 mm and protects the wire from extreme heat or cold. It's safe for use at temperatures between -55°C and +200°C.
This wire meets international electrostatic control standards, meaning it's flame-retardant and reduces the risk of electrostatic shock. With a current rating of 19 A, it's safe for high-current applications.
The durability and high current rating of this product make it useful for harsh chemical and manufacturing environments where exposure to extreme temperatures, radiation and oils is likely.
Supplied in a 5-metre length, this wire has an outer diameter of 3.3 mm and a cross-sectional area of 1 mm². It has a core made up of 332 tinned copper strands for greater flexibility and higher resistance than solid wire. The red silicone sheath has a thickness of 1 mm and protects the wire from extreme heat or cold. It's safe for use at temperatures between -55°C and +200°C.
This wire meets international electrostatic control standards, meaning it's flame-retardant and reduces the risk of electrostatic shock. With a current rating of 19 A, it's safe for high-current applications.
The durability and high current rating of this product make it useful for harsh chemical and manufacturing environments where exposure to extreme temperatures, radiation and oils is likely.
Features and Benefits
• Test lead wire
• Red silicone sheath
• Core of 332 tinned copper strands of 0.06 mm each
• Length of 5 m
• Outer diameter of 3.3 mm
• Cross-sectional area of 1 mm²
• Insulation wall thickness of 1 mm
• American Wire Gauge (AWG) 17
• Voltage rating of 500 V
• Current rating of 19 A
• Minimum operating temperature of -55°C
• Maximum operating temperature of +200°C
• Red silicone sheath
• Core of 332 tinned copper strands of 0.06 mm each
• Length of 5 m
• Outer diameter of 3.3 mm
• Cross-sectional area of 1 mm²
• Insulation wall thickness of 1 mm
• American Wire Gauge (AWG) 17
• Voltage rating of 500 V
• Current rating of 19 A
• Minimum operating temperature of -55°C
• Maximum operating temperature of +200°C
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
