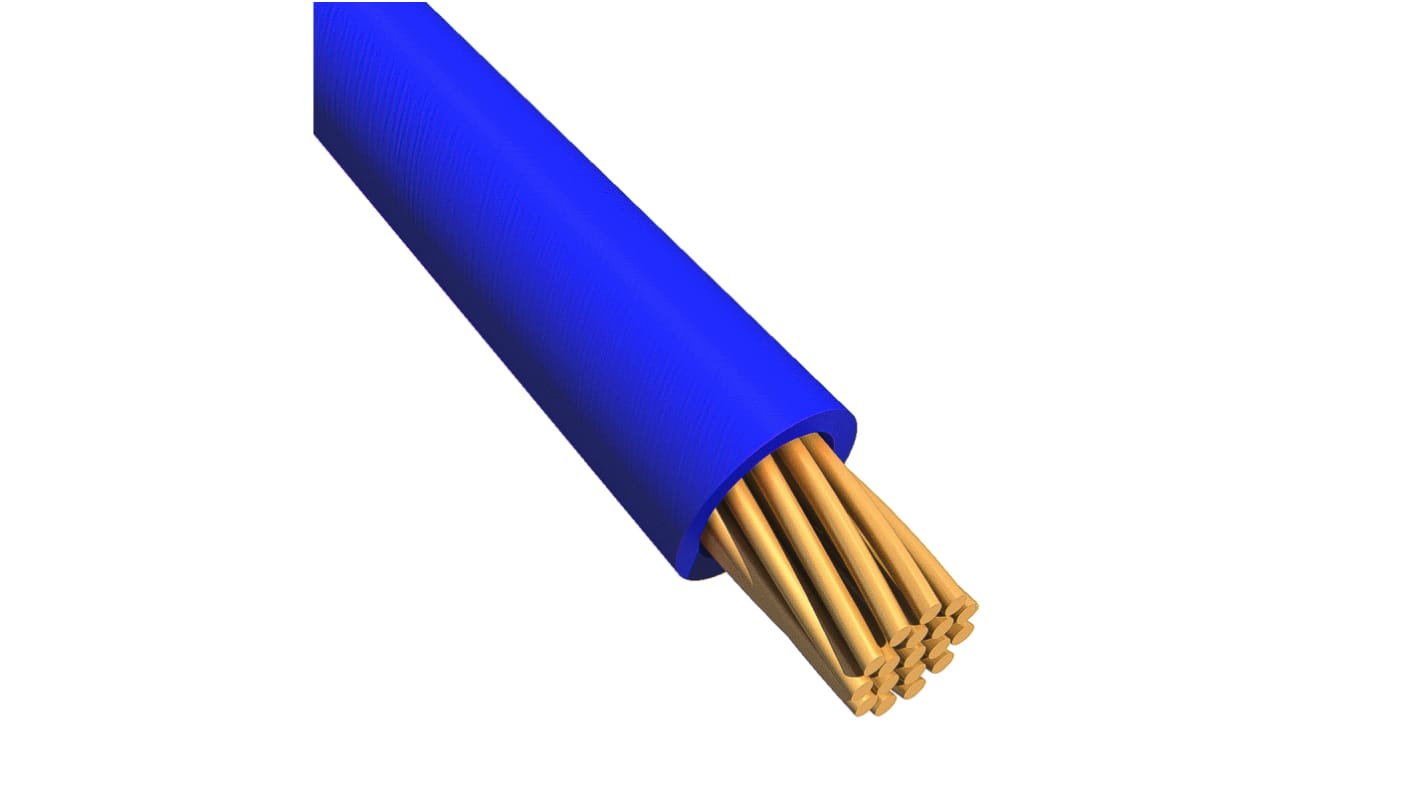

Alpha Wire Ecogen Ecowire Series Blue 0.75 mm² Hook Up Wire, 18 AWG, 16/0.25 mm, 305m, MPPE Insulation
- RS Stock No.:
- 741-8133
- Mfr. Part No.:
- 6715 BL001
- Brand:
- Alpha Wire
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price 1 Reel of 305 Metre(s)
£210.35
(exc. VAT)
£252.42
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | £210.35 | £0.69 |
| 5 - 9 | £200.88 | £0.659 |
| 10 + | £191.42 | £0.628 |
| *price indicative | ||
- RS Stock No.:
- 741-8133
- Mfr. Part No.:
- 6715 BL001
- Brand:
- Alpha Wire
Legislation and Compliance
Product Details
Alpha Wire 600 V, mPPE Hook Up Wire, EcoWire Series
EcoWire from Alpha Wire is the latest innovation in hook-up wire. EcoWire combines increased performance with a minimal environmental impact due to it being fully recyclable.
This hook up wire is manufactured from a modified polyphenylene ether (mPPE) thermoplastic. EcoWire can be easily recycled since it does not contain hazardous materials. The enhanced dielectric properties of this hook up wire make it possible to have a reduced wall thickness while still maintaining the same electrical properties as PVC.
This hook up wire is manufactured from a modified polyphenylene ether (mPPE) thermoplastic. EcoWire can be easily recycled since it does not contain hazardous materials. The enhanced dielectric properties of this hook up wire make it possible to have a reduced wall thickness while still maintaining the same electrical properties as PVC.
Features and Benefits
• Fully recyclable
• Up to 45% smaller diameter than PVC
• Up to 40% lighter than other insulation materials
• Excellent dielectric strength
• Low specific gravity
• Flame retardant to UL VW-1 rating
• EcoWire Plus range available with excellent resistance to hazardous oils and chemicals
• Stranded or solid tinned copper conductors
• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
• Up to 45% smaller diameter than PVC
• Up to 40% lighter than other insulation materials
• Excellent dielectric strength
• Low specific gravity
• Flame retardant to UL VW-1 rating
• EcoWire Plus range available with excellent resistance to hazardous oils and chemicals
• Stranded or solid tinned copper conductors
• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
What is UL/CSA standard?
The UL standard (Underwriters Laboratories) is a recognised certificate that requires the rigorous testing of product samples to determine whether the product meets specific, defined requirements. These requirements are often based on UL's published and nationally recognised Standards for Safety.
CSA approval (Canadian Standards Association) provides product testing and certification for electrical, mechanical, plumbing, gas and various other products. This approval is recognised in Canada, the U.S and various countries around the world. It includes a stringent series of flame tests on wires and cables.
Product Application Information
Hook up wire is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines and appliances.
Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.
Standards
UL AWM 11028 VW-1, CSA AWM I A/B FT1, RoHS/RoHS2 Compliant, IEC 60332-2 Flame Behavior, REACH Compliant, CE Compliant
Belden Alpha Wire Hook Up Wire, Unshielded, 600V Voltage Rating - EcoWire Series - 6715 BL005
Searching for a reliable hook up wire that helps maintain your green credentials? Try this eco-friendly option from Belden Alpha Wire. It's easily recyclable as it contains no hazardous materials, making it a sustainable choice. This high-performance piece of kit is up to 40% lighter and its diameter is up to 45% narrower than equivalent PVC-jacketed wires, thanks to its mPPE insulation. This means it fits comfortably in tight spaces.
Features & Benefits
• Compatible with extreme conditions thanks to a wide operating temperature range of -40°C to +105°C
• Hefty 600V voltage rating easily handles high-powered systems
• Single stranded copper core is highly conductive for a connection you can rely on
• Hefty 600V voltage rating easily handles high-powered systems
• Single stranded copper core is highly conductive for a connection you can rely on
Applications
• Automotive manufacturing
• Industrial automation
• Control panels
• Industrial automation
• Control panels
Is this product fire-safe?
Yes – the flame-retardant sheath is self-extinguishing in under 60 seconds to help stop fires from spreading.
EcoWire ™
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 0.75 mm² |
| Sheath Colour | Blue |
| Cable Shape | Single Core |
| American Wire Gauge | 18 AWG |
| Core Strands | 16/0.25 mm |
| Length | 305m |
| Insulation Material | MPPE |
| Voltage Rating | 600 V |
| Outer Diameter | 1.7mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Conductor Material | Copper |
| Wire Style | UL11028 |
| Standards Met | CE, CSA, UL |
| Series | Ecogen Ecowire |
| Insulation Wall Thickness | 0.3mm |
| Shield Type | Unshielded |
| Size of Strands | 0.25 mm |
| Number of Strands | 16 |
