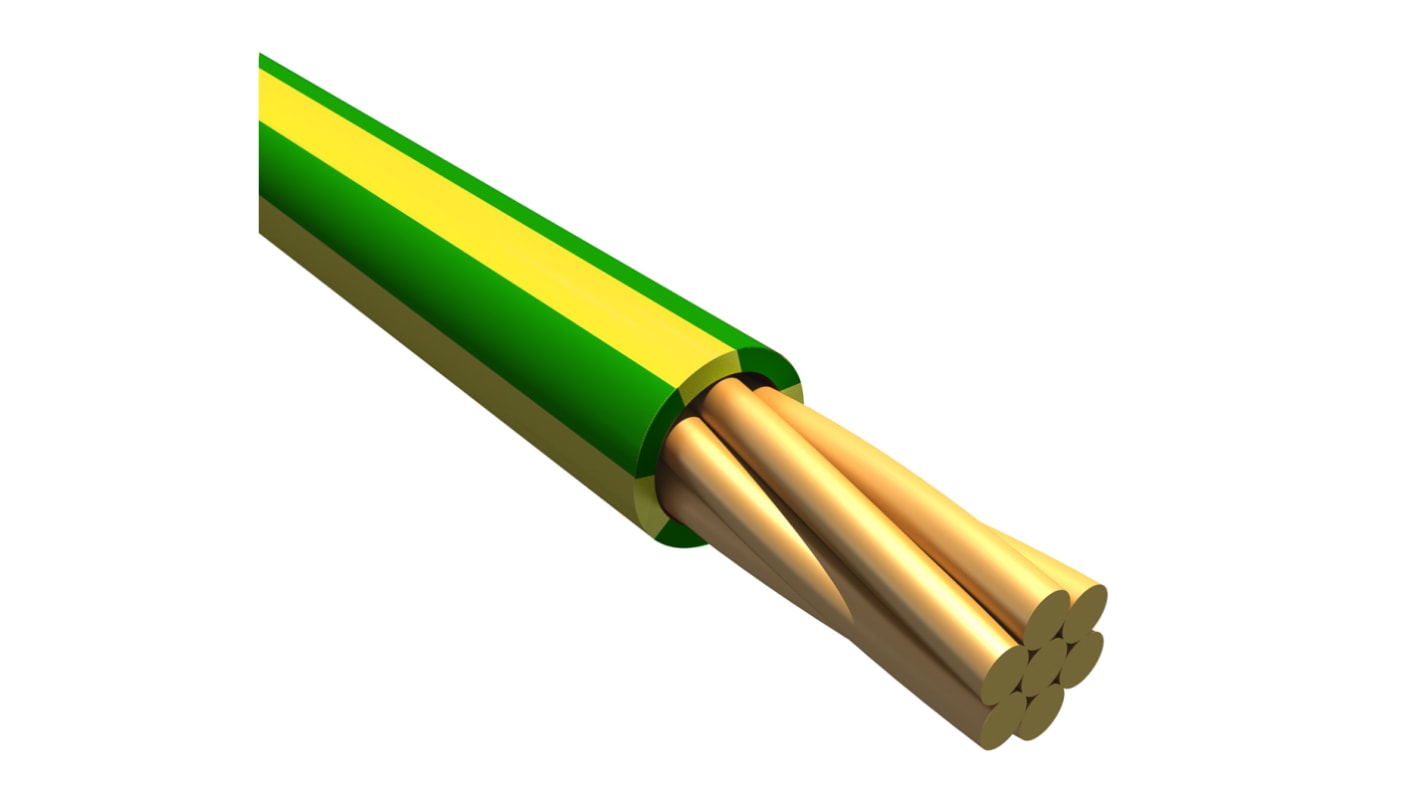

Alpha Wire Ecogen Ecowire Series Green/Yellow 0.33 mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 305m, MPPE Insulation, 6713
- RS Stock No.:
- 741-8085
- Mfr. Part No.:
- 6713 GY001
- Brand:
- Alpha Wire
Subtotal (1 reel of 305 metres)*
£202.85
(exc. VAT)
£243.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 3 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £202.85 | £0.665 |
*price indicative
- RS Stock No.:
- 741-8085
- Mfr. Part No.:
- 6713 GY001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.33 mm² | |
| Sheath Colour | Green/Yellow | |
| American Wire Gauge | 22 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 7/0.25 mm | |
| Length | 305m | |
| Insulation Material | MPPE | |
| Outer Diameter | 1.24mm | |
| Voltage Rating | 600 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Conductor Material | Copper | |
| Wire Style | UL11028 | |
| Standards Met | CE, CSA, UL | |
| Series | Ecogen Ecowire | |
| Insulation Wall Thickness | 0.3mm | |
| Shield Type | Unshielded | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 7 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.33 mm² | ||
Sheath Colour Green/Yellow | ||
American Wire Gauge 22 AWG | ||
Cable Shape Single Core | ||
Core Strands 7/0.25 mm | ||
Length 305m | ||
Insulation Material MPPE | ||
Outer Diameter 1.24mm | ||
Voltage Rating 600 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Copper | ||
Wire Style UL11028 | ||
Standards Met CE, CSA, UL | ||
Series Ecogen Ecowire | ||
Insulation Wall Thickness 0.3mm | ||
Shield Type Unshielded | ||
Size of Strands 0.25 mm | ||
Number of Strands 7 | ||
Belden Ecogen Ecowire Series Hook Up Wire, 0.33 mm² Cross Sectional Area, Green/Yellow Sheath - 6713 GY005
This hook up wire is an essential component in electrical applications, designed for high-temperature environments. With a cross-sectional area of 0.33 mm² and a length of 30m, this unshielded cable features a green/yellow sheath, offering durability and flexibility for diverse projects. It is constructed using tinned copper for enhanced conductivity, meeting crucial electrical standards.
Features & Benefits
• High-temperature rating of +105°C expands application range
• Flexible 22 AWG wire allows easy installation in tight spaces
• EcoCable construction supports environmentally responsible choices
• MPPE insulation ensures durability and resistance to wear
• Voltage rating of 600V provides reliable energy transmission
• 7 strands of 0.25mm tinned copper ensure optimal conductivity
• Flexible 22 AWG wire allows easy installation in tight spaces
• EcoCable construction supports environmentally responsible choices
• MPPE insulation ensures durability and resistance to wear
• Voltage rating of 600V provides reliable energy transmission
• 7 strands of 0.25mm tinned copper ensure optimal conductivity
Applications
• Used for internal wiring in machinery and automation systems
• Ideal for electrical connections in control panels
• Suitable for installations requiring high temperature resistance
• Effective for interconnections in electronic devices and equipment
• Utilised in various automotive and mechanical
• Ideal for electrical connections in control panels
• Suitable for installations requiring high temperature resistance
• Effective for interconnections in electronic devices and equipment
• Utilised in various automotive and mechanical
What type of insulation does this product use and how does it perform?
The insulation is made of modified polyphenylether (MPPE), providing robust thermal stability and mechanical protection, making it suitable for environments with extreme temperature conditions, from -40°C to +105°C.
How does this wire ensure safety and compliance in electrical applications?
It meets significant industry standards, including UL and CSA approvals, ensuring its use is safe in multiple applications, reducing risks associated with electrical faults.
What is the significance of the tinned copper conductor in this wire?
Tinned copper enhances the wire's resistance to corrosion and provides excellent electrical conductivity, ensuring long-term performance in various applications without degradation.
EcoWire ™
