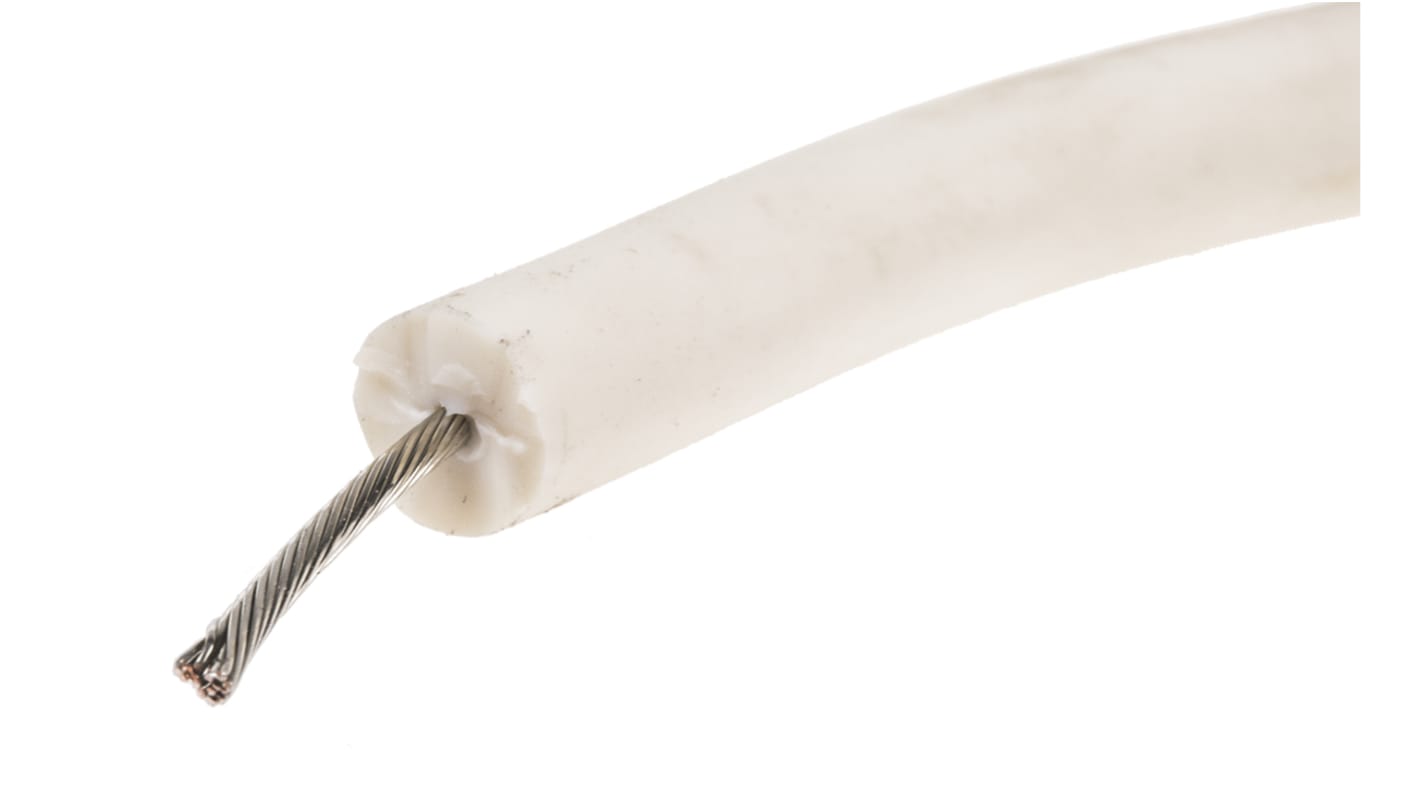

Alpha Wire Hook-up Wire Silicone Series White 0.75 mm² Hook Up Wire, 18 AWG, 16/0.25 mm, 30m, Silicone Rubber
- RS Stock No.:
- 741-7887
- Mfr. Part No.:
- 391897 WH005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£357.93
(exc. VAT)
£429.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 10 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £357.93 | £11.931 |
*price indicative
- RS Stock No.:
- 741-7887
- Mfr. Part No.:
- 391897 WH005
- Brand:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.75 mm² | |
| Sheath Colour | White | |
| Cable Shape | Single Core | |
| American Wire Gauge | 18 AWG | |
| Core Strands | 16/0.25 mm | |
| Length | 30m | |
| Insulation Material | Silicone Rubber | |
| Voltage Rating | 40 kV dc | |
| Outer Diameter | 6.12mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +150°C | |
| Conductor Material | Copper | |
| Wire Style | UL3239 | |
| Standards Met | UL Listed | |
| Series | Hook-up Wire Silicone | |
| Insulation Wall Thickness | 2.5mm | |
| Number of Strands | 16 | |
| Size of Strands | 0.25 mm | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.75 mm² | ||
Sheath Colour White | ||
Cable Shape Single Core | ||
American Wire Gauge 18 AWG | ||
Core Strands 16/0.25 mm | ||
Length 30m | ||
Insulation Material Silicone Rubber | ||
Voltage Rating 40 kV dc | ||
Outer Diameter 6.12mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +150°C | ||
Conductor Material Copper | ||
Wire Style UL3239 | ||
Standards Met UL Listed | ||
Series Hook-up Wire Silicone | ||
Insulation Wall Thickness 2.5mm | ||
Number of Strands 16 | ||
Size of Strands 0.25 mm | ||
