Alpha Wire Ecogen Ecowire Series Brown 3.3 mm² Hook Up Wire, 12 AWG, 65, 30 m, Modified Polyphenilether, 6718 BR005

View all Hook Up Wire

Subtotal (1 reel of 30 metres)*

£74.39

(exc. VAT)

£89.27

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 5 unit(s) shipping from 12 May 2026
  • Plus 55 unit(s) shipping from 29 June 2026
  • Plus 11 unit(s) shipping from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£74.39£2.48

*price indicative

RS Stock No.:
687-7657
Mfr. Part No.:
6718 BR005
Brand:
Alpha Wire
Find similar products by selecting one or more attributes.
Select all

Brand

Alpha Wire

Product Type

Hook Up Wire

Cross Sectional Area

3.3mm²

Jacket Colour

Brown

American Wire Gauge

12AWG

Core Strands

65

Cable Length

30m

Outside Diameter

0.117in

Voltage

600V

Maximum Operating Temperature

105°C

Conductor Material

Copper

Jacket Material

Modified Polyphenilether

Sub Type

EcoWire

Cable Type

Hookup

Minimum Operating Temperature

-40°C

Standards/Approvals

CE, CSA, UL

Fire Behaviour

Flammability Test: VW-1

Series

Ecogen Ecowire

Belden Ecogen Ecowire Series Hook Up Wire, 3.3mm² Cross Sectional Area, Brown Jacket - 6718 BR005

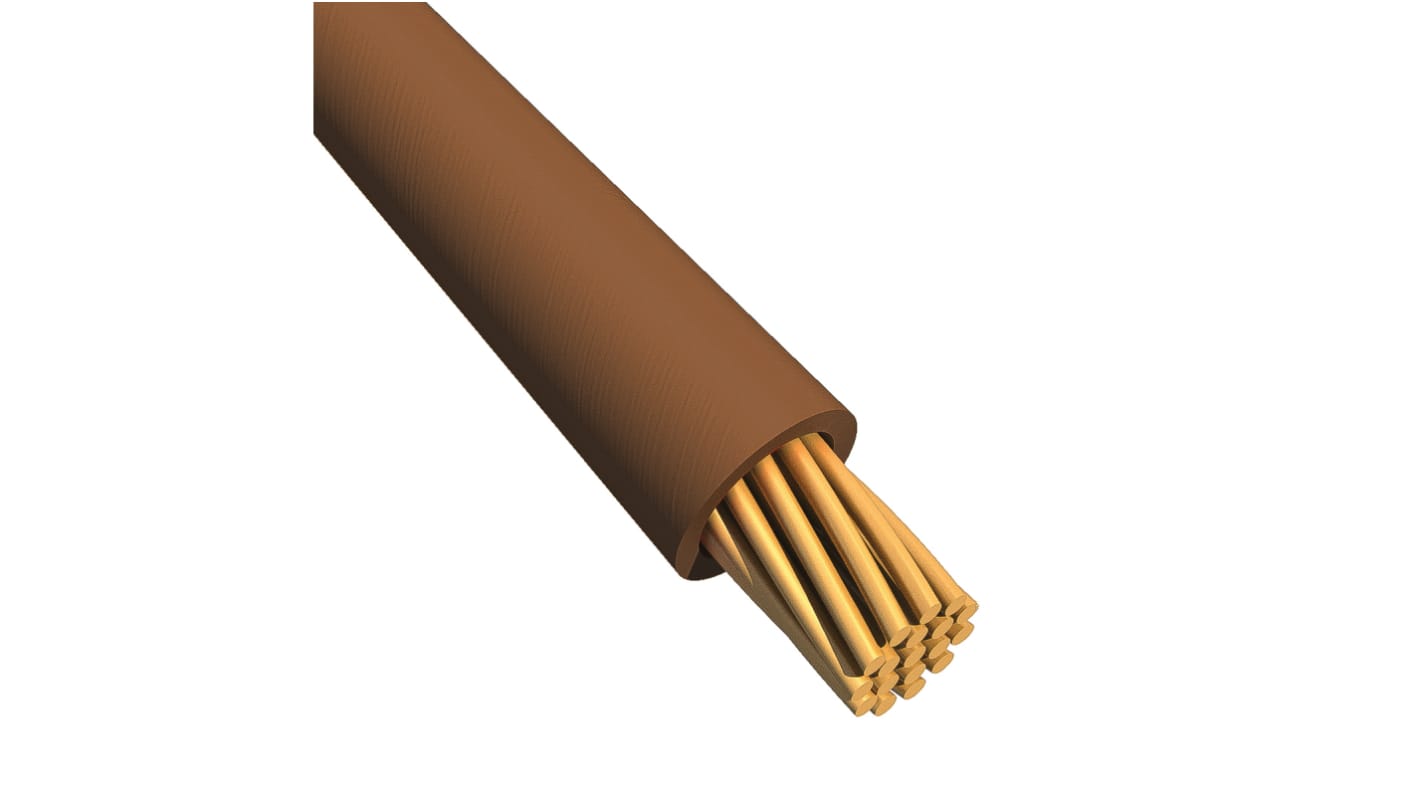

This hookup wire is a flexible single-core conductor intended for internal wiring in control panels, appliances and electrical assemblies where elevated temperature performance and reduced halogen content are required. It combines a multi-strand copper conductor with a polymer jacket formulated to avoid silicone and minimise hazardous emissions during combustion, allowing use in demanding industrial and electronic environments.

Features & Benefits


• 65-strand copper conductor provides increased flexibility for routing
• 3.3mm² cross-sectional area supports moderate current-carrying capacity
• Rated to 600Vrms for common low-voltage industrial systems
• Maximum operating temperature 105°C enables high-temperature routing
• Minimum operating temperature -40°C maintains pliability in cold conditions
• Flammability tested to VW-1 for improved fire-behaviour assessment

**Applications**


• Suitable for internal wiring of automation control panels
• Ideal for wiring industrial electronic equipment and assemblies
• Used for interconnections in electrical cabinets and junction boxes
• Can be used for wiring within mechanical systems requiring heat resistance

What conductor construction aids flexibility during installation?


The conductor comprises multiple fine copper strands which allow tight bending radii and repeated movement without significant work‑hardening.

How does the jacketing material affect chemical exposure and soldering?


The modified polyphenylether jacket is silicone‑free, reducing contamination risk during soldering and assembly processes where silicone residues are undesirable.

Which recognised approvals cover suitability for appliance and industrial use?


The wire carries approvals including UL AWM/STYLE 11028 and CSA RU AWM I A/B FT1 reflecting evaluation for appliance wiring materials and flame performance.

What environmental compliance does the product meet for restricted substances?


It is manufactured in accordance with RoHS and REACH requirements, addressing regulated substance controls for industrial components.

What is the typical overall thickness relevant to panel routing?


The outside diameter measures 0.117in, informing conduit fill and bending calculations.

Standards

UL AWM 11028 VW-1, CSA AWM I A/B FT1, RoHS/RoHS2 Compliant, IEC 60332-2 Flame Behavior, REACH Compliant, CE Compliant
