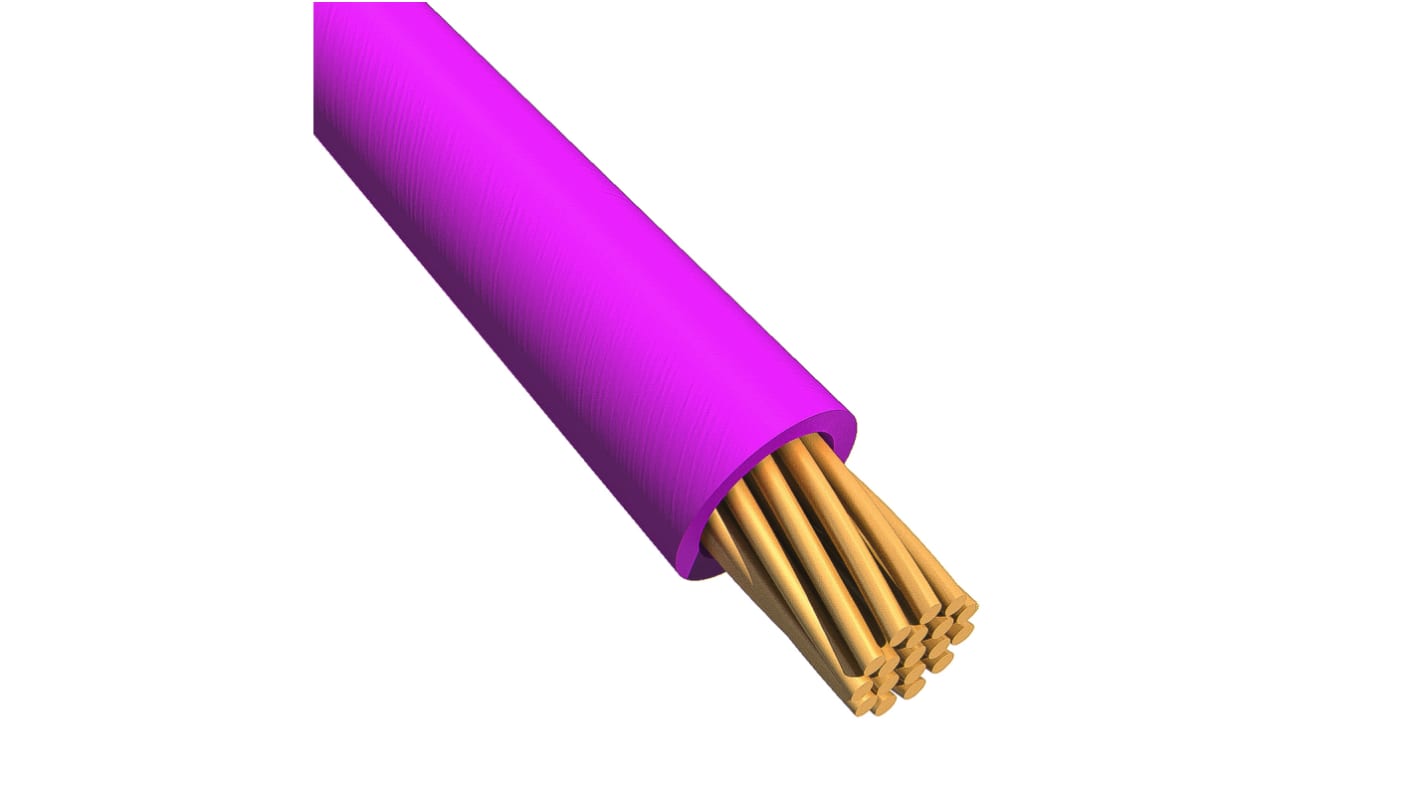

Alpha Wire Ecogen Ecowire Series Purple 0.52 mm² Hook Up Wire, 20 AWG, 10, 30 m, Modified Polyphenilether, 6714 VI005

View all Hook Up Wire

Subtotal (1 reel of 30 metres)*

£28.26

(exc. VAT)

£33.91

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 11 unit(s) ready to ship
  • Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£28.26£0.942

*price indicative

RS Stock No.:
687-7525
Distrelec Article No.:
300-59-350
Mfr. Part No.:
6714 VI005
Brand:
Alpha Wire
Find similar products by selecting one or more attributes.
Select all

Brand

Alpha Wire

Product Type

Hook Up Wire

Cross Sectional Area

0.52mm²

Jacket Colour

Purple

American Wire Gauge

20AWG

Core Strands

10

Cable Length

30m

Outside Diameter

1.4mm

Voltage

600V

Maximum Operating Temperature

105°C

Conductor Material

Copper

Minimum Operating Temperature

-40°C

Sub Type

EcoWire

Standards/Approvals

CE, CSA, UL

Cable Type

Hookup

Jacket Material

Modified Polyphenilether

Fire Behaviour

Flammability Test: VW-1

Series

Ecogen Ecowire

Belden Ecogen Ecowire Series Hook Up Wire, 0.52mm² Cross Sectional Area, Violet Jacket - 6714 VI001


This hook‑up wire is a single‑core electrical conductor designed for control, signal and interconnection tasks in industrial and electronic systems. It combines a multi‑strand copper conductor with a specialised polymer jacket to provide flexible electrical continuity in environments requiring elevated temperature resistance and defined flame performance.

Features & Benefits


• 10‑strand copper conductor delivers flexible current‑carrying capability
• 0.52 mm² cross‑section supports 600V system voltage
• Polyurethane/modified polyphenylene ether sheath offers chemical resistance
• Rated to operate between −40 and 105 °C for wide temperature ranges
• Meets IEC 60332‑2 flame behaviour for confined‑fire performance
• Compliant with multiple safety standards for equipment integration

**Applications**


• Suitable for wiring control panels in automation systems
• Used for signal interconnects in electrical cabinets
• Ideal for harnesses in mechanical equipment requiring flexibility
• Can be used for factory wiring where elevated temperature occurs
• Used with machine tool internal wiring subject to movement

What conductor construction aids routing in tight assemblies?


The conductor is formed from multiple fine copper strands which increase flexibility, making it easier to route through confined or moving assemblies.

How is the cable packaged for continuous installation runs?


It is available in various continuous lengths including 25,000 ft, 5,000 ft, 1,000 ft and 100 ft spool options to suit long‑run installations and minimise jointing.

Which standards cover the cable’s electrical and flame performance?


The cable conforms to relevant UL AWM styles and CSA AWM FT ratings while meeting specified international flame‑behaviour criteria and RoHS/REACH material restrictions.

What mechanical limits should installers consider during assembly?


The specified maximum pull tension for handling during installation is 7.9 lb and a recommended bend radius is ten times the cable diameter.

Standards

UL AWM 11028 VW-1, CSA AWM I A/B FT1, RoHS/RoHS2 Compliant, IEC 60332-2 Flame Behavior, REACH Compliant, CE Compliant
