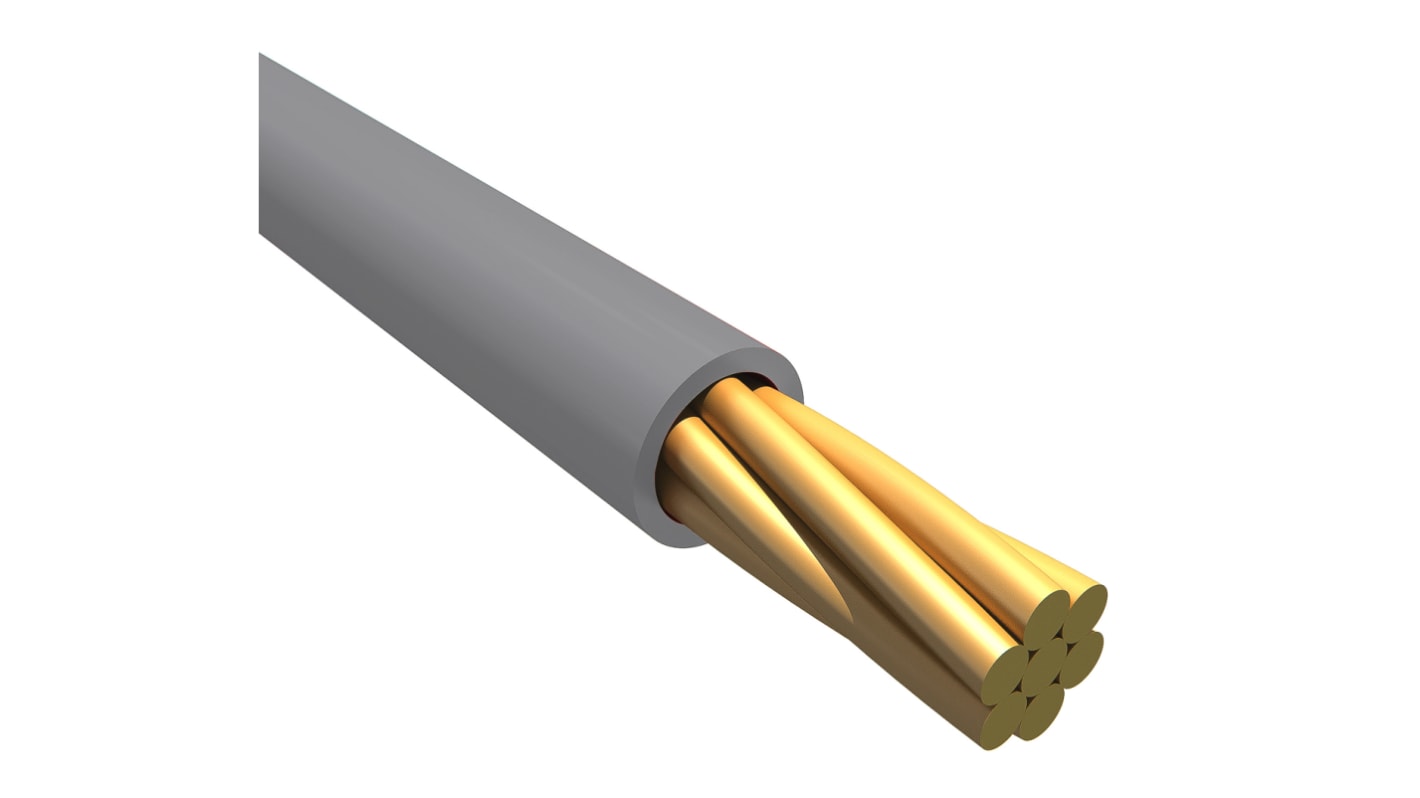

Alpha Wire Ecogen Ecowire Series Grey 0.2 mm² Hook Up Wire, 24 AWG, 7/0.20 mm, 30m, MPPE Insulation, 6712 SL005
- RS Stock No.:
- 687-7449
- Distrelec Article No.:
- 300-59-327
- Mfr. Part No.:
- 6712 SL005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£24.51
(exc. VAT)
£29.41
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 26 unit(s) shipping from 29 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £24.51 | £0.817 |
*price indicative
- RS Stock No.:
- 687-7449
- Distrelec Article No.:
- 300-59-327
- Mfr. Part No.:
- 6712 SL005
- Brand:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.2 mm² | |
| Sheath Colour | Grey | |
| Cable Shape | Single Core | |
| American Wire Gauge | 24 AWG | |
| Core Strands | 7/0.20 mm | |
| Length | 30m | |
| Insulation Material | MPPE | |
| Outer Diameter | 1.09mm | |
| Voltage Rating | 600 V | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Copper | |
| Standards Met | CE, CSA, UL | |
| Wire Style | UL11028 | |
| Series | Ecogen Ecowire | |
| Insulation Wall Thickness | 0.3mm | |
| Shield Type | Unshielded | |
| Size of Strands | 0.2 mm | |
| Number of Strands | 7 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.2 mm² | ||
Sheath Colour Grey | ||
Cable Shape Single Core | ||
American Wire Gauge 24 AWG | ||
Core Strands 7/0.20 mm | ||
Length 30m | ||
Insulation Material MPPE | ||
Outer Diameter 1.09mm | ||
Voltage Rating 600 V | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Copper | ||
Standards Met CE, CSA, UL | ||
Wire Style UL11028 | ||
Series Ecogen Ecowire | ||
Insulation Wall Thickness 0.3mm | ||
Shield Type Unshielded | ||
Size of Strands 0.2 mm | ||
Number of Strands 7 | ||
