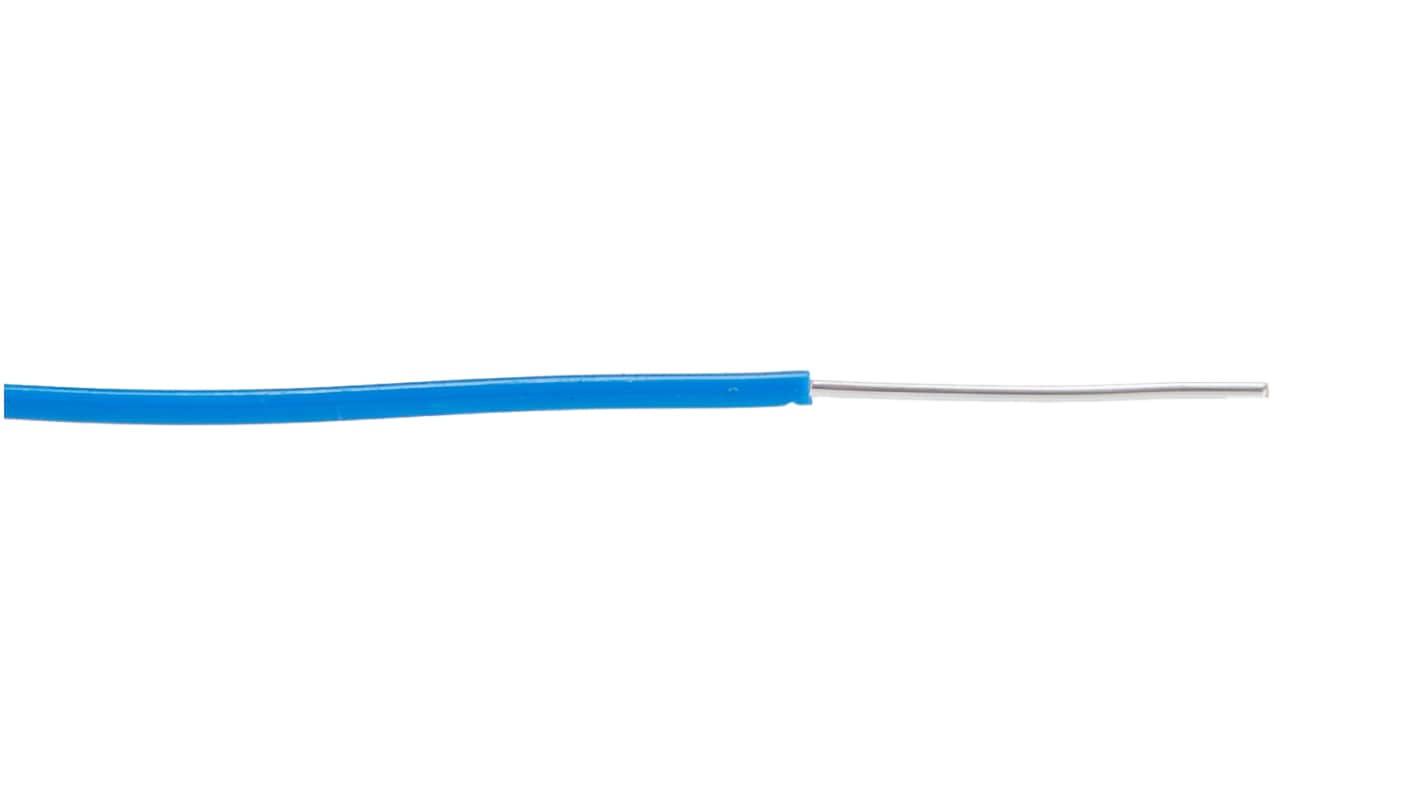

Alpha Wire Hookup Wire TEFLON Series Blue 0.25 mm² Hook Up Wire, 24 AWG, 1, 30.5 m, Polytetrafluoroethylene, 2854/1
- RS Stock No.:
- 277-3689
- Distrelec Article No.:
- 300-94-189
- Mfr. Part No.:
- 2854/1 BL001
- Brand:
- Alpha Wire
Subtotal (1 reel of 305 metres)*
£518.15
(exc. VAT)
£621.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £518.15 | £1.699 |
*price indicative
- RS Stock No.:
- 277-3689
- Distrelec Article No.:
- 300-94-189
- Mfr. Part No.:
- 2854/1 BL001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 0.25 mm² | |
| Jacket Colour | Blue | |
| American Wire Gauge | 24AWG | |
| Core Strands | 1 | |
| Cable Length | 30.5m | |
| Outside Diameter | 1.02 mm | |
| Voltage | 250 V | |
| Maximum Operating Temperature | 200°C | |
| Conductor Material | Silver Plated Copper | |
| Minimum Operating Temperature | -60°C | |
| Jacket Material | Polytetrafluoroethylene | |
| Standards/Approvals | EC 1907/2006, EU 2015/863/EU, EU RoHS II 2011/65/EU | |
| Cable Type | Single Core | |
| Series | Hookup Wire TEFLON | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 0.25 mm² | ||
Jacket Colour Blue | ||
American Wire Gauge 24AWG | ||
Core Strands 1 | ||
Cable Length 30.5m | ||
Outside Diameter 1.02 mm | ||
Voltage 250 V | ||
Maximum Operating Temperature 200°C | ||
Conductor Material Silver Plated Copper | ||
Minimum Operating Temperature -60°C | ||
Jacket Material Polytetrafluoroethylene | ||
Standards/Approvals EC 1907/2006, EU 2015/863/EU, EU RoHS II 2011/65/EU | ||
Cable Type Single Core | ||
Series Hookup Wire TEFLON | ||
RoHS Status: Exempt
The Alpha Wire Hook up wire from Alpha means you will find the product exactly suited to your application. whether its as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high temperature oven, or off road construction equipment.
Resistance to chemicals
High electrical performance
Resistance to oil and solvents
Ability to withstand wear and abrasion
Bend radius is 10 times the cable diameter
