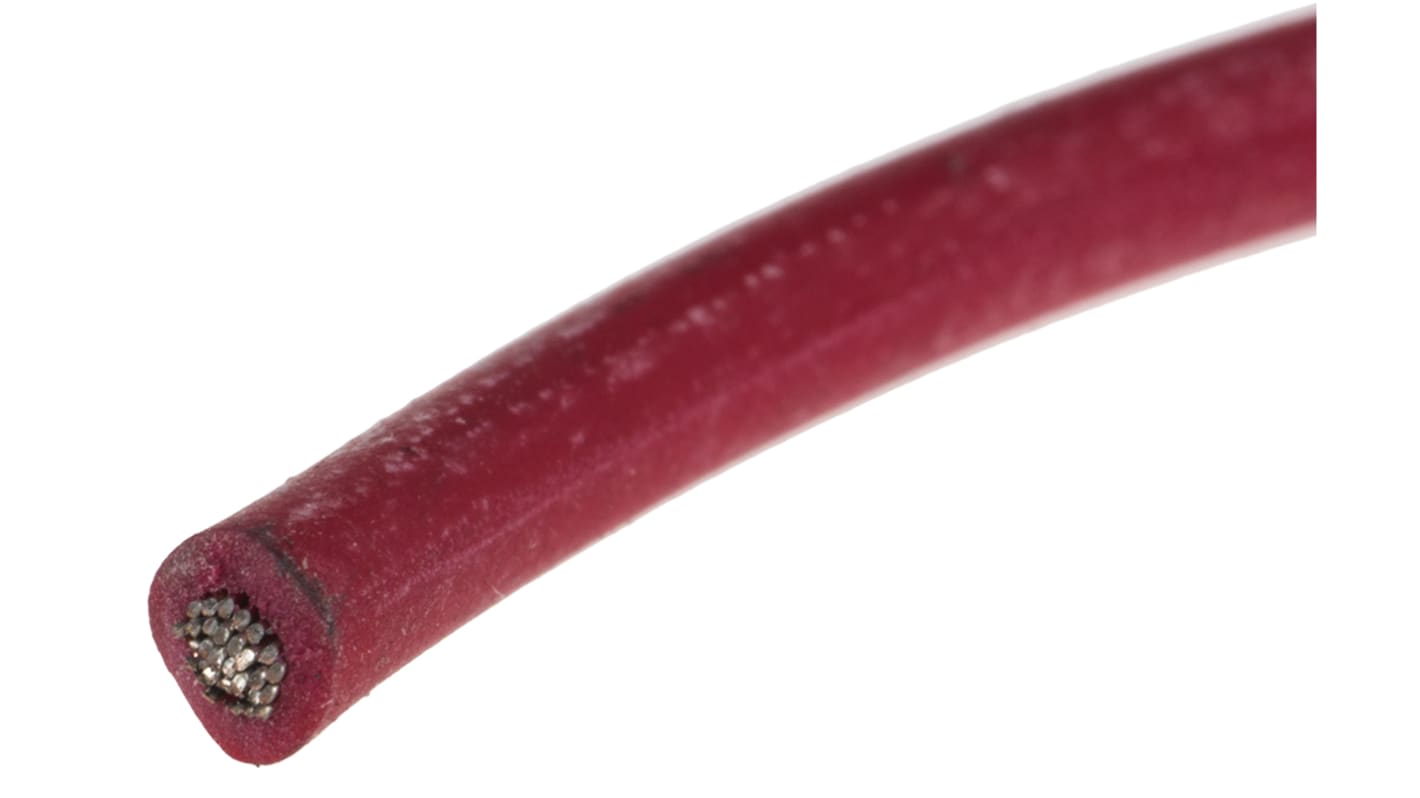

RS PRO Red 1 mm² Hook Up Wire, 32/0.2 mm, 100m, Silicone Rubber Insulation
- RS Stock No.:
- 265-3016
- Brand:
- RS PRO
38 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 100 Metre(s)
£82.46
(exc. VAT)
£98.95
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | £82.46 | £0.825 |
| 5 - 9 | £77.50 | £0.775 |
| 10 + | £74.20 | £0.742 |
| *price indicative | ||
- RS Stock No.:
- 265-3016
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- TR
Product Details
RS PRO Harsh Environment Wire - Silicone Rubber
Brought to you by RS PRO, Tinned copper conductors covered with 0.8 mm wall thickness silicone rubber to BS 6195 table 4. These cables will satisfy a wide number of applications related to medical, electronic or electrical equipment which may be operated in environmental conditions. Perfect in situations where ozone, corona discharge, radiation, heat, weathering or the normally adverse effects of a wide range of oils, solvents, etc, may be encountered. All models are highly reliable and excellent quality.
Features and Benefits
• Tinned Copper
• Silicone rubber insulation
• Various wire sizes
• 0.8 mm wall thickness
• Silicone rubber insulation
• Various wire sizes
• 0.8 mm wall thickness
What is harsh environment wire?
Defined by its name, harsh environment wire is cable suitable for less than friendly environments. Typically used as hook up wire, each reel performs to an optimum level within harsher areas. High temperature can be a massive threat in terms of electronics, causing all kinds of health and safety risks. These RS PRO cables provide excellent resistance to such problems.
Where is harsh environment wire used?
Any electronic devices situated within harsh environments would benefit from this type of wire. Laboratories would be be a good example, as they are areas which could have toxic and potentially damaging gasses that interfere with wires. As as example, some areas using these cables would be:
• Construction sites
• Car engines
• Aeroplanes
• Petrol stations
• Construction sites
• Car engines
• Aeroplanes
• Petrol stations
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 1 mm² |
| Sheath Colour | Red |
| Cable Shape | Single Core |
| Core Strands | 32/0.2 mm |
| Length | 100m |
| Insulation Material | Silicone Rubber |
| Voltage Rating | 500 V |
| Outer Diameter | 2.5mm |
| Minimum Operating Temperature | -60°C |
| Maximum Operating Temperature | +180°C |
| Conductor Material | Bare Copper |
| Wire Style | BS6195 |
| Cable Type | Harsh Environment |
| Insulation Wall Thickness | 0.8mm |
| Size of Strands | 0.2 mm |
| Resistant To | Corona Discharge, Heat, Oils, Ozone, Radiation, Solvents, Weathering |
| Number of Strands | 32 |
