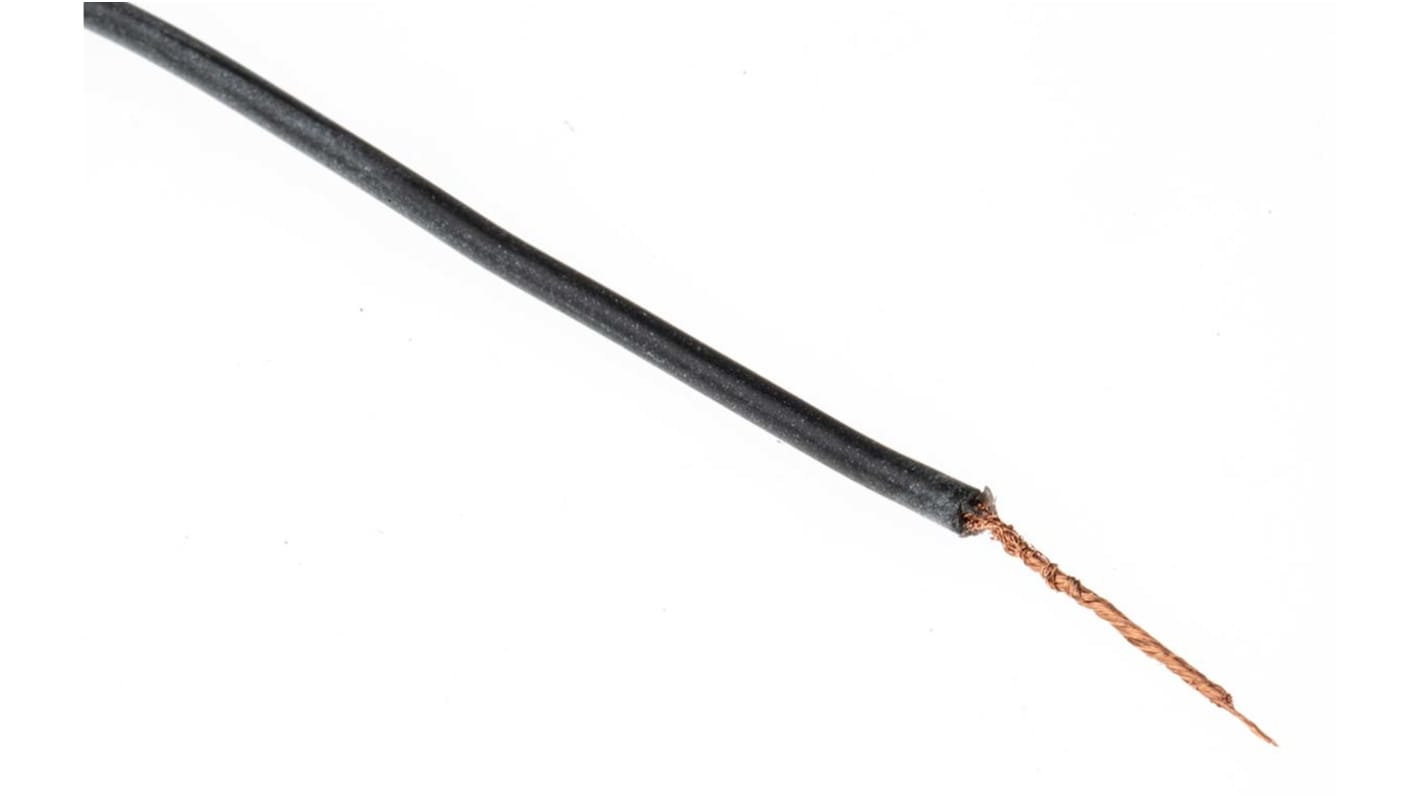

Hew Heinz Eilentropp SIFF Series Black 0.52 mm² Hook Up Wire, 20 AWG, 270/0.05 mm, 100m, Silicone Insulation
- RS Stock No.:
- 222-4292
- Brand:
- Hew Heinz Eilentropp
Subtotal (1 reel of 100 metres)*
£282.14
(exc. VAT)
£338.57
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 24 November 2025
- Plus 4 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £282.14 | £2.821 |
*price indicative
- RS Stock No.:
- 222-4292
- Brand:
- Hew Heinz Eilentropp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hew Heinz Eilentropp | |
| Cross Sectional Area | 0.52 mm² | |
| Sheath Colour | Black | |
| American Wire Gauge | 20 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 270/0.05 mm | |
| Length | 100m | |
| Insulation Material | Silicone | |
| Voltage Rating | 1 kV | |
| Outer Diameter | 2.6mm | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | +180°C | |
| Conductor Material | Copper | |
| Series | SIFF | |
| Insulation Wall Thickness | 0.8mm | |
| Number of Strands | 270 | |
| Size of Strands | 0.05 mm | |
Select all | ||
|---|---|---|
Brand Hew Heinz Eilentropp | ||
Cross Sectional Area 0.52 mm² | ||
Sheath Colour Black | ||
American Wire Gauge 20 AWG | ||
Cable Shape Single Core | ||
Core Strands 270/0.05 mm | ||
Length 100m | ||
Insulation Material Silicone | ||
Voltage Rating 1 kV | ||
Outer Diameter 2.6mm | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +180°C | ||
Conductor Material Copper | ||
Series SIFF | ||
Insulation Wall Thickness 0.8mm | ||
Number of Strands 270 | ||
Size of Strands 0.05 mm | ||
- COO (Country of Origin):
- DE
SIFF silicone conductor strand, 0.5 mm²
Silicone-insulated stranded cables
Notch-resistant insulation
Highly twisted copper stranded conductors
Particularly well-suited to test leads
High flexibility, maintained within a temperature range of -50°C → +180°C
Highly resistant to contact with soldering irons
Notch-resistant insulation
Highly twisted copper stranded conductors
Particularly well-suited to test leads
High flexibility, maintained within a temperature range of -50°C → +180°C
Highly resistant to contact with soldering irons
